15-835 TANK RINSING SYSTEM

REF#PART#

DESCRIPTION

QUANTITY

1

16-961

1" Adapter

1

2

16-962

1" Coupler

1

3

16-864

1" FTP Elbow

1

4

16-158

Close Nipple

1

5

16-150

Double Thread Fitting

1

6

16-172

4" Nipple

1

7

15-834

Tank Rinsing Nozzle

1

8

16-163

Reducer Bushing

1

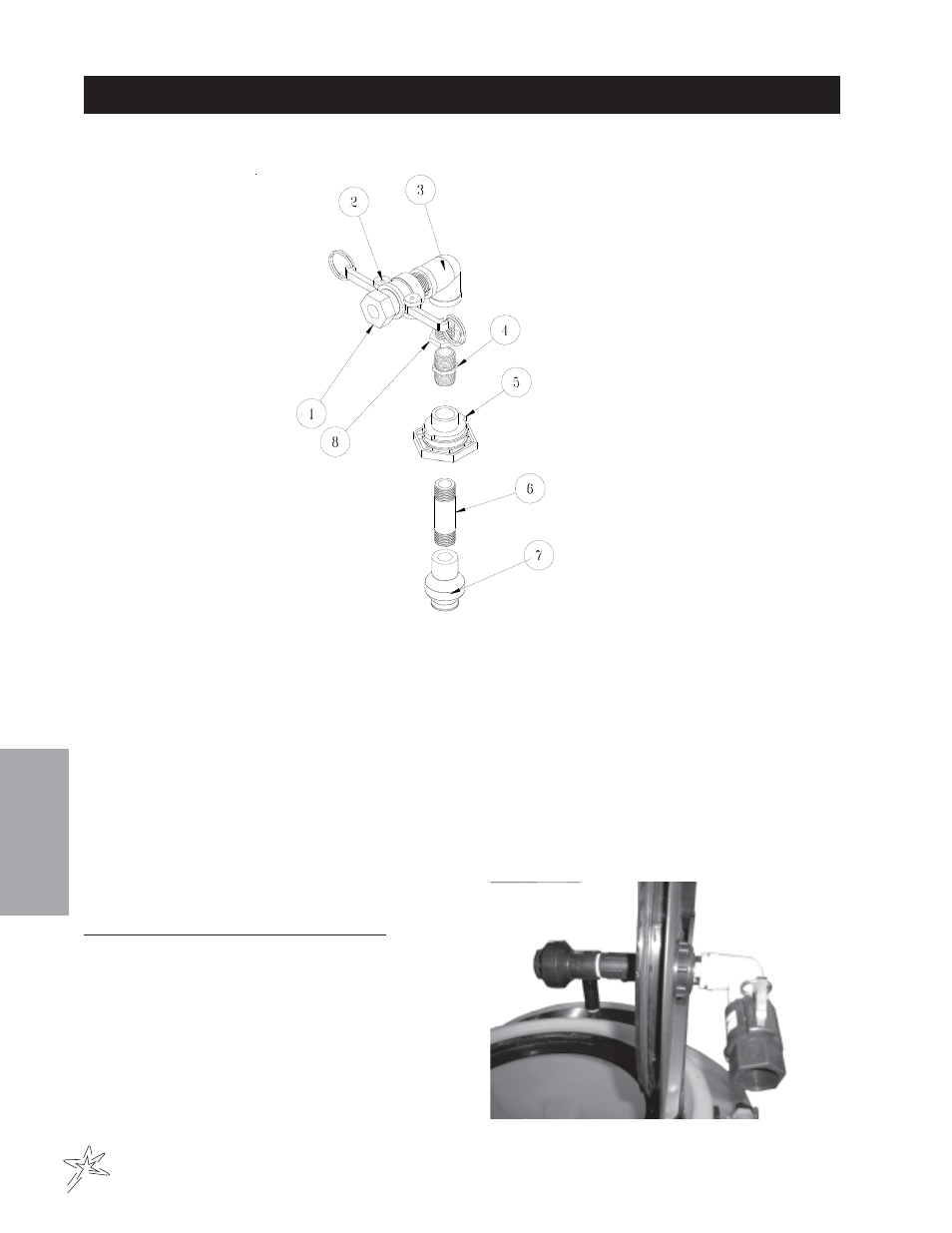

Drill 1-3/4" hole 5" from outside edge of cover.

Install Tank Rinsing kit as shown, with the Double
Thread Fitting (Ref 5) going into the cover.

Basket Must be removed During Use.

33-541 triple Nozzle Kit for 15' Booms
