14
Diagrams

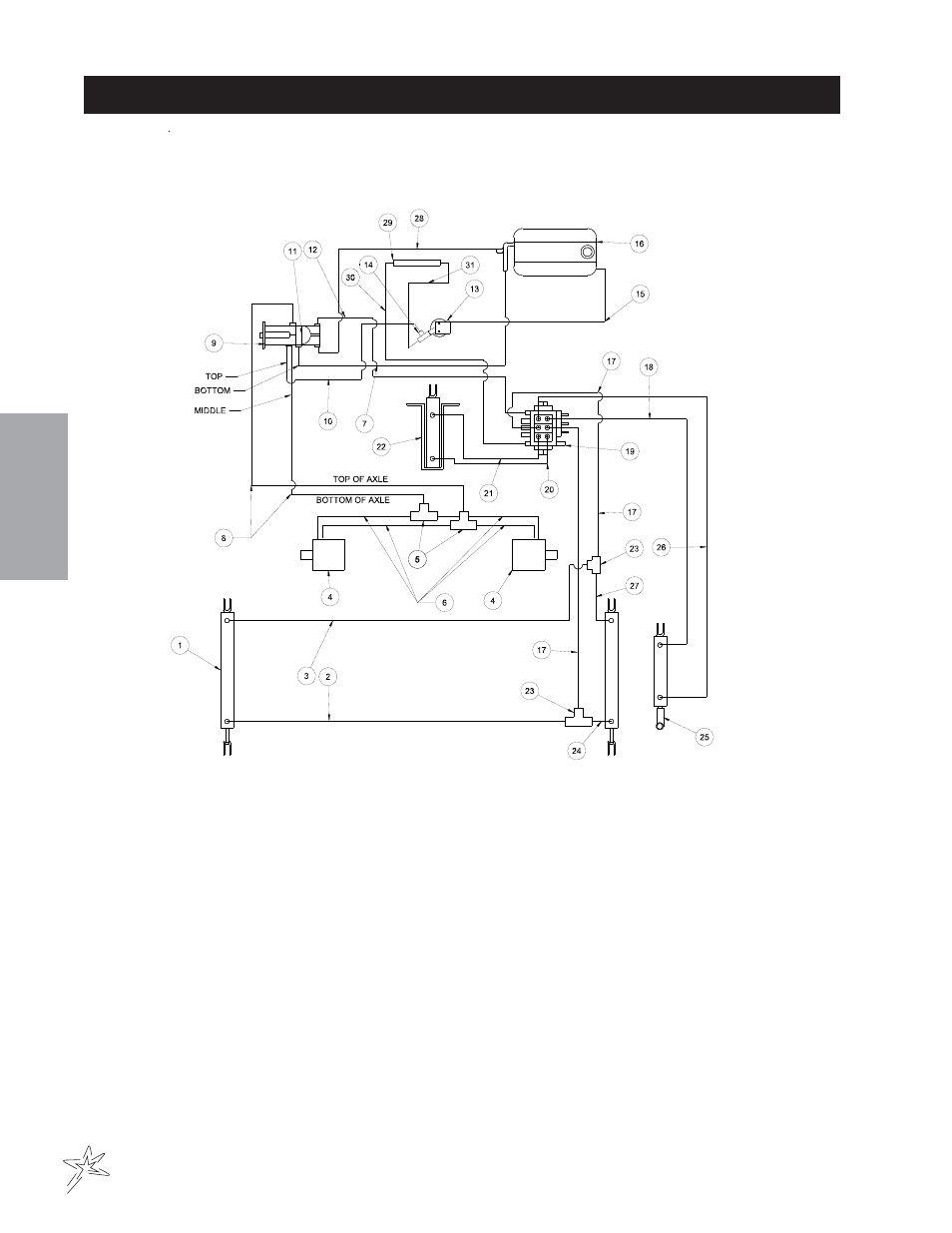

HYDRAULIC DIAGRAM
76-023 Hydraulic Valve
Relief Valve set at 2000 psi (137.93 bar)
76-398 Hydrostatic Pump
Displacement Variable to 1.44 in 3 /R (23.6 cm 3 /R)
22.44 gpm (84.94 lpm) at 3600 rpm
Max Operating Speed 3600 rpm
Rated Pressure 3000 psi (206.8 bar)
Max Pressure 5000 psi (344.7 bar)
Max Inlet Vacuum 6 in Hg (.203 bar)
Max Inlet Temperature 225°F (107°C)
Max Allowable Case Pressure 25 psi (1.72 bar)
76-197 Gear Pump
Displacement .40 in 3 /R (6.6 cm 3 /R) 6.23 gpm (25.39 lpm)
