27
Parts

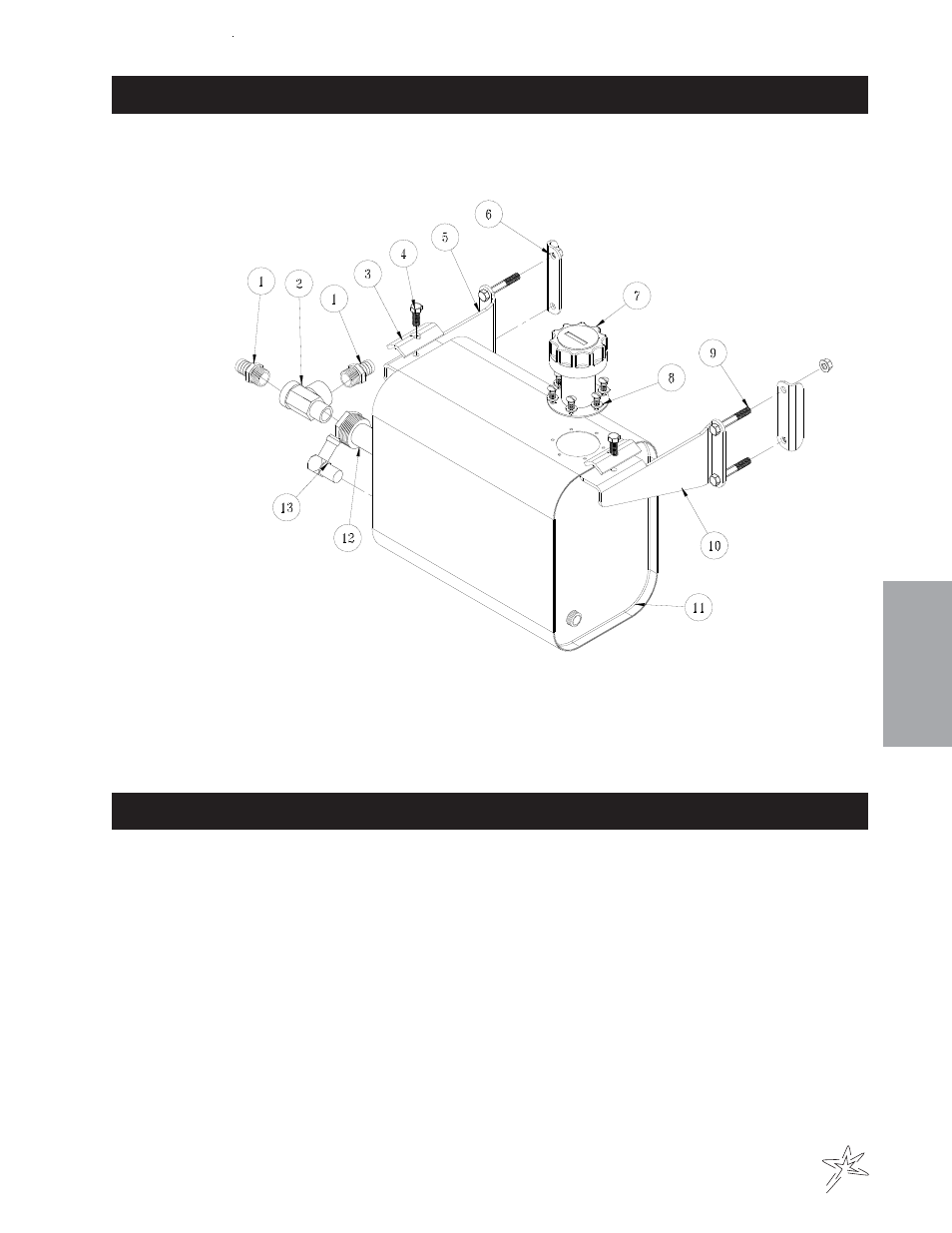

OIL TANK DRAWING
OIL TANK PARTS LIST
REF# PART# DESCRIPTION QUANTITY
1 18-249 Barb Fitting 2
2 18-093 Straight Tee 1
3 75-792 Tank Hold Down 2
4 HB-516-18-125 Bolt 5 /
16
- 18 x 1 1 /
4
2
HNFL-516-18 Flange Lock Nut 5 /
16
- 18 2
5 32-049 LH Tank Mount 1
6 32-050 Tank Mount Bracket 2
7 13-747 Filler Breather 1
8 13-586-03 Filler Neck 1
9 HB-38-16-250 Bolt 3 /
8
- 16 x 2 1 /
2
4
HNFL-38-16 Flange Lock Nut 3 /
8
- 16 4
10 32-048 RH Tank Mount 1
11 60-473 Oil Tank 1
12 60-213 Strainer 1
13 23-142 Connector 1
