for Surround
Confi guration—Dim Level, Remote Mute All, Remote Dim,
and Remote Auxiliary Output On/Off

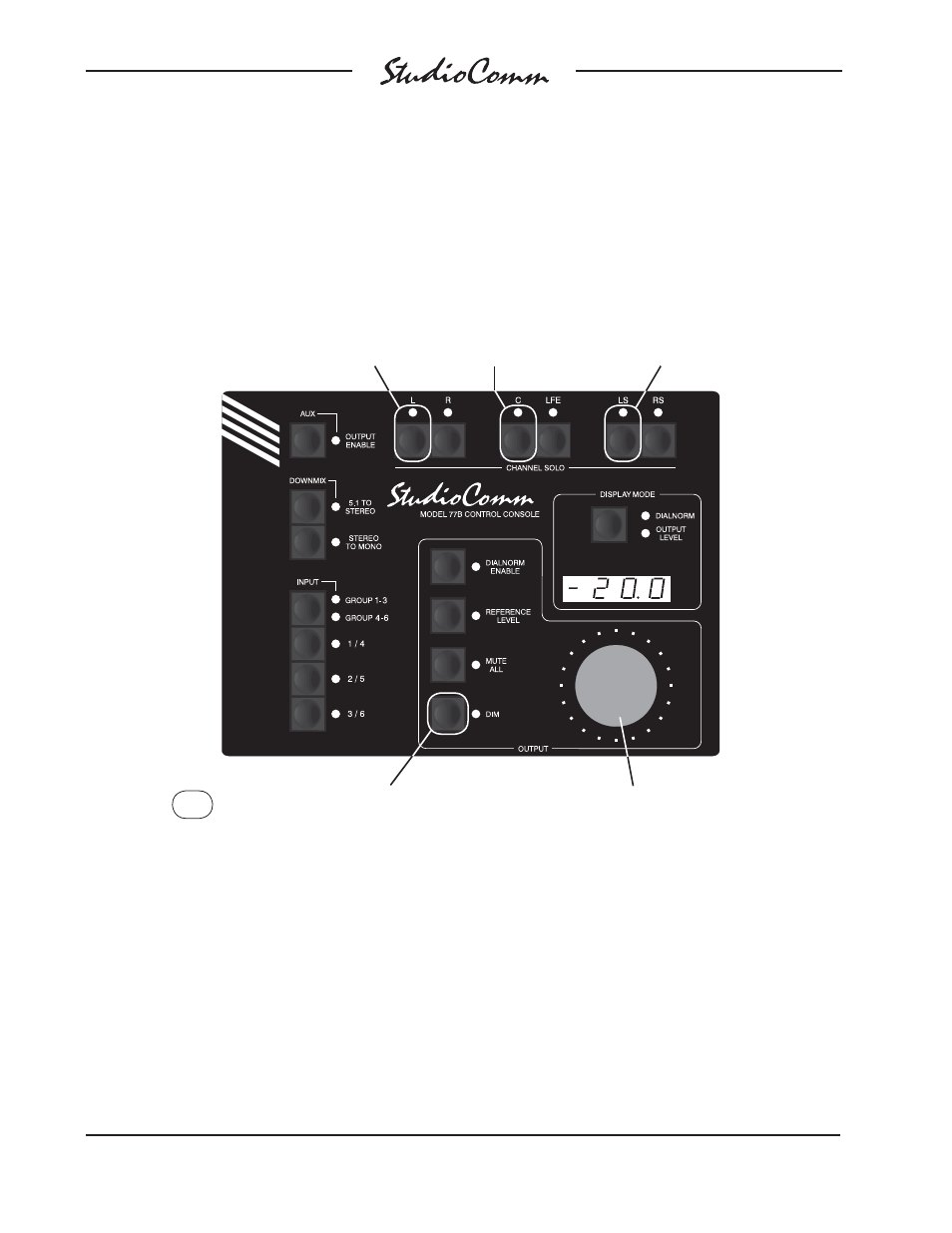

Press and hold the Dim button to display
and select the dim level, remote mute all,
remote dim, and remote auxiliary output
on/off confi gurations.
Default: –20.0 dB dim level.
Remote mute all disabled.
Remote dim disabled.
Remote auxiliary output on/off disabled.
When the Dim button is pressed, use the level
control to adjust the dim level. Available dim
levels are –10.0 dB, –15.0 dB, –20.0 dB, and
–25.0 dB.
This LED displays the confi gura-
tion of remote mute all. LED not lit
means remote mute all is disabled;
LED lit means enabled. Use the
button to change the confi guration.
This LED displays the
confi guration of remote
dim. LED not lit means
remote dim is disabled;
LED lit means enabled.
Use the button to change
the confi guration.
This LED displays the confi guration
of remote auxiliary output on/off.
LED not lit means remote auxiliary
output on/off is disabled; LED lit
means enabled. Use the button to
change the confi guration.
