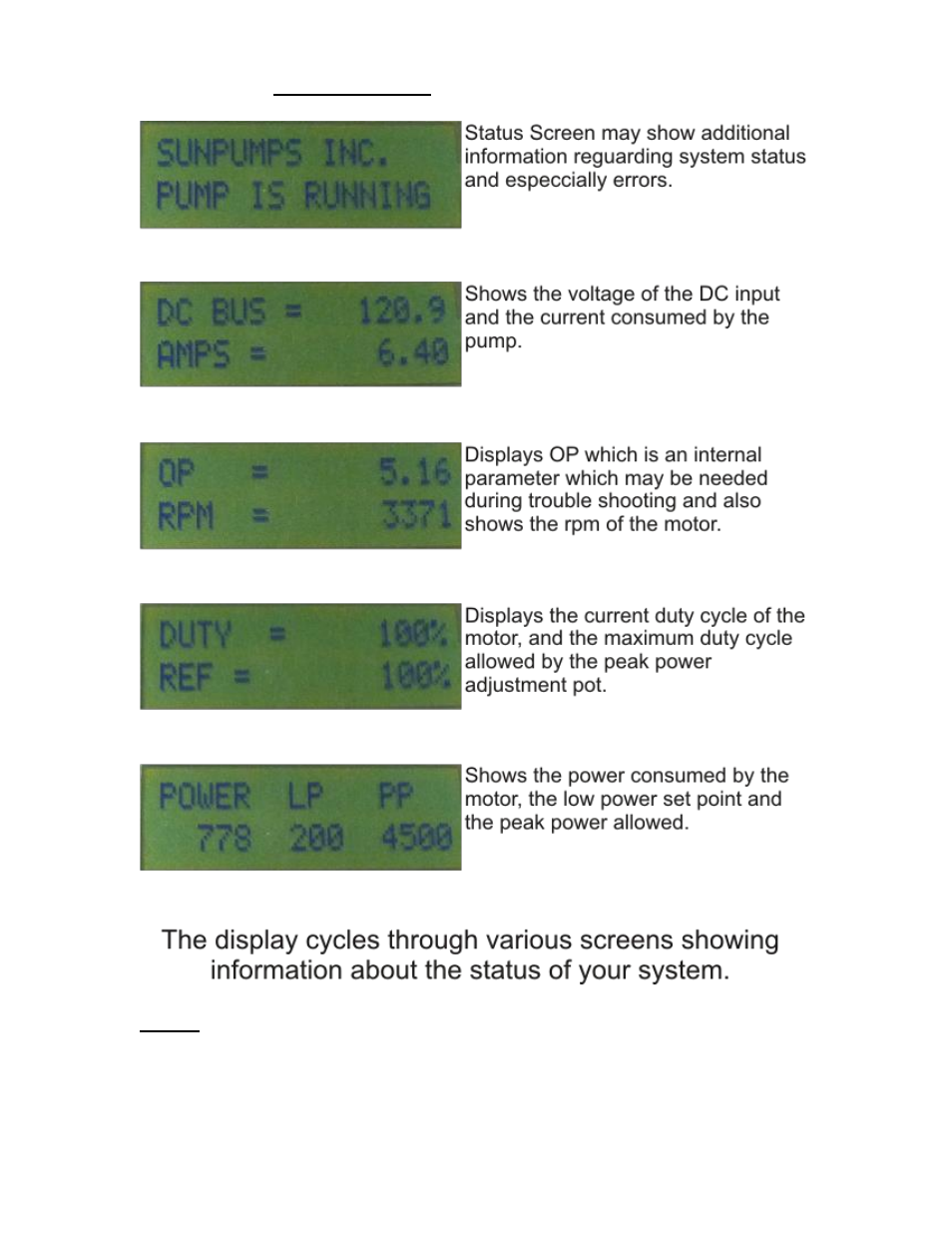

Figure 7 Display Screens (For PCC Series Controller Only)

NOTE: Dip switch 7 will freeze the display on the current screen. If the system is
powered up with switch 7 on, the display will only show the SUNPUMPS, INC screen.
Turn off switch 7 to unfreeze the display.
