Thermon ZP-L-WP Terminator - Manual (Page 3)

1.
2
-1
.
15 14
13
12 16

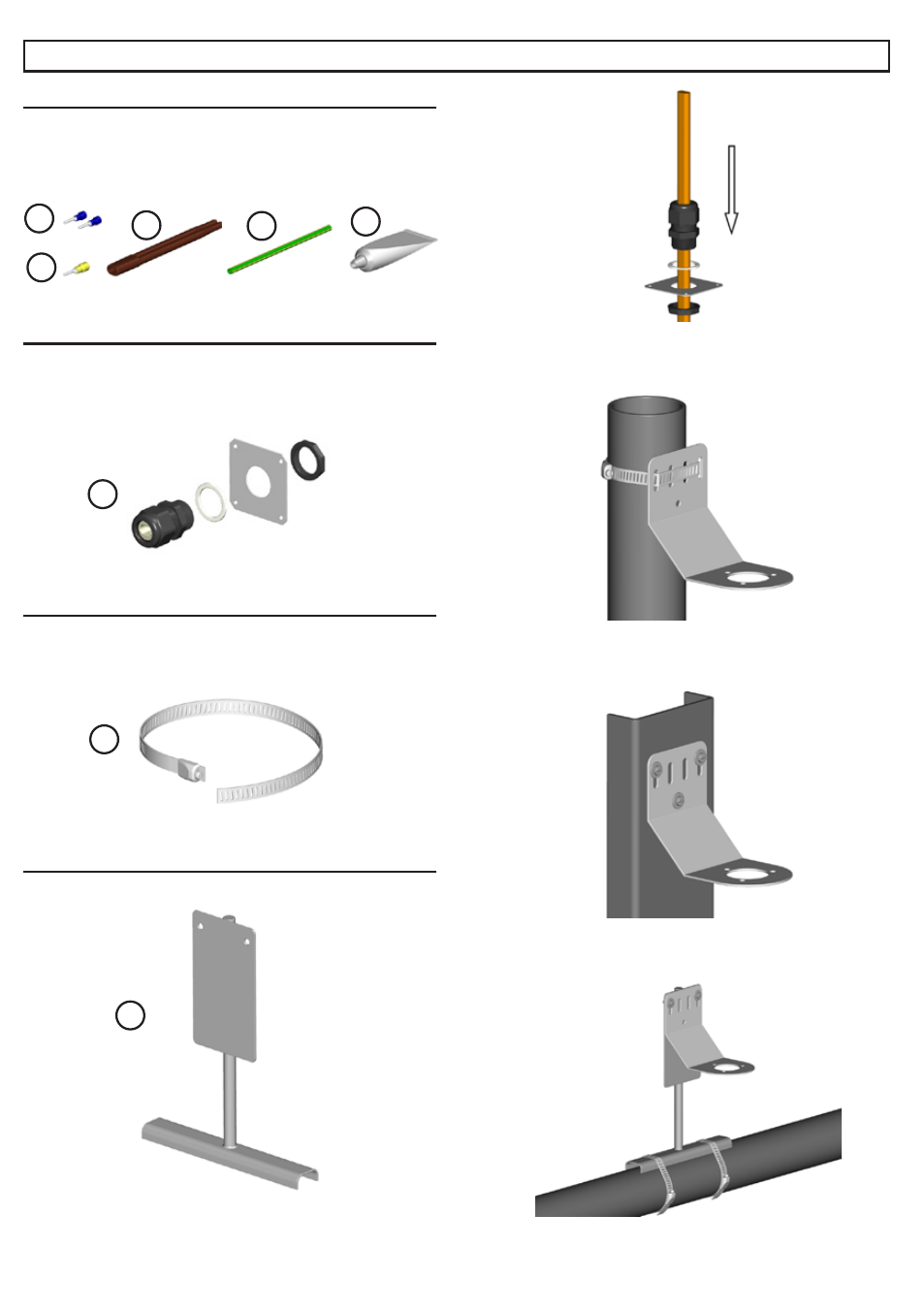

PETK power termination components (per cable)
- order separately
PETK-1: for RSX, TSX, VSX
PETK-2: for BSX, KSX, HTSX
PETK-3: for HPT (up to 200° C)
PETK-4: for HPT ( up to 260° C)
Slide appropriate IEK insulation entry kit components onto
cable.
Mounting Method 1: Secure wall mount bracket to mounting
surface using pipe band.
Kit Contents Installation Instructions 2
B-type banding
- order separately
B-4: for pipes up to 4”
B-10: for pipes up to 10”
B-21: for pipes up to 21”
18
17
IEK insulation entry kit (per cable)
- order separately
IEK-SXL: for RSX, TSX, VSX
IEK-SXM: for BSX
IEK-SXS: for KSX, HTSX
IEK-HPT: for HPT
2
-2
.
Mounting Method 2: Secure wall mount bracket to mounting
surface using screws, washers, and nuts (user supplied).
2
-3
.
Mounting Method 3: Secure XP-1 mounting bracket to pipe
using pipe bands. Secure wall mount bracket to XP-1 using
screws, washers, and nuts (user supplied).
XP-1-140X80 Stainless Steel Mounting Bracket
- order separately
19
