2
Tools Required . . .
Contents . . .
1
HT Heating Module
INSTALLATION PROCEDURES

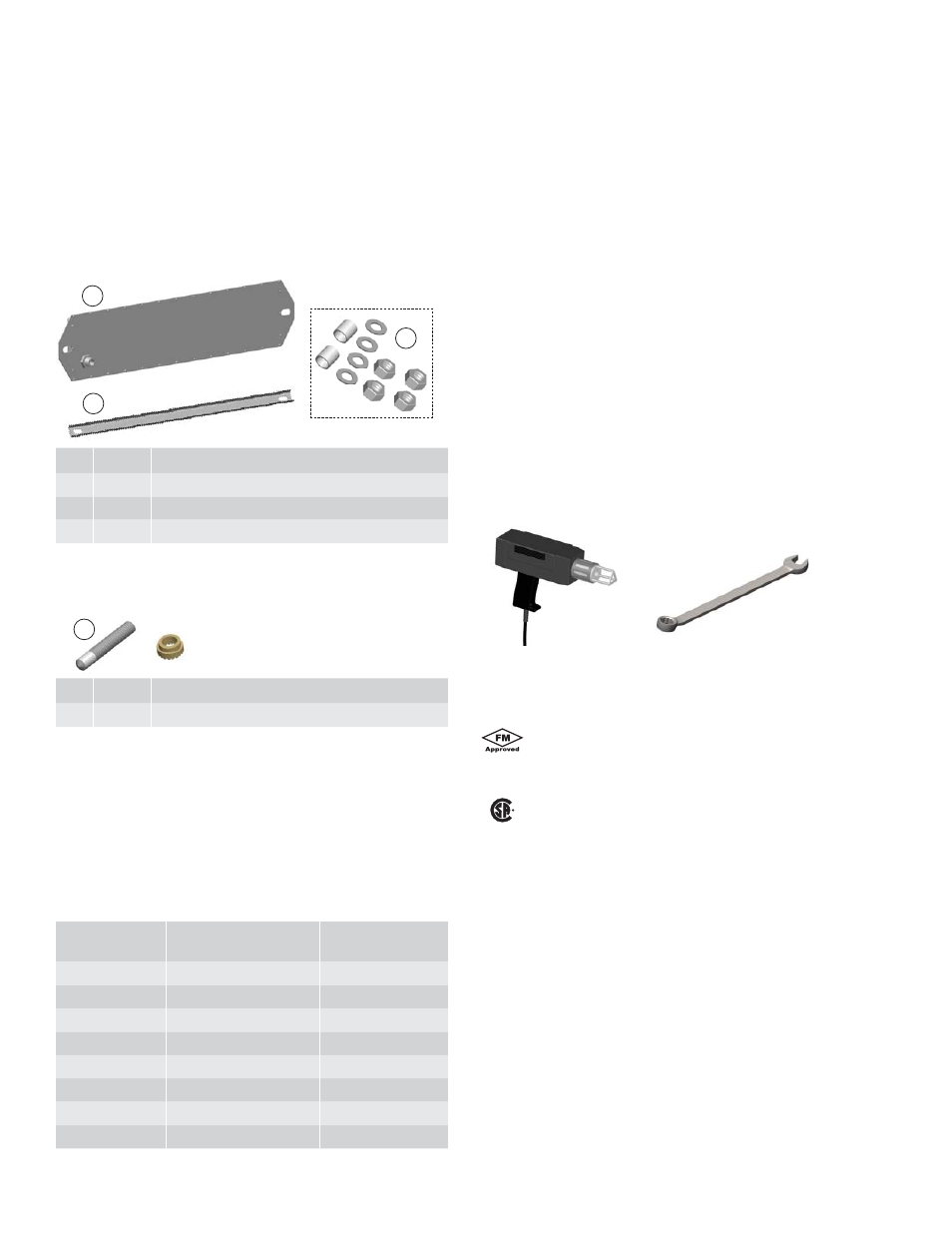

Item Quantity Description
1 1 Heating Module
2 1 Reinforcing Channel
3 1 Spacer Kit
Warnings . . .
• Multiple modules can be energized from the same circuit
breaker based on operating voltage and current draw. The
current draw and/or breaker sizing should be based on the
National Electrical Code, Canadian Electrical Code or any other
applicable code.
• To minimize the potential for arcing and ground-fault protection.
The National Electrical Code (NEC) and Canadian Electrical
Code (CEC) require ground-fault protection of equipment for
each branch circuit supplying electric heat tracing.
• Component approvals and performance ratings are based on
the use of Thermon specifi ed parts only.
• De-energize all power sources before connecting heaters.
• Individuals installing these products are responsible for
complying with all applicable safety and health guidelines.
Proper Personal Protective Equipment (PPE) should be utilized
during installation. Contact Thermon if you have any additional
questions.
2
4
3
Factory Mutual Research
Ordinary Locations
Hazardous (Classifi ed) Locations
Class II, Division 2, Groups F & G
Canadian Standards Association
Ordinary Locations
Hazardous (Classifi ed) Locations
Class II, Division 2, Groups E, F, & G
Certifi cations/Approvals . . .
Receiving, Storing and Handling . . .
1. Inspect materials for damage incurred during shipping.
2. Report damages to the carrier for settlement.
3. Identify parts against the packing list to ensure the proper
type and quantity has been received.
4. Store in a dry indoor location.
19mm (0.75") Wrench
Available HT Module Sizes 1 . . .
Catalog Number
Base Module
Module Dimensions
in (cm)
Stud Spacing
in (cm)
612 6 x 16.1 (15 x 40) 14.1 (36)
624 6 x 27.6 (15 x 70) 25.6 (65)
636 6 x 39.1 (15 x 99) 37.1 (94)
648 6 x 50.6 (15 x 129) 48.6 (123)
212 12 x 16.1 (30 x 40) 14.1 (36)
224 12 x 27.6 (30 x 70) 25.6 (65)
236 12 x 39.1 (30 x 99) 37.1 (94)
248 12 x 50.6 (30 x 129) 48.6 (123)
Stud Welder
Standard Mounting Equipment . . .
Each HT Heating Module is shipped with a reinforcing channel,
spacers, 1/2" nuts and 1/2" washers. Mounting studs and
installation templates are supplied separately to facilitate
marking heater and mounting stud locations prior to installation
of heaters.
Item Quantity Description
4 2 1/2" Stud with Ferrule
Mounting Studs:
(Order Separately for each Heating Module to be fabricated.)
Notes:
1. Catalog numbers shown are partial numbers. Delivered product
will have prefi x and suffi x designations to identify complete
catalog number. Contact Thermon for design assistance.
