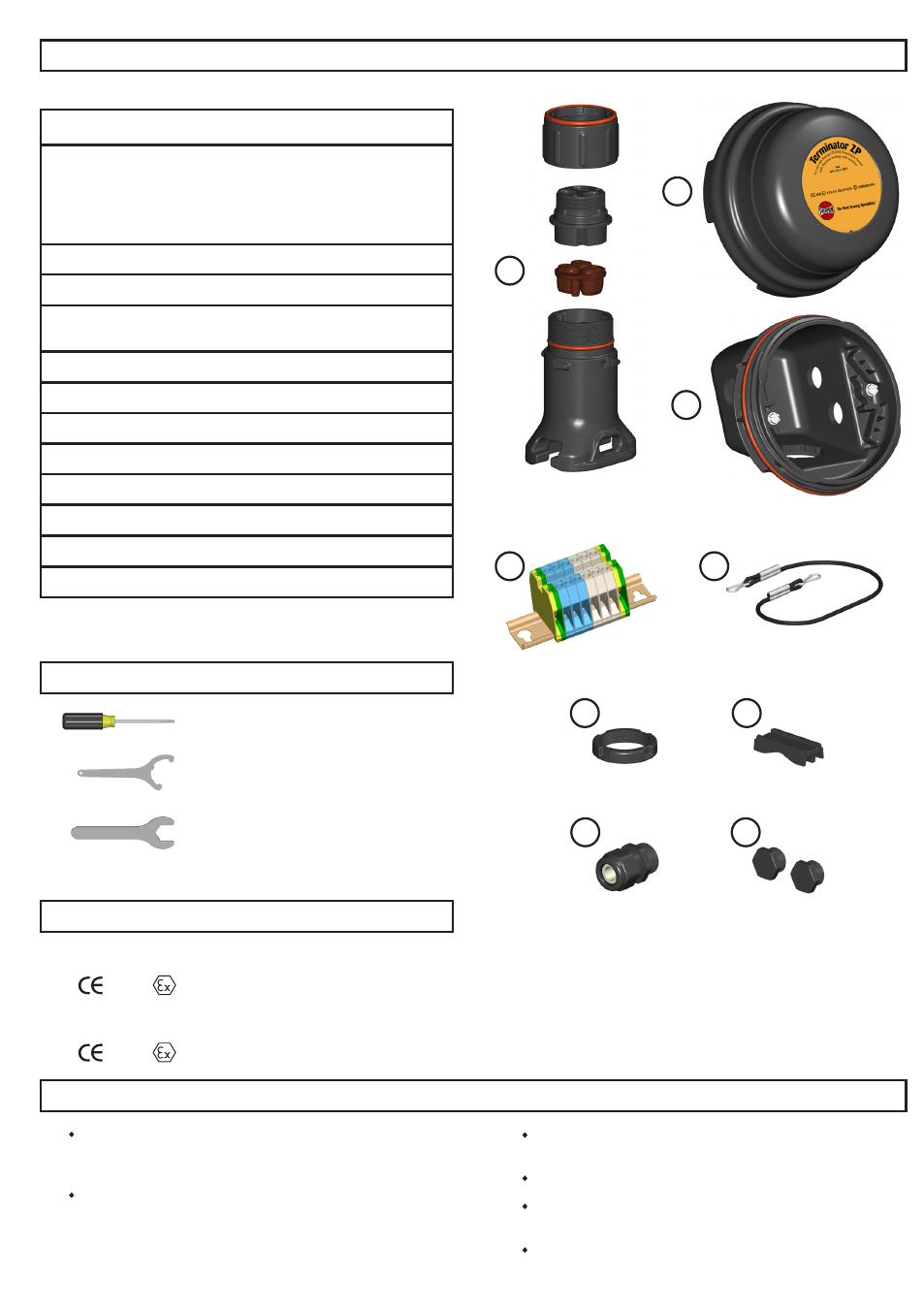

Kit Contents 1
Due to the risk of electrical shock, arcing and fire caused by
product damage or improper usage, installation or maintenance,
a ground-fault protection device is required.
Installation must comply with Thermon requirements and be
installed in accordance with the regulations as per the norm EN
IEC 60079-14 for hazardous areas (where applicable), or any
other applicable national and local codes.
Component approvals and performance ratings are based on the
use of Thermon specified parts only.
De-energize all power sources before opening enclosure.
Keep temperature sensor and kit components dry before and
during installation.
Minimum bending radius of temperature sensor is 30 mm.
Measuring tip (15 mm in length) should not be bent.
Warnings
1
2
3
4 5
6 7
8 9
2 1 Junction Box Lid
Item Qty Description
Support Cap w/ O-ring
Threaded Grommet Compressor
Grommet
Support Base w/ O-ring
1 1 Expediter Assembly
3 1 Junction Box Base w/ O-ring
4 1 Terminal Blocks w/ DIN Rail
(Refer to terminal specifications for maximum allowable wire size)
5 1 Junction Box Lid Cord
6 1 Nut
7 1 Banding Guide
8 1 Power Gland
9 2 Blind Plugs
10 1 to 2 PTD-100 Temperature Sensor
11 1 Sealing Washer
12 2 Banding
0539 II 2G Ex d IIC DEMKO 08 ATEX 0729347U
Temperature Sensor . . .
IP66 48°C ≤ Ta ≤ + 100°C
Certifications/Approvals
Tools Required
Terminator-LN-Tool
(order separately)
3 mm
8 mm
19 mm
22 mm
23 mm
29 mm
33 mm
1725 II 2 G&D Ex e II T4-T6 DEMKO 01ATEX0021995
Enclosure . . .
IP66 -60°C ≤ Ta ≤ + 55°C
