15
Model 206B-FF, Flange Facer
92-0214 : Rev. 920331
Remove the three Tool Holders from the Model 206B BEVELMASTER TM .
Mount the Model 206B-FF Flange Facer to the 206B BEVELMASTER TM and attach
with the five Mounting Screws provided.

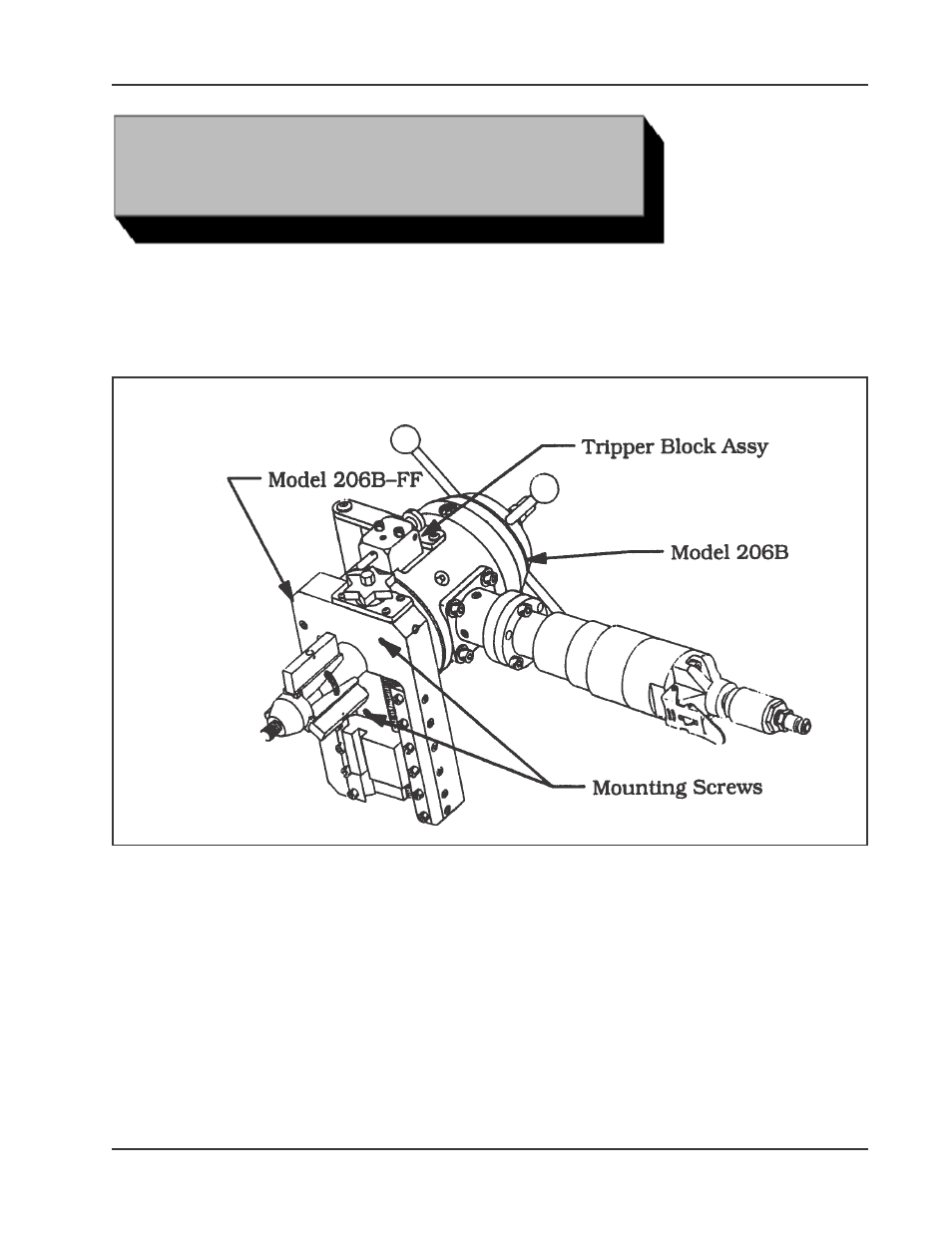

Mounting the Model 206B-FF onto the Model 206B
ATTACHING THE MODEL 206B-FF
TO THE MODEL 206B
Attach the two Tripper Block Assemblies to the side of the 206B BEVELMASTER TM .
