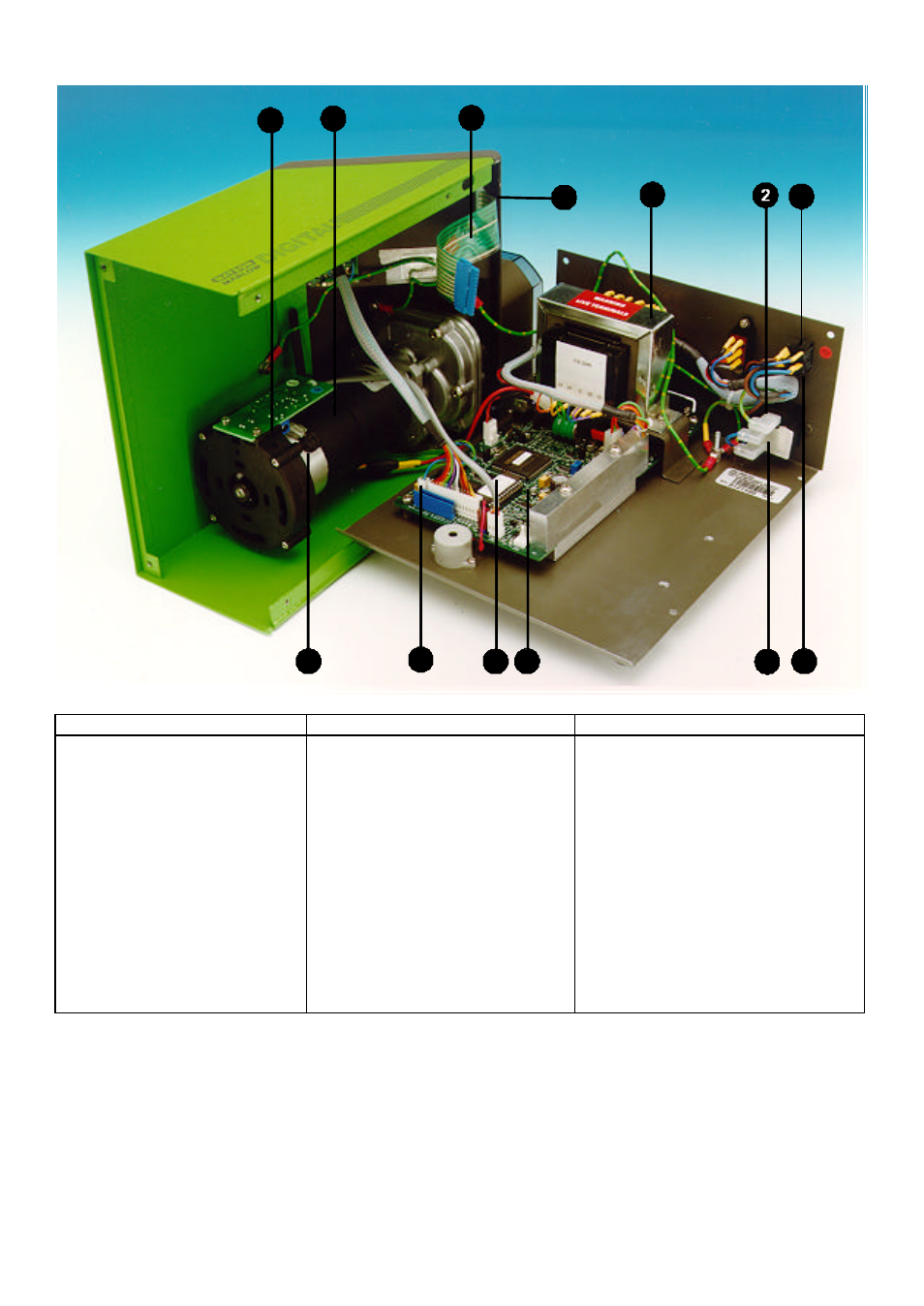

Drive spares

5

6

4

3

9

8

7

10 11

12

13

1

5

6

4

3

9

8

7

10 11

12

13

1

Number

Spare

Description

1

SW 0147

On/off switch

2

FS 0003

Fuse

3

TF0031

Transformer

4

MN0565B

Switch panel membrane

5

MNA0476A

PCB display and harness

6

MNA0377A

Motor 220rpm

6

MNA0525A

Motor 350rpm

7

MNA0500A

PCB tacho and harness

8

BM 0014 (2 off)

Motor brush

9

MNA0346A

Tacho disc assembly

10

MNA 0465A

ROM

11

MNA0651A

Speed control PCB (excluding ROM)

12

US 0045

Mains connector

13

SW 0086

Voltage selector switch
