12. WCC III INSTALLATION

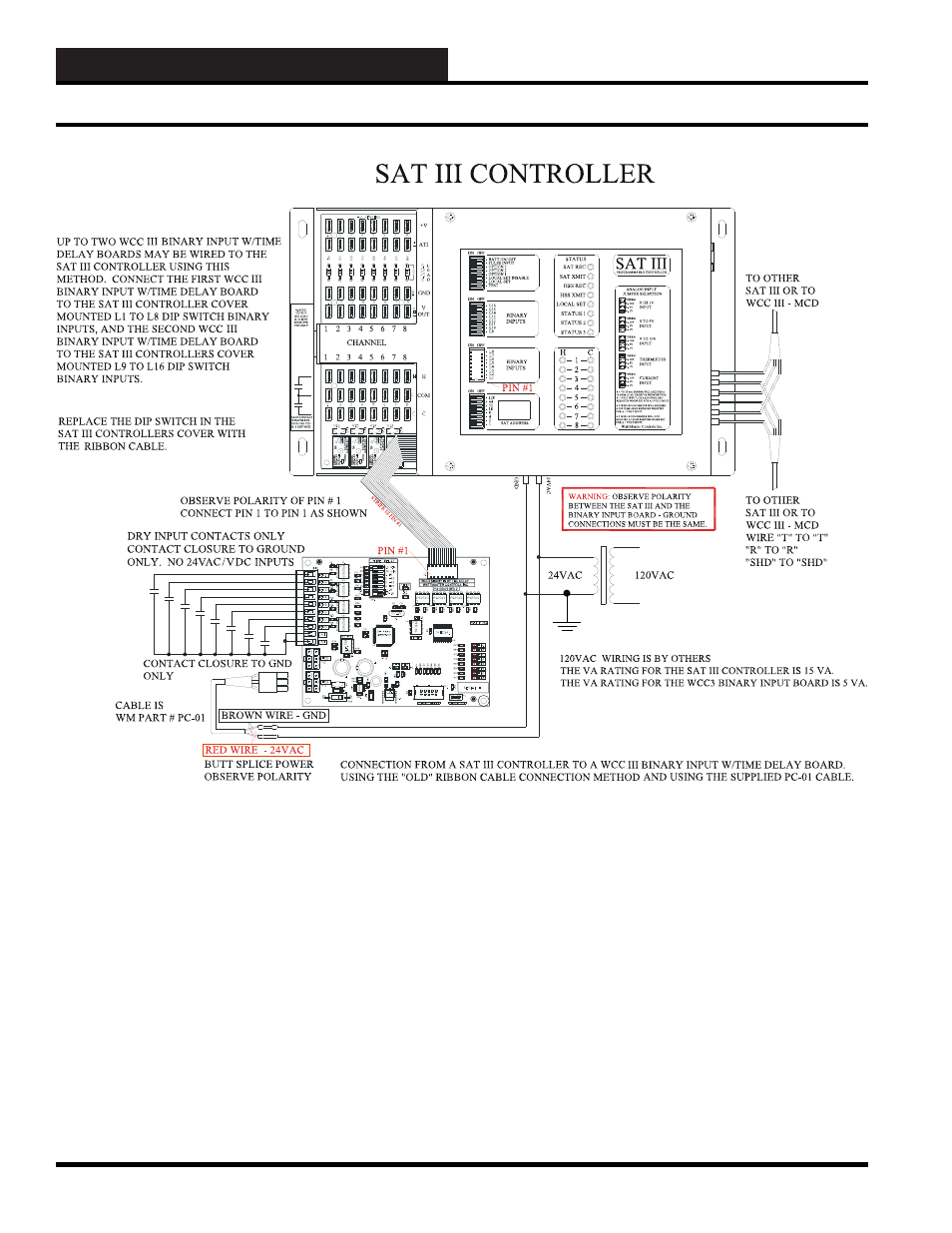

Figure 12-27: The WCC III Binary Input with Time Delay board typical wiring diagram – Alternative “old” wiring
connection method with the HSS power and ground pigtail
WCC III Binary Input with Time Delay Board Old Wiring Method
