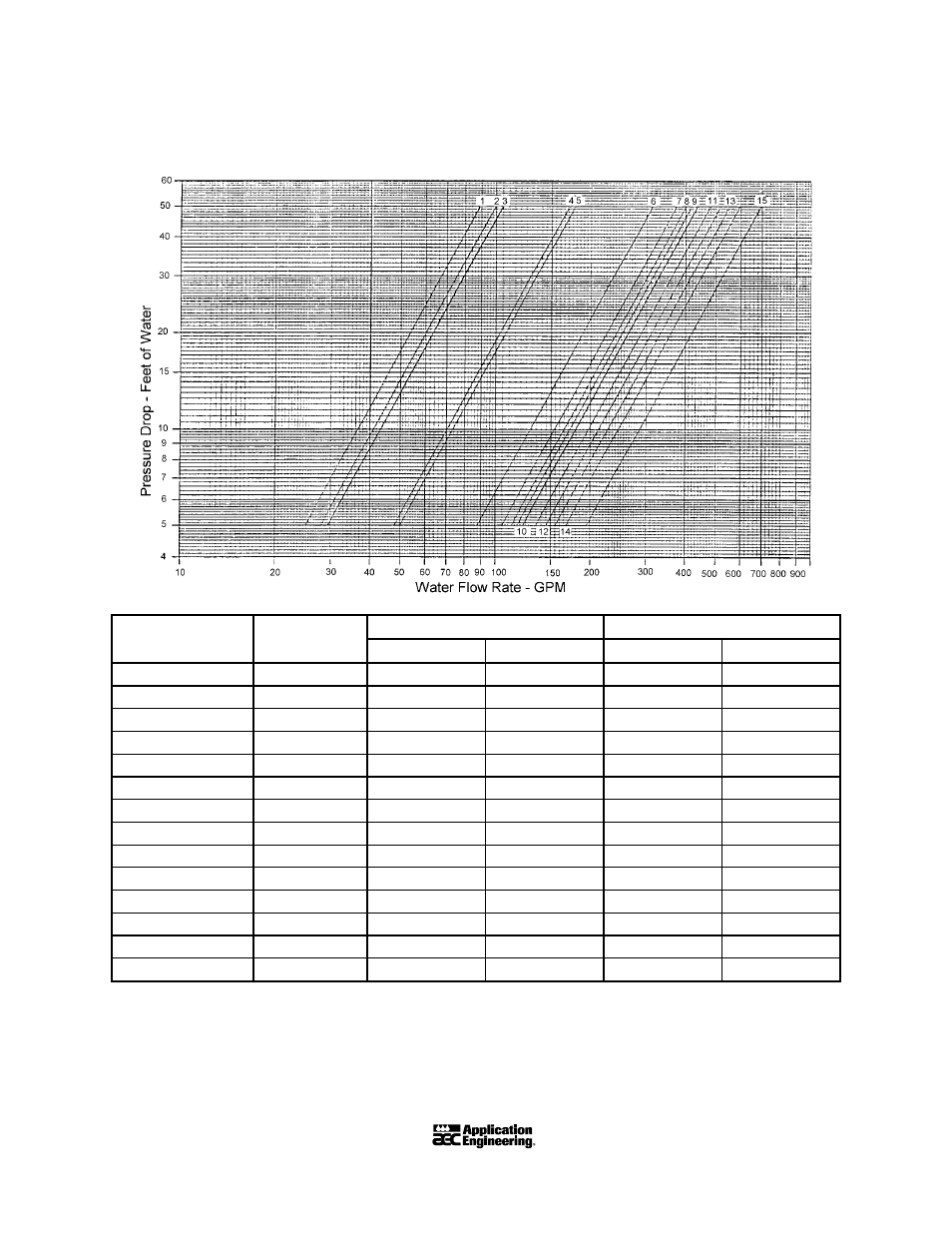

Figure 18
ACOA Evaporator Pressure Drop Curves
Chiller Curve Minimum flow rate Maximum flow rate
model number gpm lpm gpm lpm
ACOA15 1 27 103 70 265
ACOA20 2 29 110 97 367
ACOA25 3 37 140 104 393
ACOA30 4 50 190 168 635
ACOA35 5 70 265 232 878
ACOA45 6 78 296 315 1,192
ACOA55 6 86 326 315 1,192
ACOA70 7 94 356 377 1,426
ACOA80 9 101 383 420 1,589
ACOA90 11 158 598 444 1,680
ACOA100 12 155 587 444 1,680
ACOA110 13 174 659 553 2,093
ACOA125 13 174 659 553 2,093
ACOA135 15 236 894 693 2,623
