NEC Series Water- and Air-Cooled Central Chillers

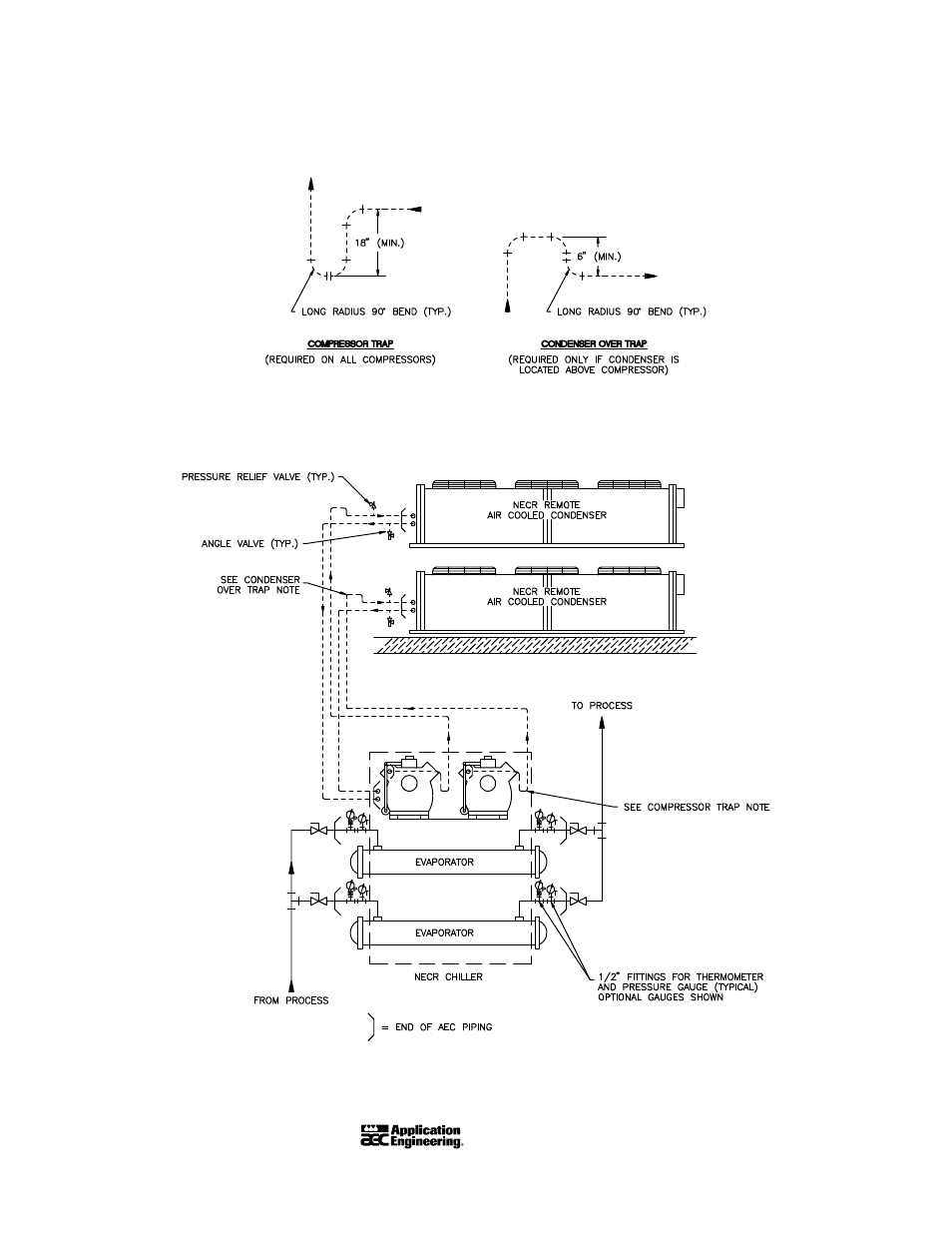

Figure 10
Typical Remote Air-Cooled Condenser Piping Installation
Note: Consult a qualified refrigeration technician to design a proper remote condenser piping
system tailored to your installation.
