Thank you for purchasing the Airaid Intake System. Contact Airaid @ (800) 498-6951 8:00 AM - 5:00 PM MST weekdays for questions regarding fit or instructions that are not clear to
you. Your Airaid Intake System was carefully inspected and packaged. Check that no parts are missing, or were damaged during shipping. If any parts are missing, contact Airaid. The air filter
element is protected from direct exposure to water and debris; care should be taken not to drive through deep water. WATER INGESTION IS THE DRIVERS RESPONSIBILITY! The air filter is
reusable and should be cleaned periodically.

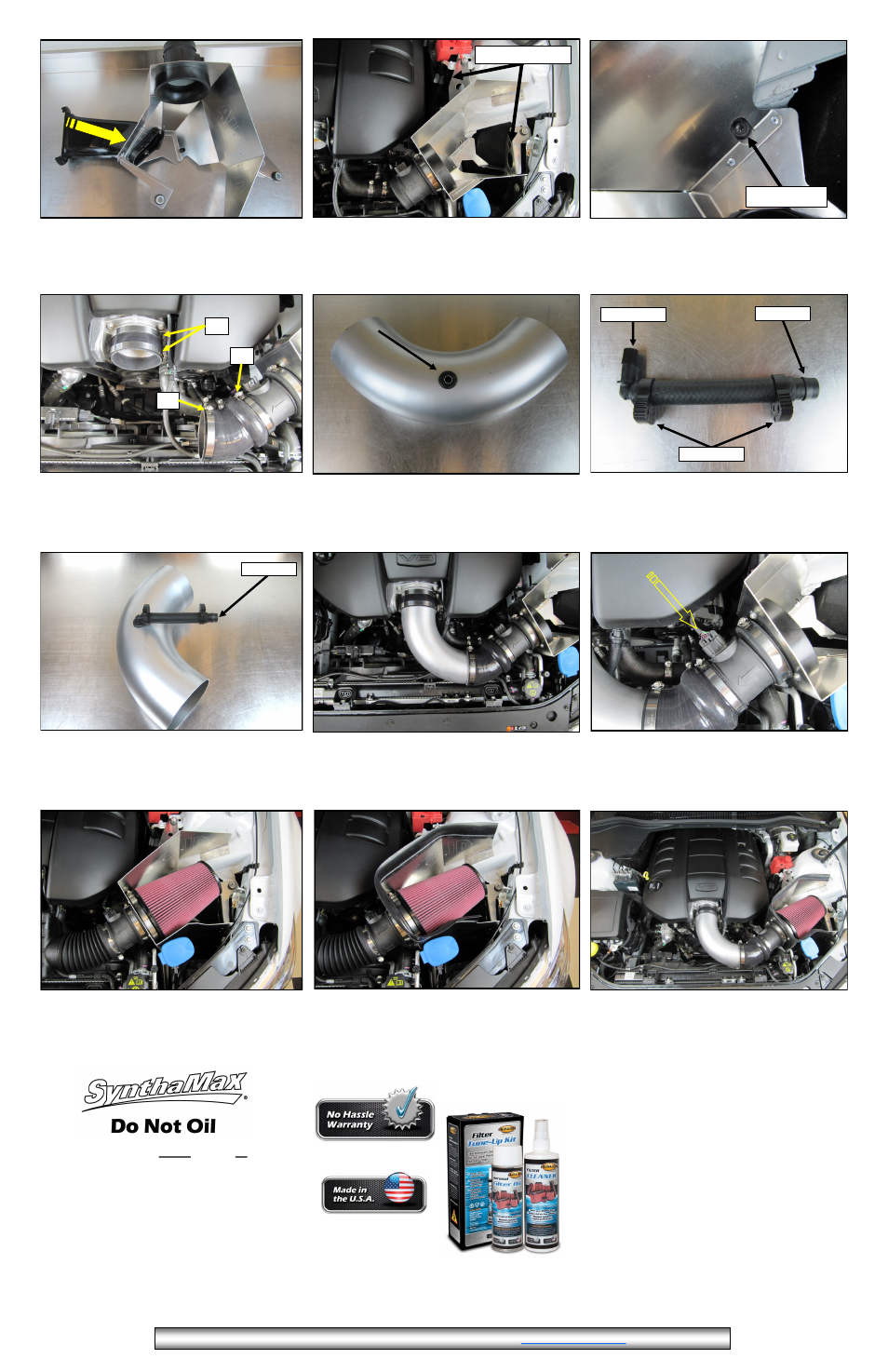

13. Slide the Reducing coupler and # 60 clamps onto
the throttle body with the larger end on the Tube side.
Slide the Hump Hose, #56 and 64 Clamps onto the Air
meter as shown. Leave the Clamps loose for now.
10. Transfer the factory air box scoop into the Air Dam
assembly as shown. When properly installed, a distinct
snap will sound indicating that it has locked firmly in
place.
11. Install the Air Dam assembly into the inner fender
area of the vehicle in the same manner as the OEM air-
box. The grommets and sleeves are to be secured to the
inner fender by re using the 6mm nuts that were removed
in step Three.
12. The bottom of the Air Dam assembly is to be se-
cured using the grommet and post. Reconnect the in-
take tube to the Mass Air Flow meter and reinstall the
battery post cover.
REV.02.10.14
14. Insert the Grommet into the Airaid Intake Tube as
shown.
15. Insert the 90 deg. Barbed Fitting into the PCV
Hose and the PCV Fitting into the other end. Secure
the fittings using the two Speed Clamps.
Synthamax Air Filters do not require oil. Service air
filter as needed by cleaning with common non-
petroleum all-purpose household cleaner and water.
Simple Green®, Formula 409® or equivalent works
great. Apply cleaner to outside of air filter and allow to
soak. Then flush filter clean from the inside out with a
garden hose and repeat steps if necessary. Do not apply
high pressure water or air to clean filter. Allow filter to
air dry and reinstall.
For your Oiled media filter
we suggest using the AIRAID
Filter Tune-Up Kit!
Grommets and Sleeves
Grommet and Post
Double check your work!
Make sure there is no foreign material in the
intake path. Make sure all clamps, hoses,
bolts, and screws are tight. Double check the
hood clearance.
Reconnect the negative battery
cable
.
16. Insert the 90 deg. Barbed Fitting into the Grommet
in the Intake Tube as shown.
17. Slide the Intake tube into the Hump Hose first, then
into the Coupler. Check the positioning of al the compo-
nents. Adjust if necessary and tighten the Clamps.
18. Reconnect the Air Flow Meter and reinstall the
Positive terminal cover removed in step 1.
19. Install the Airaid Premium Filter on to the Filter
Adapter.
20. Install the Weatherstrip onto the top edge of the Air
Dam with the contour rolling away from the Filter.
# 60
# 64
# 56
Barbed Fitting
PCV Fitting
Speed Clamps
PCV Fitting
