Installation Instructions. Read Me!
1. DISCONNECT NEGATIVE (-) BATTERY CABLE.
2. Remove air intake hose assembly.
3. Remove throttle body air intake box and save bolts.
4. Remove (3) bolts from the throttle body.
5. Unclip throttle & cruise cables from manifold and throttle lever.
6. Install power plate using (3) 6mm x 60mm bolts and flat washers (REF. “A”).
7. Assemble cruise and throttle bracket, putting the (2) .636 long spacers on the back side between the bracket and nutplate.
8. Install throttle & cruise cable bracket and tighten bolts (REF. “C”).
9. Install both throttle & cruise cables thru reinforcement ring of throttle cable bracket.
a. Reattach cables to throttle body lever. * 1st cruise cable then throttle cable.
b.
Slide and lock both plastic cable retainers into slot separately.
10. Locate (1) long extension plate using (1) flat head screw to reposition throttle body intake box using saved bolts (REF.
“D” step 3).
11. Locate (1) short extension plate with 5/8” thick spacer using (1) flat head screw to reposition throttle body intake using
saved bolts (REF. “B” step 3).
12. Inspect & Test throttle linkage for full open and closed travel before driving. Some cruise and kickdown cables may re-
quire adjustment. Refer to your vehicles service manual for instruction.
13. Reinstall throttle body air intake assembly using (step 2) as an example. Reconnect Battery Cable.
The sound of power...The “whistle” means its working!
Ref. A- (
1) Power Plate
(1) “O” Ring
(3) Bolts 6mmx60mm
(3) Flat Washers 6mm
Ref. B-
(1) Short Extension Plate (1/2) in. with 6mm threads
(1) Flat Head Screw 6mm x 34mm
(1) Spacer (5/8) with 1/4 in. hole
(1) Throttle Cable Bracket
Ref. C
(2) Spacers .636 Long with 3/8” Hole
(2) Bolts 3/8-16 x 1 1/2”
(1) Nutplate with 3/8” Threads
Ref. D-
(1) Long Extension Plate (1 in.)
(1) Flat Head Screw 6mm x 20mm
Rev. 03/15/07

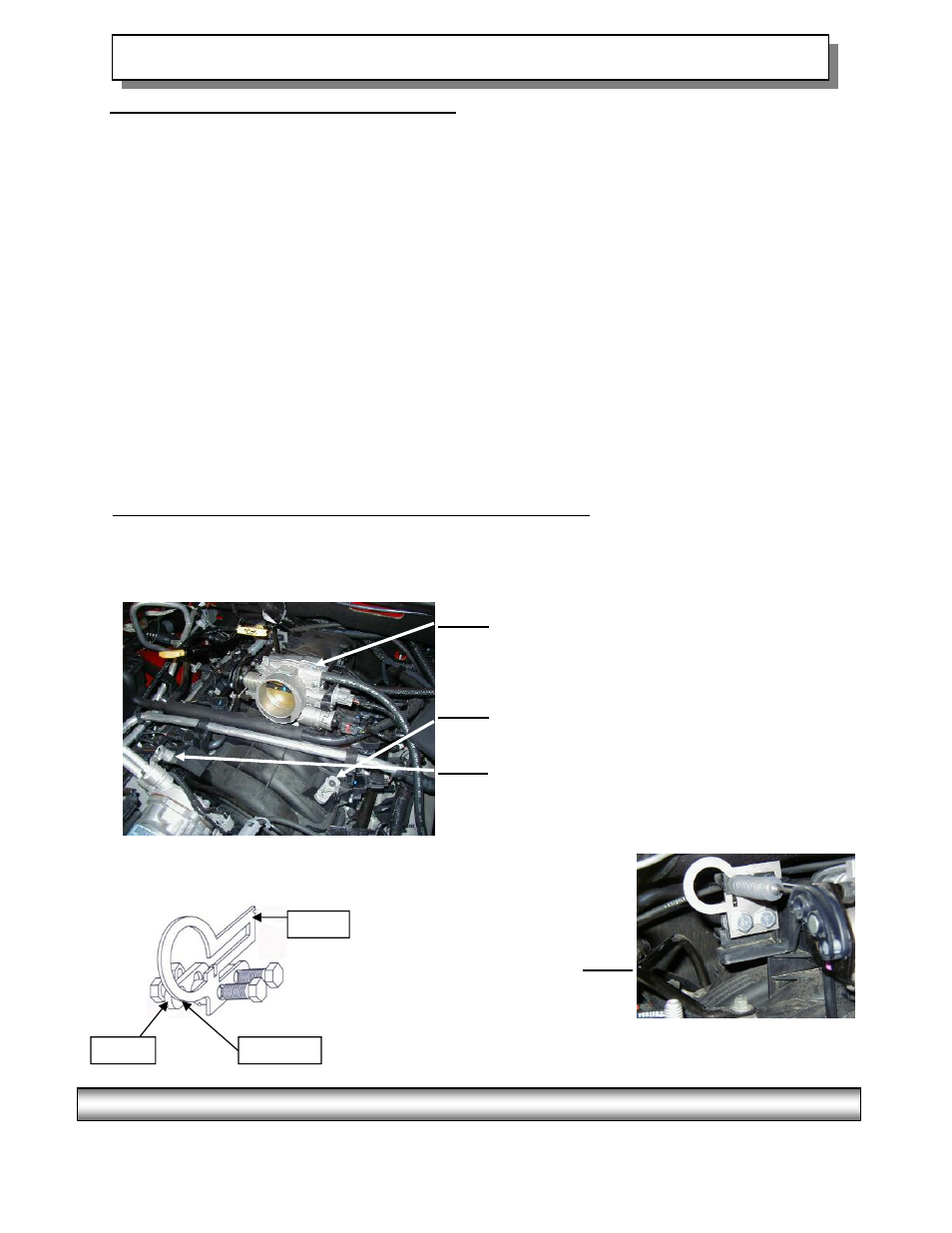

Throttle Cable Bracket “Detail”
Bracket
(2) Spacers
Nutplate
