Installation Instructions. Read Me!
1. DISCONNECT NEGATIVE (-) BATTERY CABLE.
2. Remove throttle body intake assembly.
3. Remove (2) bolts & save from linkage bracket. (Ref. “C”)
4. Remove (4) bolts from throttle body. (Ref. “D”)
5. Remove gasket and clean surfaces.
6. Install power plate with (2) gaskets. (Ref. “A”)
A. Place one gasket between the throttle body and power plate.
B. Place second gasket between the power plate and manifold.
7. Replace (4) 6mm x 50mm bolts (Ref. “D”) using Step 4 as an example.
8. Locate and install (2) linkage plates using (2) 6mm x 16mm flat head screws. (Ref. “C”)
9. Reinstall linkage bracket using saved bolts. (Refer to Step 3)
10. Install (1) linkage plate for plastic intake cover. (Ref. “C”)
11. Inspect & Test throttle linkage for full Open & Closed travel before driving. Some cruise or kickdown cables
may require adjustment. Please refer to your vehicles service manual for proper adjusting.
12. Reinstall throttle body intake assembly using Step 2 as an example.
13. Reconnect battery cable. Enjoy!
The sound of power...The “whistle” means its working!

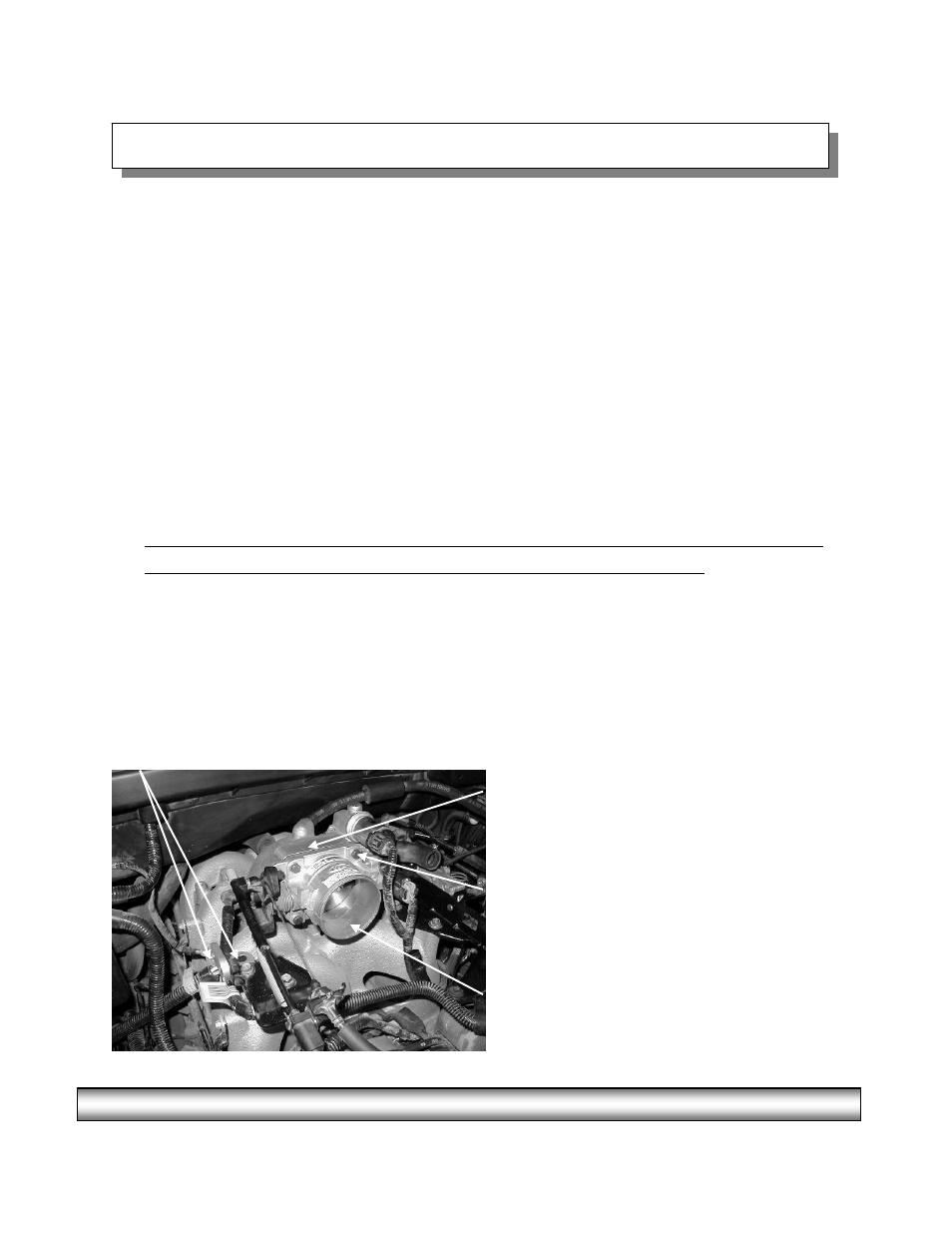

Ref. “A”- (1) Power Plate
(2) Gaskets
Ref. “B”- Throttle Body
Ref. “C”- (3) Linkage Plates
(3) 6mm x 16mm Flat Head Screws
Ref. “D”- (4) 6mm x 50mm Bolts
(4) 6mm Washers
Rv.07/12/06
