CONTROLS AND COMPONENTS
NOTE:
COMPONENTS SHOWN ARE STANDARD. PICTURES MAY VARY WITH DIFFERENT OPTIONS.

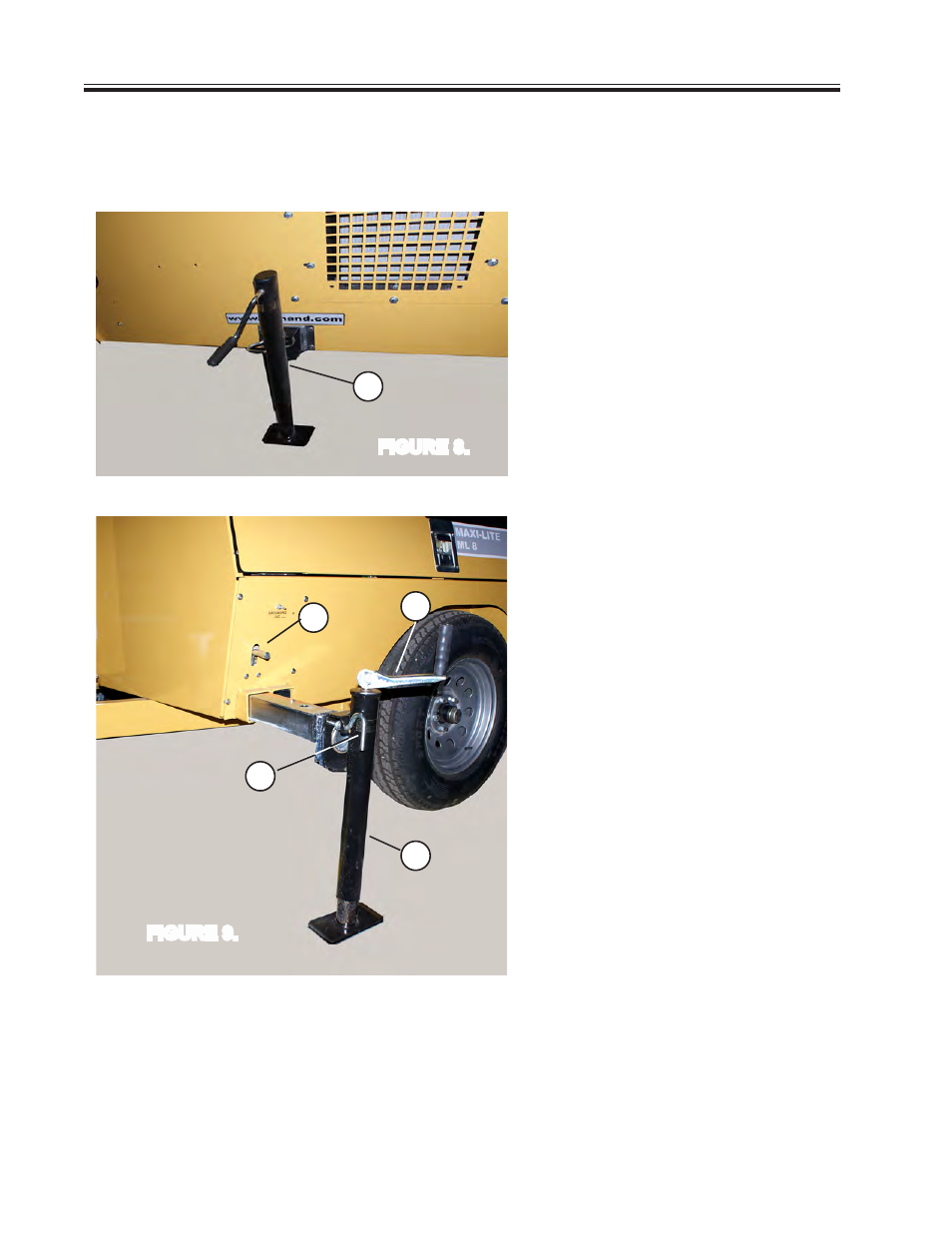

FIG. 8 REAR JACK
28. Rear Jack
FIG. 9 OUTRIGGER JACK
29. Pin--Retains outrigger in retracted
position for towing.
30. Jack Pin--Pull to allow jack to
rotate
31. Outrigger Jack
32. Jack Handle--Crank handle to
raise and lower foot of jack to
level trailer.
28
29
30
31
32
FIGURE 8.
FIGURE 9.
