Atlantic Water Gardens Eco-Blox - Manual (Page 2)

2

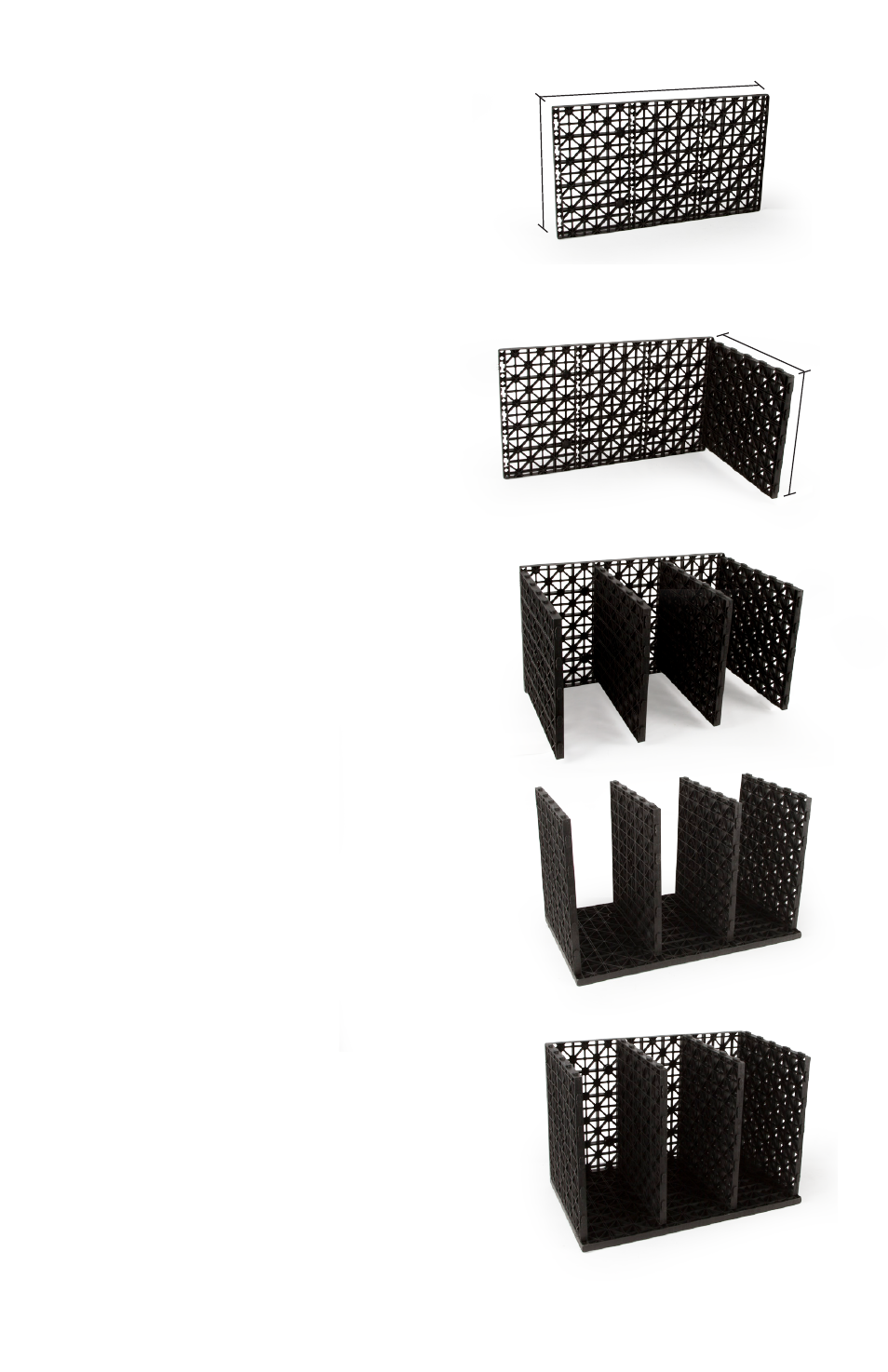

1. Begin assembly by placing one (1) large
panel in a vertical position with the 27¾”
long side on the ground. When assembly
is complete this panel will become the
bottom of the Eco-Blox.
2. Locate the 14½” side of one (1) of
the four (4) small support panels. Insert
the slide lock tabs of the 14½” side into
the receiving channel at one end of the
bottom panel. Holding the bottom panel
in one hand, push down on the support
panel until it ‘clicks’ into position. The
support panel should be centered on
bottom panel.
3. Repeat Step 2 for the three (3) remaining
support panels.
4. Rotate the Eco-Blox so the bottom panel
lays flat on the ground and the support
panels are facing upright.
5. Install the side panel by inserting the
slide lock tabs of all four (4) support
panels into the receiving channels.
Starting at one end, push down on the
side panel above each receiving
channel until they click into position.
The top of the side panel should be flush
with the tops of the support panels when
fully installed.
27¾”
16”
16”
14½”
