User’s Manual
32

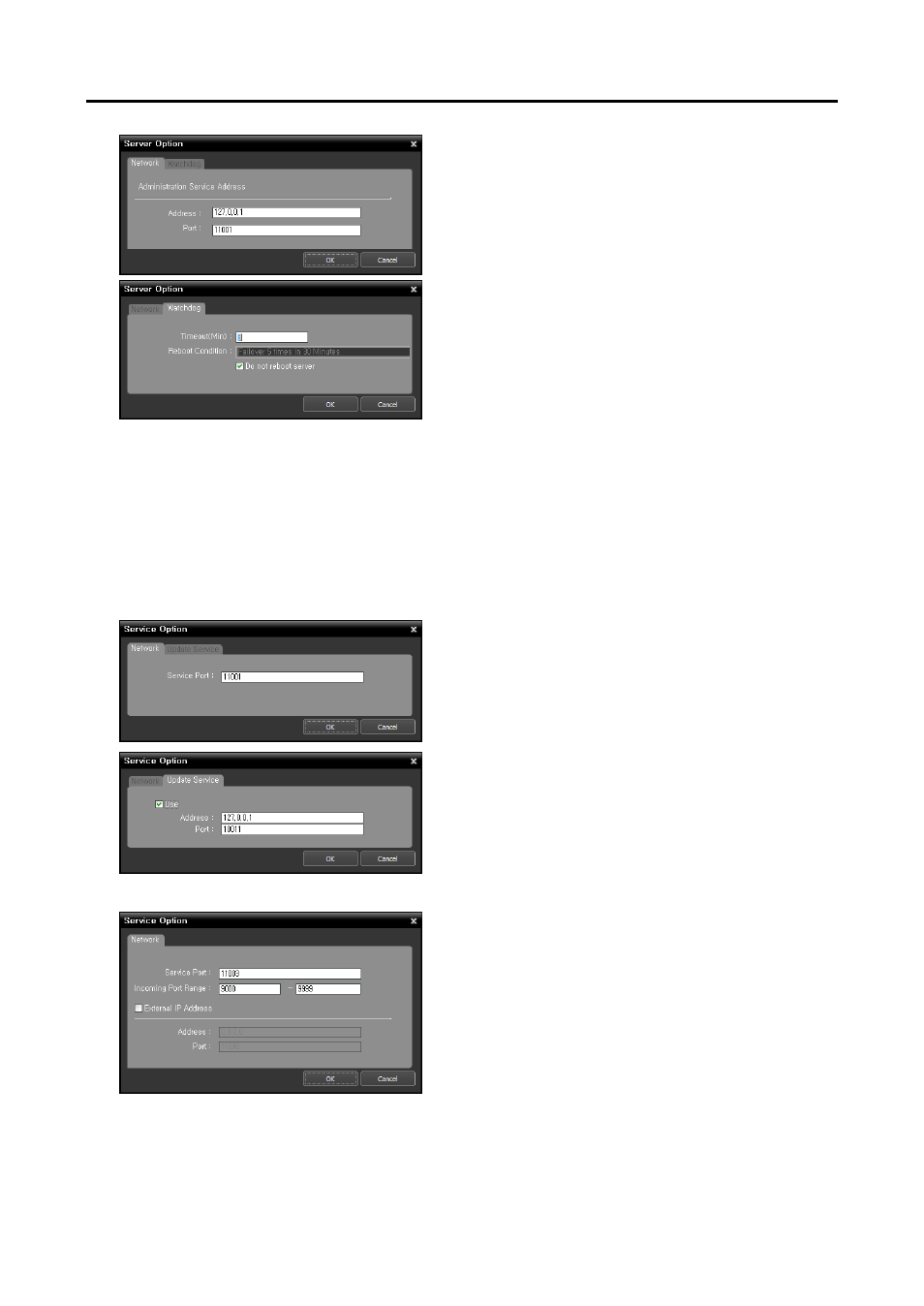

Network Tab
 IP, Port: Enter the IP address and port number of the
administration server.
CAUTION: If the IP address or port number of
the administration server is wrong, the iNEX
program will not work.
Watchdog Tab
 Timeout (Min.): Set up the waiting time to restart services
when services fail to operate. The service checks the
system status. When the services fail to operate during
the designated waiting time, the system restarts services
automatically.
 Reboot Condition: Set up the reboot condition when
services fail to operate. Checking the Do Not Reboot
Server option allows the system to restart services
without rebooting.
NOTE: “Watchdog” in the iNEX program is a function that periodically checks the operation of the current
server and restarts services automatically when services fail to operate during the predefined time.
− Service Option: Selecting a service from the service list and Service Option allows you to set up
the information for connection to the selected service.
Administration Service
Network Tab
 Service Port: Enter the port number for connection to
the service.
Update Service Tab
 Use: Check the box if you want to use the update service
and enter the IP address and port number of the update
server. The administration service connects to the
update service periodically to check if an upgrade is
available and automatically upgrades if necessary.
Recording Service / Streaming Service / Video Analytics Service
 Service Port: Enter the port number for connection to
the service.
 Incoming Port Range: Enter the port range if a device
which transmits images using the RTP protocol is
registered. Port range settings must be changed if the
network firewall or local network allows only specific
UDP/RTP port numbers. The port numbers should not
conflict with the RTP port numbers of Client system or
port numbers of other streaming programs. If an RTP
port number conflicts with others, iNEX program
recording/ streaming/video analytics function may not
be available.
 External IP Address: Enter the external IP address
and port number for connection to the service from an
external network.
