32 Acappella — Instruction Manual
Section 1 — System Overview

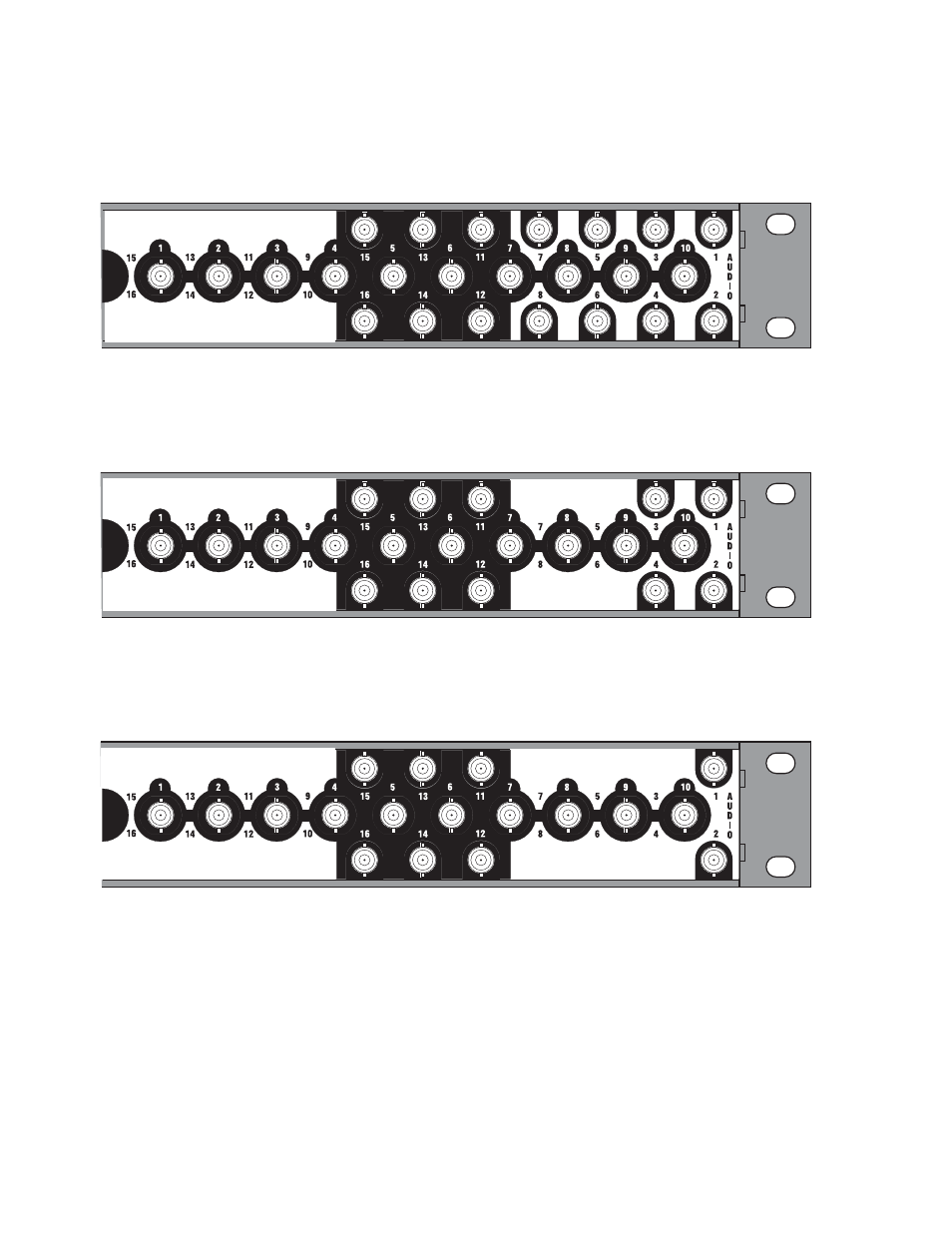

The configuration shown in Figure 19 is 16 Inputs by 8 Outputs of single
stream digital (AES) audio.
Figure 19. 16x8 Audio Single Stream BNC Backplane
The configuration shown in Figure 20 is 16 Inputs by 4 Outputs of single
stream digital (AES) audio.
Figure 20. 16x4 Audio Single Stream BNC Backplane
The configuration shown in Figure 21 is 16 Inputs by 2 Outputs of single
stream digital (AES) audio.
Figure 21. 16x2 Audio Single Stream BNC Backplane
8300_00_27
8300_00_28
8300_00_29
