5.14 Info panel
When the ADX-1901 is included in an iControl environment,
certain information about the card should be available to the
iControl system. The user can enter labels and comments that
will make this card easy to identify in a complex setup. This
information is entered into data boxes in the Info control panel.
Rear Type:
specifies the rear module currently installed.
Label:
type the label that is shown for this ADX-
1901 when it appears in iControl
applications
Short Label
type the short-form label that iControl uses
in some cases (8 characters)
Source ID
type a descriptive name for this ADX-1901
Comments:
type any desired text
The remaining data boxes show manufacturing information
about this card.
Three buttons in the panel give access to other information.
• Details…: Reports the Firmware version, service version,
and panel version for this card
• Advanced…: Shows the Long ID for this card. The Long ID is the
address of this ADX-1901 in the iControl network.

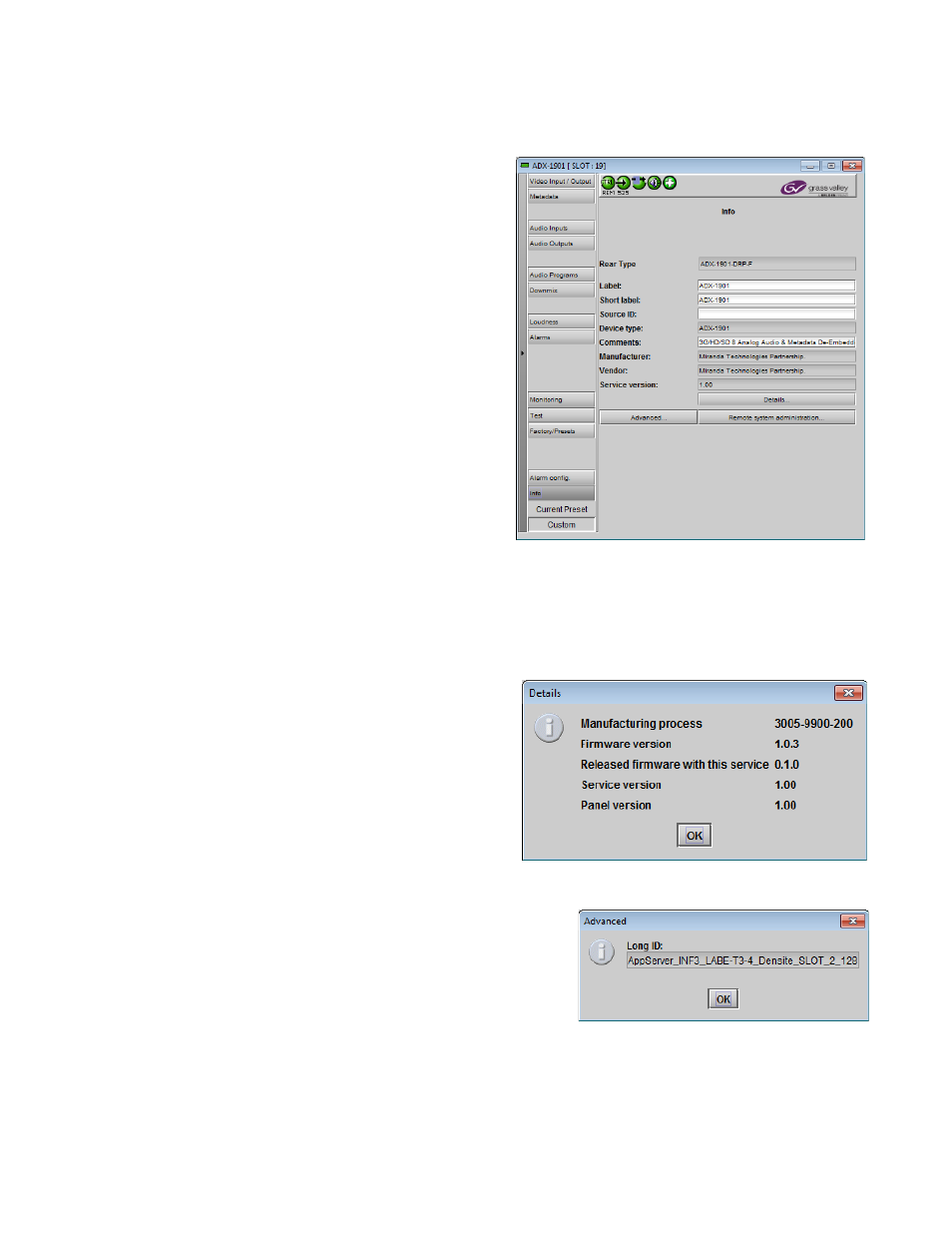

Figure 5-37 Advanced window
Figure 5-36 Details window
Figure 5-35 Info panel
