34
Feature Detailed Description
CopperHead 3404 Base Station Back Panel
• 10: Camera Remote Control Panel Connector
• 11: Data/GPI Multi-Pin Connector
Area C - Video/Ethernet Connectors & Indicators

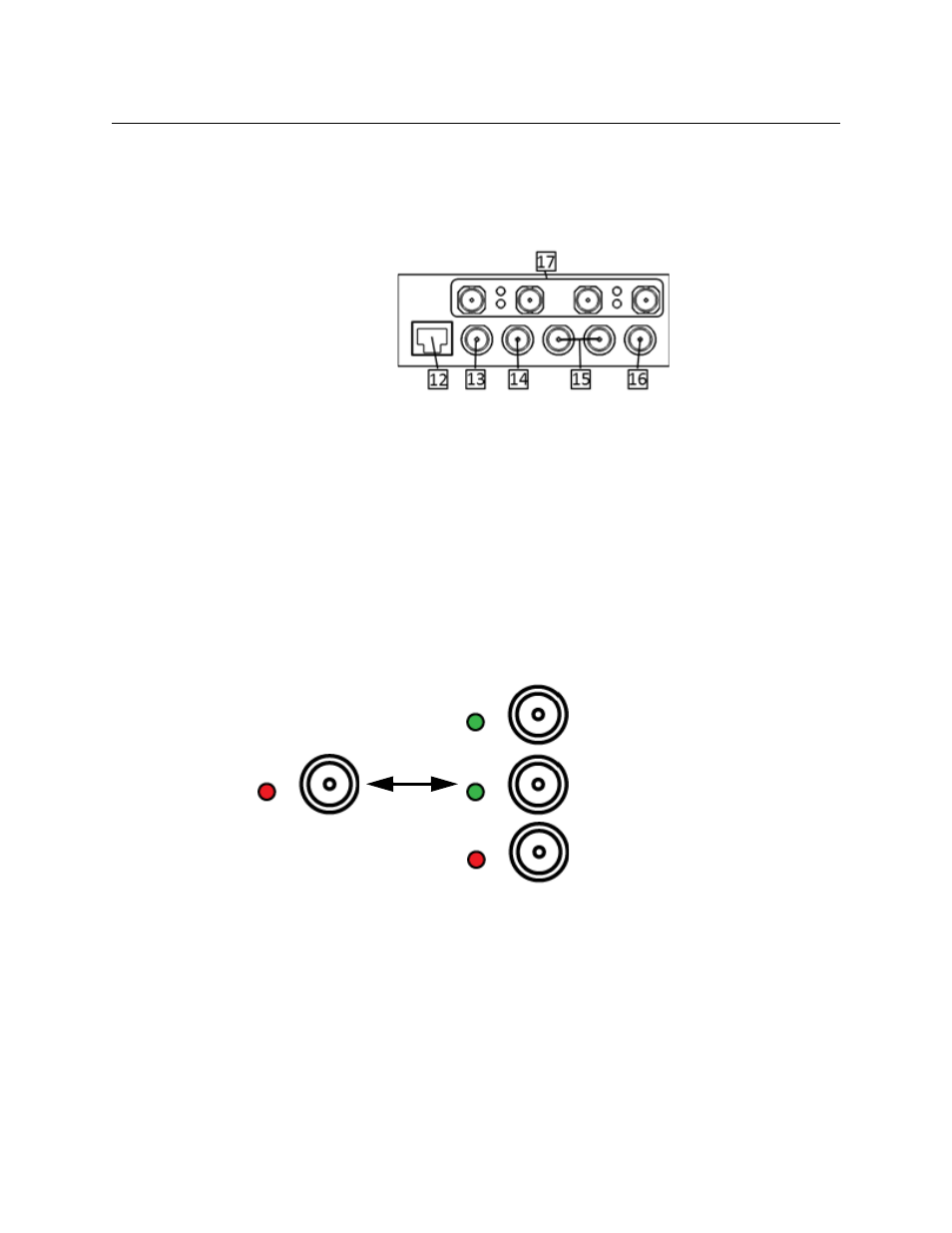

Fig. 4-24: Video/Ethernet Connectors & Indicators
• 12: Ethernet connector - 10BaseT/100BaseT
• 13: VBS Output from Camera
• 14: VBS Return Video source Input to Camera
• 15: HD/SDI Program from Camera Unit outputs 1 & 2
• 16: SDI Return Video source Input to Camera
• 17: 4K-3G/HD/SD SDI Video from Camera Q1-Q4 with associated LED indicators
4K Signal Strength LEDs
Each 4K-3G/HD/SD SDI Video connection from the Camera (Q1-Q4) has a signal strength
LED indicator. There are three possible indications.
Fig. 4-25: 4K Signal Strength LEDs
Green LED indicates good
SDI signal strength.
Alternating between Red and Green
LEDs indicates optical link is good
but there is no SDI signal present.
Red LED indicates no
optical link.
