09 April 2010 K2 Summit Production Client Service Manual 95

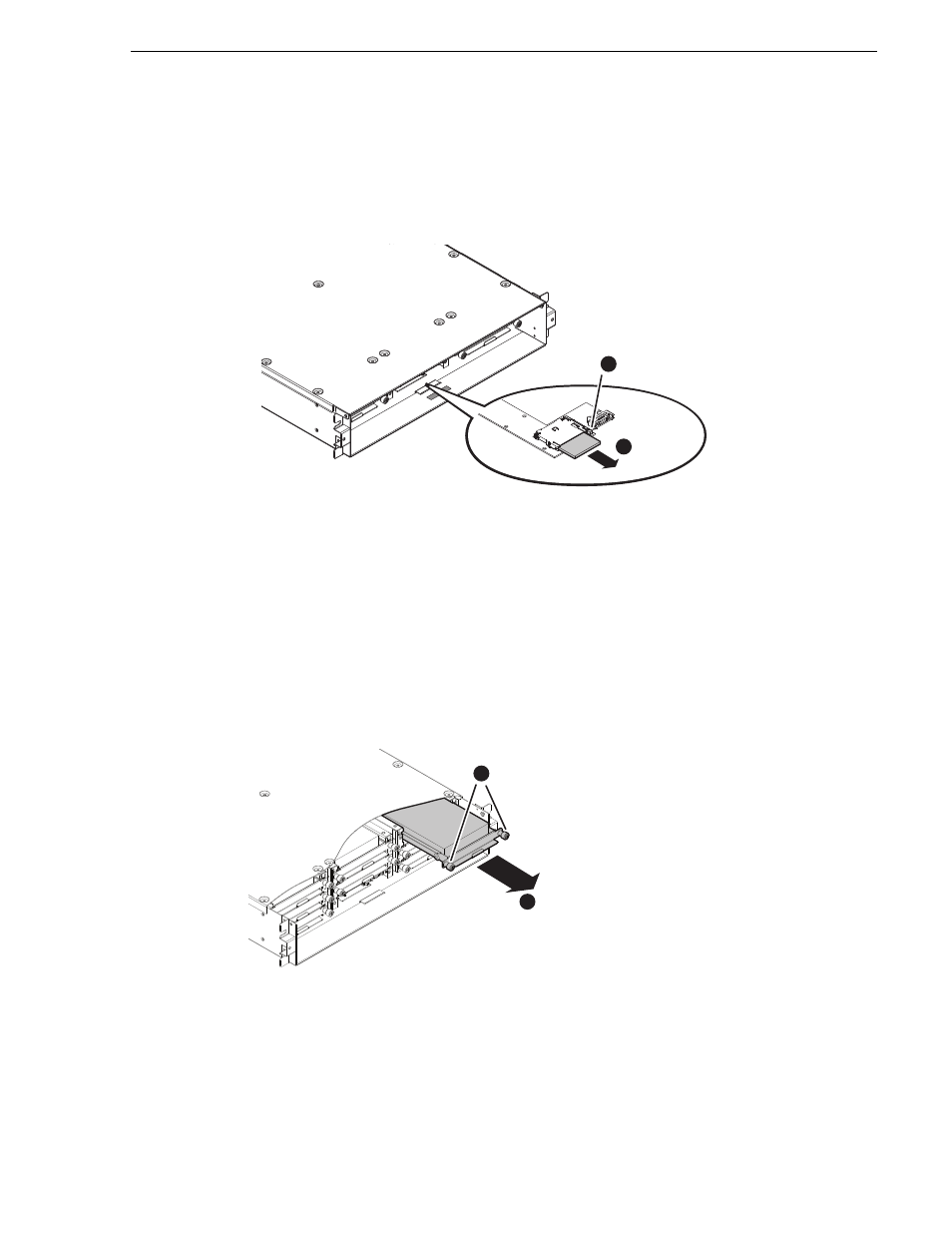

CompactFlash boot media removal
CompactFlash boot media removal
To remove the boot media, first remove the front bezel assembly, then proceed as
illustrated.
You must use the CompactFlash boot media provided by Grass Valley. Do not use
CompactFlash media procured elsewhere.
Disk module removal
Before removing a disk module, refer to “Replacing a RAID 0 drive” on page 53 .
Before removing, you should make sure you have identified the proper disk module.
In some cases you must also perform operations with Storage Utility.
To remove a disk module first remove the front bezel assembly as described in the
previous procedures, then proceed as illustrated.
Slide out 2
Push button 1
Loosen thumbscrews
Top shown cut away
for clarity
1
Slide out 2
