Kameleon Series Instruction Manual
95
KAM-AV and KAM-SD Links and Web Pages
AES Inputs Web Page
Use the AES Inputs web page (
) to check AES/EBU input signal
status decoded from the input signal status bits.
These audio groups become inputs on the Audio Input Select web page
(
) and any pair can be routed to one of the four audio
processing paths.

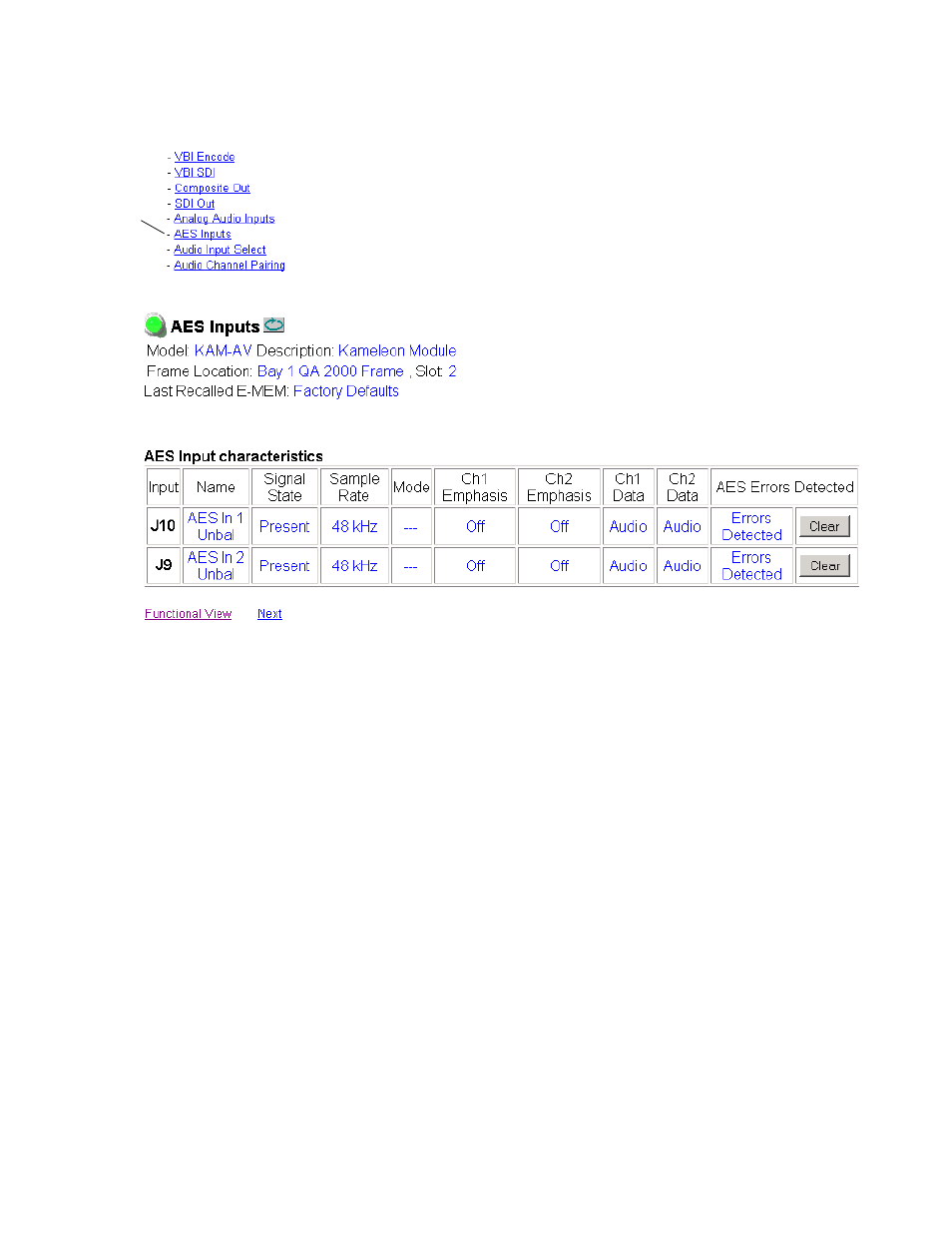

Figure 62. AES/EBU Audio Inputs Web Page
Input
The Input column will indicate which rear module connectors are being
used to input AES audio depending on the type of rear module installed.
Refer to the
Input/Output Configuration Web Page on page 50
for how to con-
figure the AES input connectors.
Name
The Name column will report the default input name for these audio con-
nectors or the name given to the inputs by the user.
Signal State
The signal state of the AES audio will be reported as
Present
or
Not Present
.
Sample Rate
Kameleon accepts AES/EBU input signals at sample rates from 31 kHz to
96 kHz. The currently detected sample rate will be reported.
Use
this
link
