18 KayakDD Installation Planning Guide
KayakDD-2 Installation
CAUTION At least 2 inches (50mm) of open space at the rear of the panel below the
mounting surface is required for proper cable clearance and air flow.
Fastening to Table Top
Four M4 thread drillings are available for fastening the panel to a table top
(
Figure 13 ).

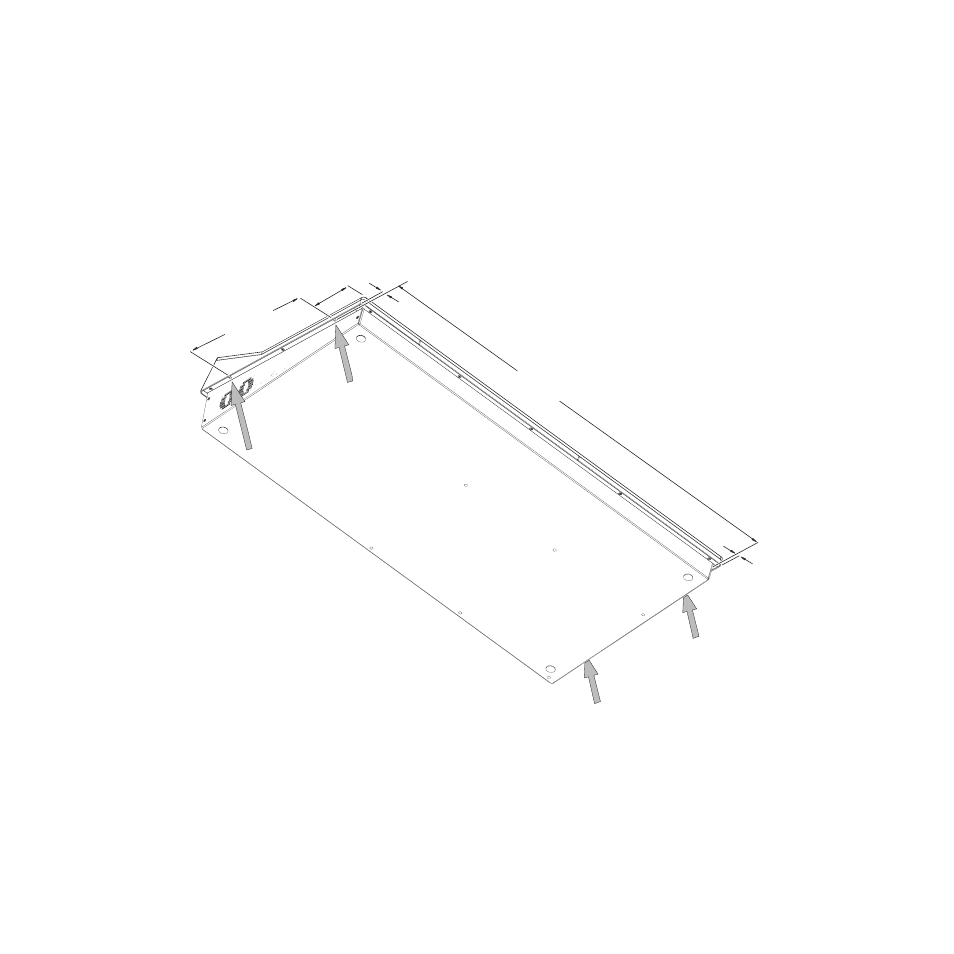

Figure 13. KayakDD-2 Panel Mounting Drillings
10.55 in.
268 mm
2.95 in.
75 mm
31.46 in.
799 mm
drilling centerline
0.2 in.
5 mm
edge to drilling
centerline
0.2 in.
5 mm
