FINAL ASSEMBLY INSTRUCTIONS

Remove the hardware bag from the frame, remove parts and sort

by size.

TONGUE

The tongue is shipped separate from the frame. Locate the ap-

propriate tongue and install by sliding it in the front of the tongue

channel.

Line the holes in the tongue with the holes in the tongue

channel. Install the 1/2” x 4” hex bolt in the front cross hole and

secure with a 1/2” lock nut.

Remove the wire harness from the rear of the tongue. Place the

wire harness and the brake line (If equipped with brakes)

through the hole provided in the tongue cover plate.

Secure the tongue cover plate in position with the same 1/2” x

1-1/2” hex bolt that secures the back on the tongue to the

tongue channel of the frame. Secure with a 1/2” lock nut.

Tighten both bolts just installed.

Plug the tongue wire harness ends into the frame

harnesses by matching colors and ends. Push the

e x t r a w i r e p r o v i d e d e i t h e r i n t o t h e r e a r o f t h e

tongue or else remove the grommets in the side frames

and place the extra wire in the side frames. Replace

grommet just removed.

SAFETY CHAINS

Locate the 1/2” x 5” hex bolt. Slip the bolt through a 1/2”

flat washer, then place through the last link of one of the

safety chains.

Place the bolt with chain attached through the hole

provided in the bottom front of the actuator mount on the

tongue. Place the second chain on the portion of the bolt

extending through the other side of the tongue. Place on

another 1/2” flat washer and hex lock nut. Tighten.

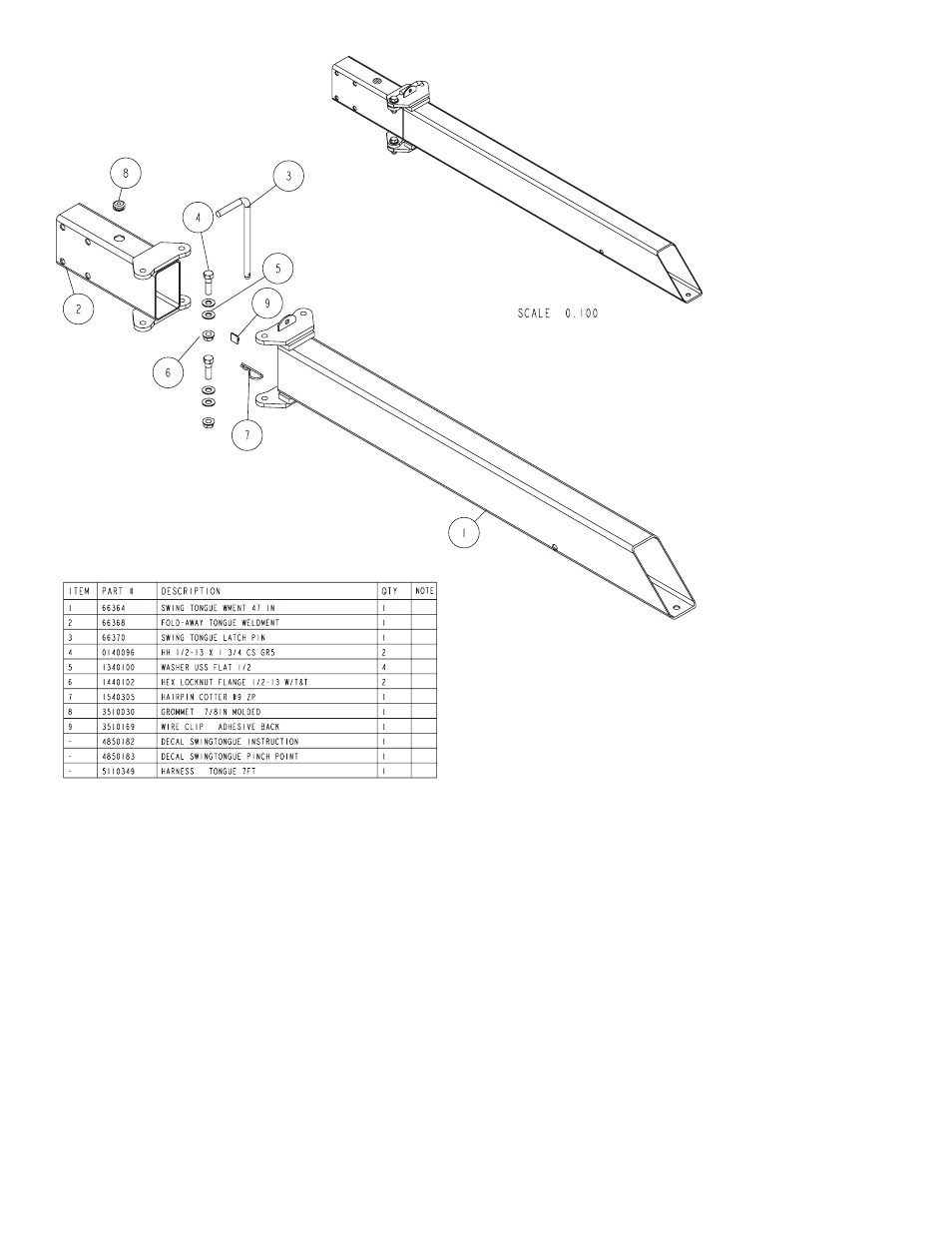

Diagram B
