Page 8

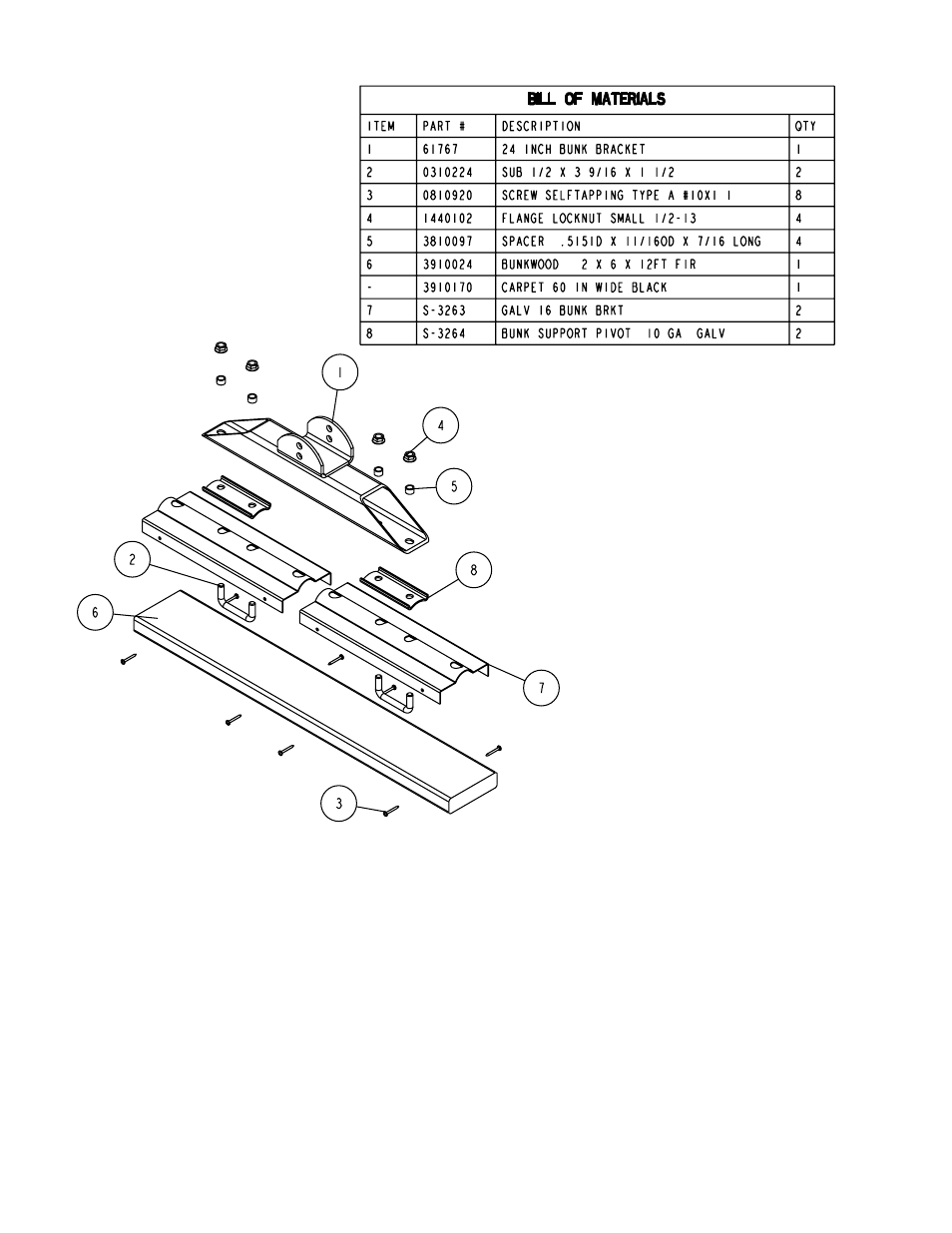

RB Bunk Assembly
Locate the support arms bundle. Place one of the arms into
the factory installed mounting bracket on the rear pivot with
the ends curved up as shown. Secure in the bracket with two
(2) 1/2” x 4” carriage bolts and hex lock nuts. See Detail B,
Page 2. Tighten.
Place one of the bunk assemblies on the end of the support
arms just installed. Line up the top hole in the mounting
bracket with the hole in the support arm and secure with a
1/2” x 4-1/2” hex bolts and hex lock nuts. Tighten. Repeat on
the other end of this support arm. Repeat this complete
process on the other support arm.
Note that the bunk assemblies have two height adjustments.
The instructions are to install them in the lowest position to
keep the center of gravity as low as possible for towing.
If required, the bunks can be installed in the raised position
for fender cleanrance by mounting the bunk assemblies to
the bunk support arms using the lower mounting hole.
Roller Arm Assembly
Locate the support arms bundle. Place one of the arms into
the factory installed mounting bracket on the rear pivot with
the ends curved up as shown. Secure in the bracket with two
(2) 1/2” x 4” carriage bolts and hex lock nuts. See Detail B,
Page 2. Tighten.
Place one of the roller assemblies on the end of the support
arms just installed. Line up the hole in the mounting bracket
with the hole in the support arm and secure with a 1/2” x
4-1/2” hex bolts and hex lock nuts. Tighten. Repeat on the
other end of this support arm. Repeat this complete process
on the other support arm.
