NXT
CONNECTIONS
NXT
CONNECTIONS
Mixer
Speaker Cabinets:
The Laney Nexus range of cabinets has been specially designed for use
with this amplifier:
NX810
4 Ohm
NX410
8 Ohm
NX115
8 Ohm
Their power ratings and impedances have been carefully matched for
optimum performance. Use of other cabinets may result in an inferior sound.

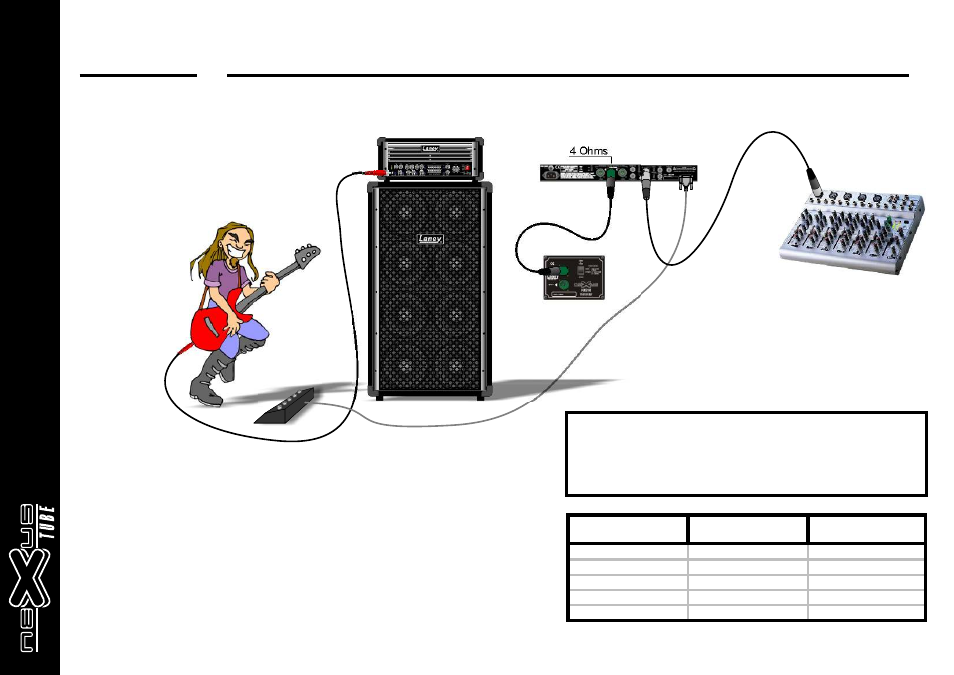

(See connection diagrams for wiring up).
NEVER operate the amplifier without speakers connected.
Speaker cabinets should be Daisy-chained together so
that only one connector on the amplifier is used at
once.
Cab Impedance
No of Cabs
Total Impedance
4 Ohm
1
4 Ohm
4 Ohm
2
2 Ohm
8 Ohm
1
8 Ohm
8 Ohm
2
4 Ohm
8 Ohm
4
2 Ohm
