6 These sockets should be used to connect to your loudspeaker cabinets. The Total impedance of the cabinets must not be less
than 4 Ohms. Connecting cabinets that have a lower impedance than 4 Ohms will result in the amplifier overheating. Continual
use in this manner may cause permanent damage. The best combination of cabinets to use is one RB115 and one RB410 cabinet.
Send and return sockets are provided for connecting external effects-units. You can also use the Send socket as a line out if you wish.
Socket for connecting external tuner. This output is taken before any processing so the Volume control may be turned down for
silent tuning.
13

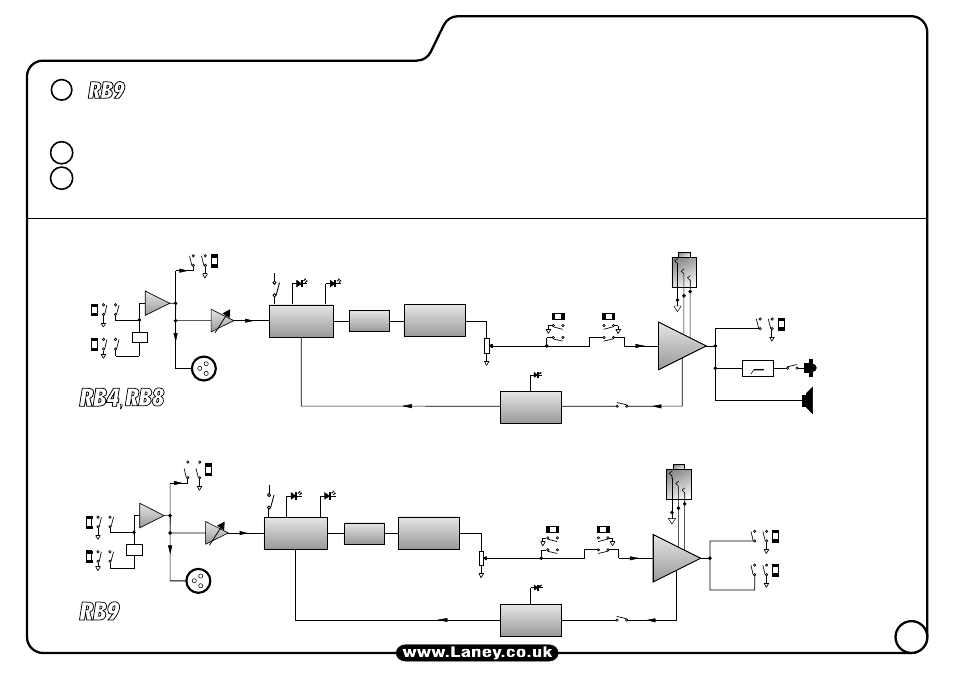

BLOCK DIAGRAMS
INTERNAL
LOUDSPEAKER
EXTERNAL
LOUDSPEAKER
EXTERNAL
LOUDSPEAKERS
H.F HORN X-OVER D.I. OUT
D.I. OUT
TUNER OUT
TUNER OUT
GAIN
GAIN
INPUT
INPUT
VOLUME
VOLUME
FX LOOP
FX LOOP
SEND
SEND
RETURN
RETURN
EQ SECTION
EQ SECTION
This loop is a series type
so all your signal will go
through your FX unit.
This loop is a series type
so all your signal will go
through your FX unit.
NORMAL
NORMAL
HIGH
HIGH
PAD
PAD
Aux In (3.5mm)
Aux In (3.5mm)
POWER
AMP
POWER
AMP
ACTIVE
ACTIVE
ON
ON
COMPRESSOR
SECTION
COMPRESSOR
SECTION
ENHANCE
ENHANCE
LIMITER
SECTION
LIMITER
SECTION
LIMITER
DEFEAT
LIMITER
DEFEAT
ACTIVE
ACTIVE
