1.0 Introduction
The back panel of the CSW1012 inverter is equipped with the following
features:
8. Cooling Fan – an intake cooling fan that automatically turns on when the
inverter’s internal temperature rises above 122 °F (50 °C). The fan turns
off when the inverter’s internal temperature falls below 122 °F (50 °C).
9. DC Negative Terminal (black) – the inverter’s connection to the nega-
tive terminal on the 12 VDC battery bank.
10. DC Positive Terminal (red) – the inverter’s connection to the positive
terminal on the 12 VDC battery bank.
11. Model Number – the model number of the inverter (i.e., CSW1012),
and regulatory compliance information.
12. DC Chassis Ground Screw – the connection that is used to tie the ex-
posed chassis of the inverter to the DC grounding system. The grounding
screw (8-32 x 3/8 Phillips PH) either connects to the vehicle’s chassis, to
the DC grounding bus, or to the engine’s negative bus.
13. Mounting Flanges (front and rear) – used to mount and secure the
inverter to a shelf/wall.

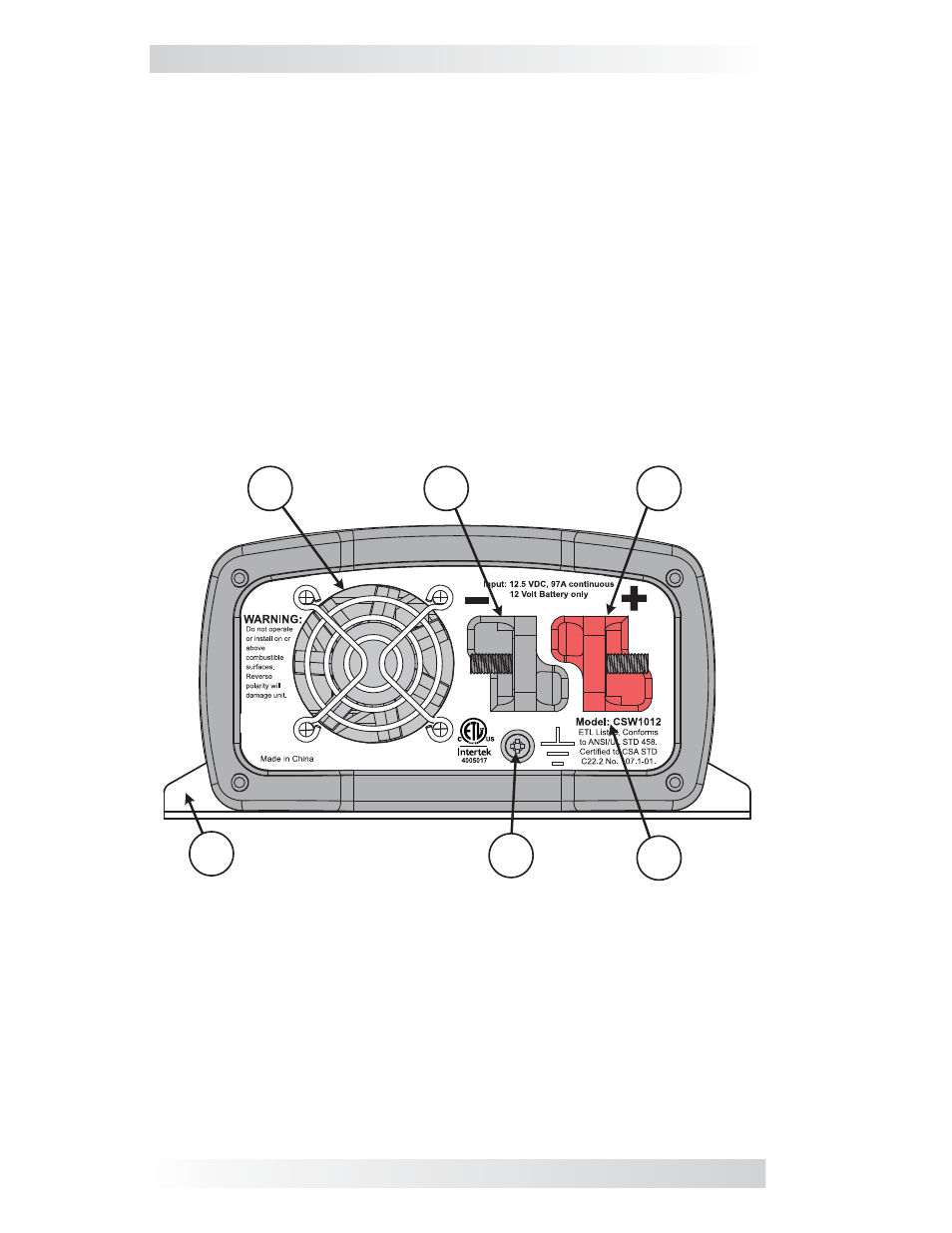

Figure 1-2, Back Panel Features
8 9 10
11 12 13
Regulatory Compliance
The CSW1012 inverter is intended to be used for land vehicles (RVs or
trucks) or marine craft. It has been tested and listed to UL 458, 5th Edition
(Power Converters/Inverters and Power Converter/Inverter Systems for
Land Vehicles and Marine Crafts) for use in the US; and is also certifi ed to
CSA C22.2 No. 107.1-01 (General Use Power Supplies) for use in Canada. It
has been tested and certified to these product safety standards by Intertek
Testing Services (known as ETL), which is a Nationally Recognized Testing
Laboratory (NRTL). NRTLs are qualified organizations that meet Occupational
Safety and Health Administration (OSHA) regulations to perform independent
safety testing and product certifi cation.
