7

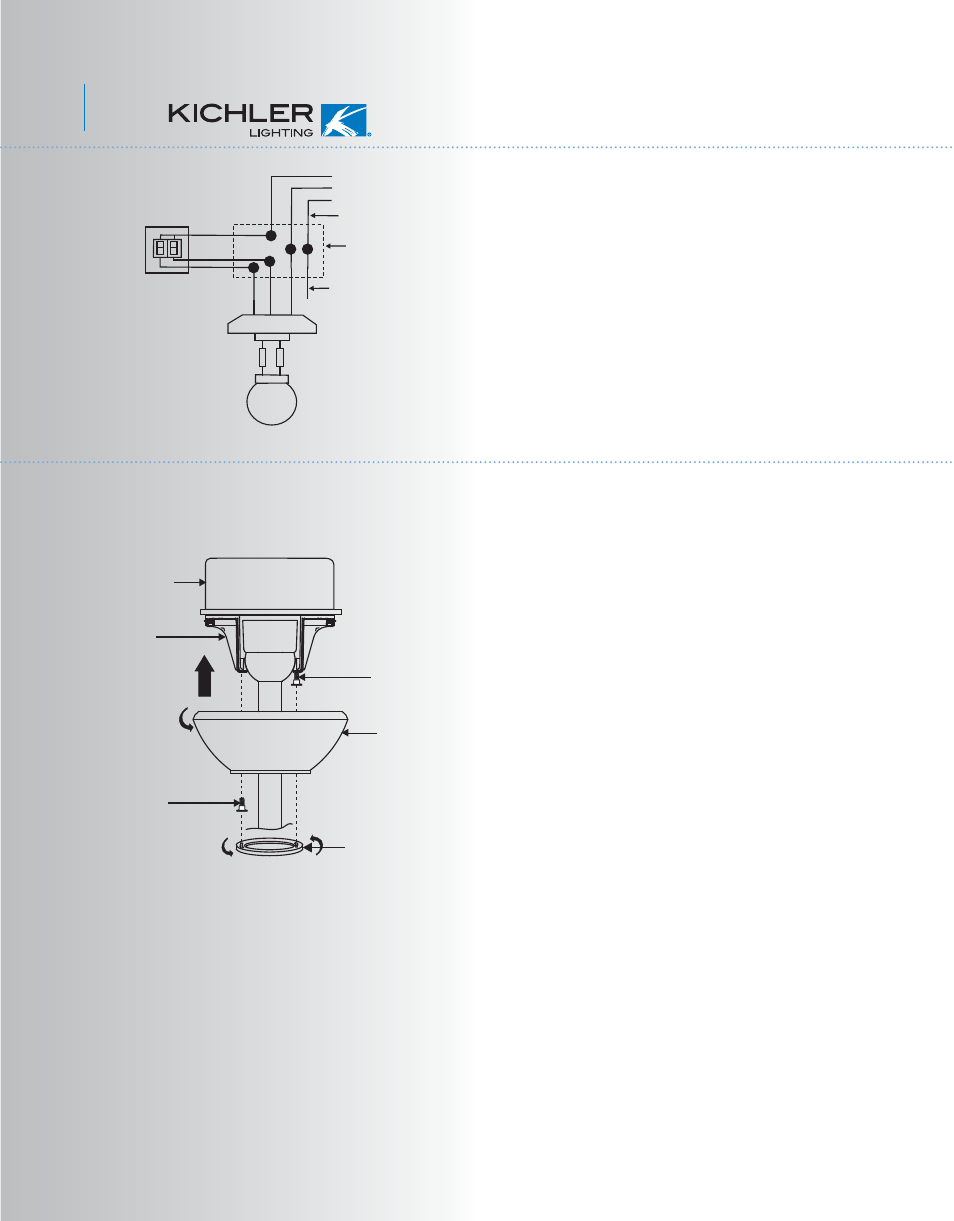

Fig. 14
Fig. 15
WARNING: TO REDUCE THE RISK OF FIRE,
ELECTRIC SHOCK, OR OTHER PERSONAL
INJURY. MOUNT FAN ONLY ON AN OUTLET
BOX OR SUPPORTING SYSTEM MARKED
ACCEPTABLE FOR FAN SUPPORT.
Outlet box
Hanger
bracket
Canopy
Canopy cover
Screws
Screws
8. FINISHING THE INSTALLATION
GROUND TO
MOUNTING
BRACKET
OR DOWNROD
POWER LINES 120V
GREEN
GROUND
WIRING
BOX
WH
BLUE BLK
BLK
WH
FAN
LIGHT
WH
WH
BLUE
BLK
LIGHT FAN
Step 1. Tuck all the connections neatly into
the ceiling outlet box.
Step 2. Slide the canopy up to the mounting
bracket and place one of the key hole slots
over the mounting screw on the mounting
bracket. Rotate the canopy until the screw
head locks in place at the narrow section of
the key hole. See figure 15.
Step 3. Align the remaining circular hole on
the canopy with the remaining hole on the
Ceiling Mounting Bracket. Insert and tighten
the mounting screw you removed earlier and
the mounting screw from Step 2 above. Now,
attach the canopy cover to the mounting
screw heads by inserting the screw heads into
the bottom side of the canopy cover and
rotating the cover clockwise.
NOTE:Adjust the canopy screws as
necessary until the canopy and canopy cover
are snug. (Fig. 15)
Warning: Make sure the "Check Tab" at the
bottom of the hanger bracket is properly
seated in the "Registration Slot" on the side of
the hanger ball before attaching the canopy to
the bracket. Failure to properly seat the
"Check Tab" could damage the electrical
wires when to ceiling fan blade direction is
changed while the fan is running.
