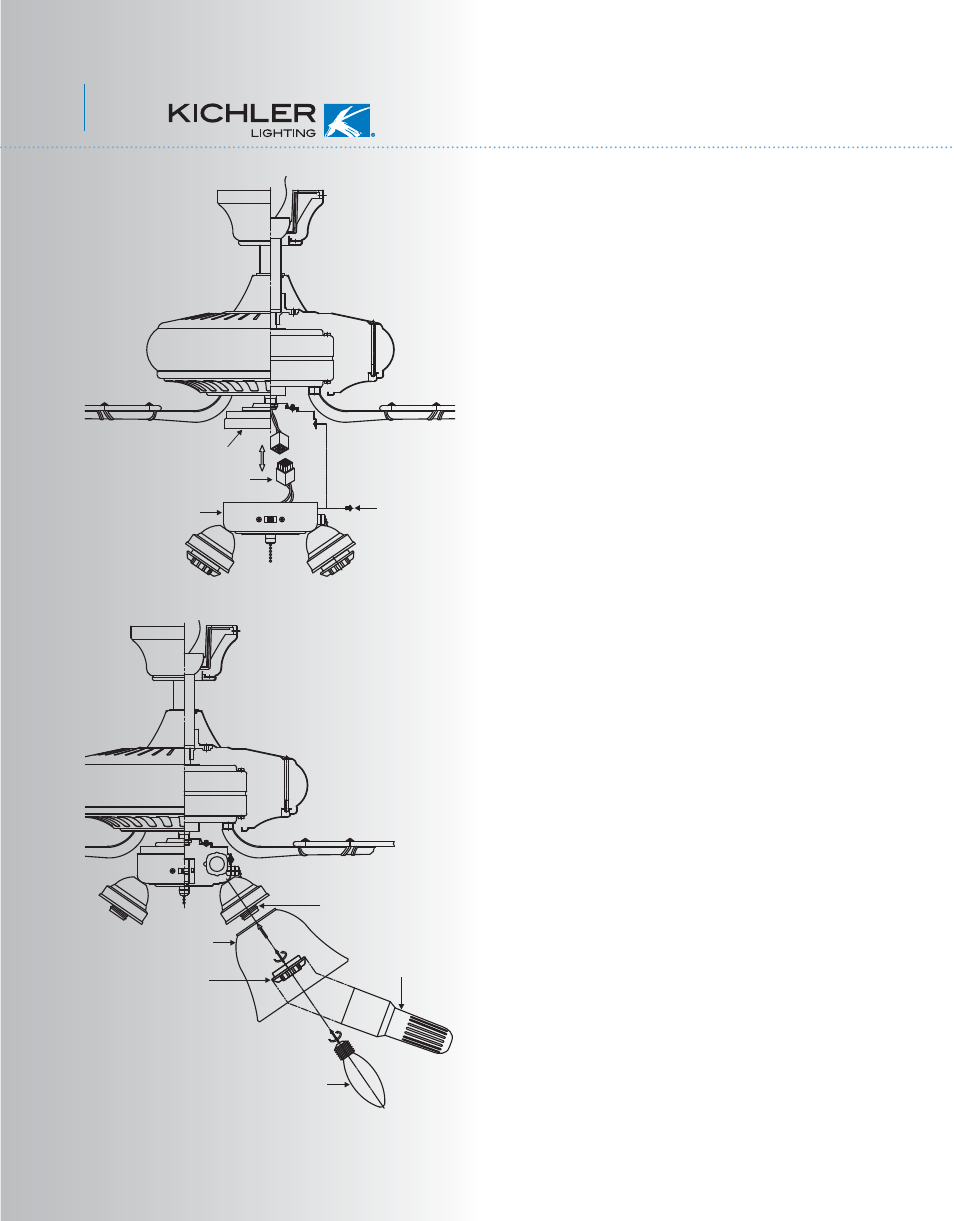

Fig. 18
Fig. 19
11. INSTALLING THE LIGHT FIXTURE
1. While holding the light fixture assembly
under your ceiling fan, push the square wire
connectors together. One from the fan and
one from the light fixture. (Fig.18)
NOTE: These connectors are color coded and
will ONLY engage when the colored strips are
matched (aligned).
2. Carefully push all the wires into the switch
housing assembly.
Attach the switch housing assembly to the
switch house mounting plate with the three
screws provided. Make sure each screw is
tight. (Fig. 18)
3. Remove the socket nuts from each socket.
Insert a glass shade into the glass holder, then
replace and tighten the socket nut until it is
tighten firmly. Repeat this procedure for the
remaining glass shades. (Fig. 19)
NOTE: A Socket Nut Wrench has been
provided to help in this installation.
4. Install 3, 40 Watt E-12 candelabra lamps
(included). (Fig. 19)
5. Attach two pull chain fobs to each of the
beaded pull chains.
Light fixture
Glass shades
Socket nuts
Sockets
Lamps
Socket nut wrench
Switch house mounting plate
Wire connector
Screws
