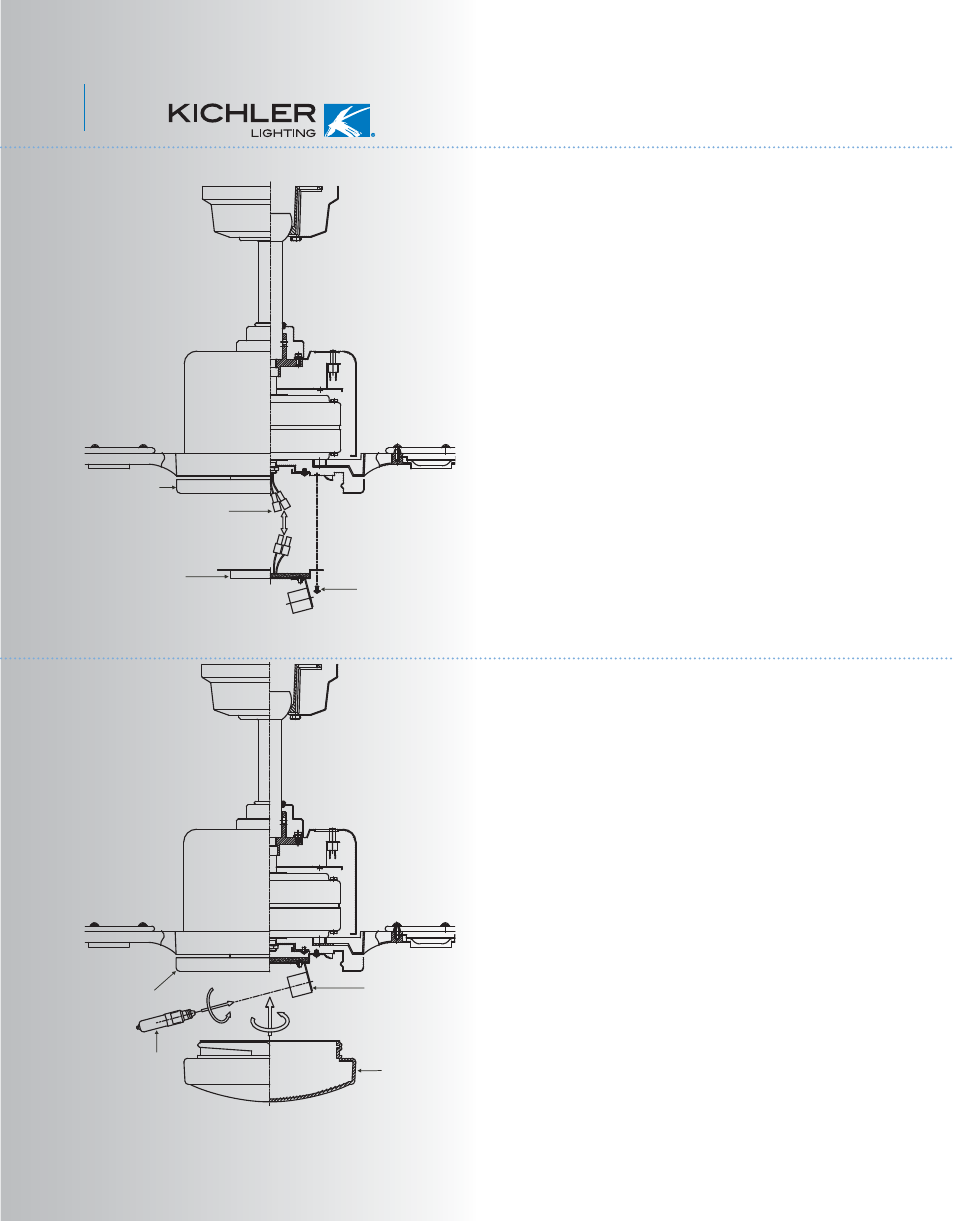

Fig. 18
Fig. 19
Step 1. Install 2, 50W T4 halogen bulbs
(provided). (Fig. 19)
Step 2. Raise the glass shade against the light
plate and turn clockwise until snug, do not
overtighten. (Fig. 19)
12. INSTALLING THE LIGHT BULBS AND
GLASS SHADE
NOTE: Before starting installation, disconnect
the power by turning off the circuit breaker or
removing the fuse at fuse box.
Step 1. Loosen the three mounting screws on
the inside of the light fixture.
Hold the light plate close to the light fixture and
connect the white wires from the light plate
and the fan. Follow the same procedure with
the black wire connectors. (Fig. 18)
Step 2. Tuck the connections neatly into the
light fixture. Place the light plate key holes
over the three mounting screws inside the light
fixture and turn the light plate until it locks in
place at the narrow section of the key hole
slots. Secure by tightening all three screws.
(Fig.18)
11. INSTALLING THE LIGHT FIXTURE
Light kit
Wire connectors
Mounting plate
Screws
Glass shade
Light kit
Bulbs
Mounting plate
