Installing the TV set
First plan the installation solution for your TV set. See the installation
instructions of the enclosed table mount for this.
See accessories (page 65) for other installation options.
Preparing the remote control unit

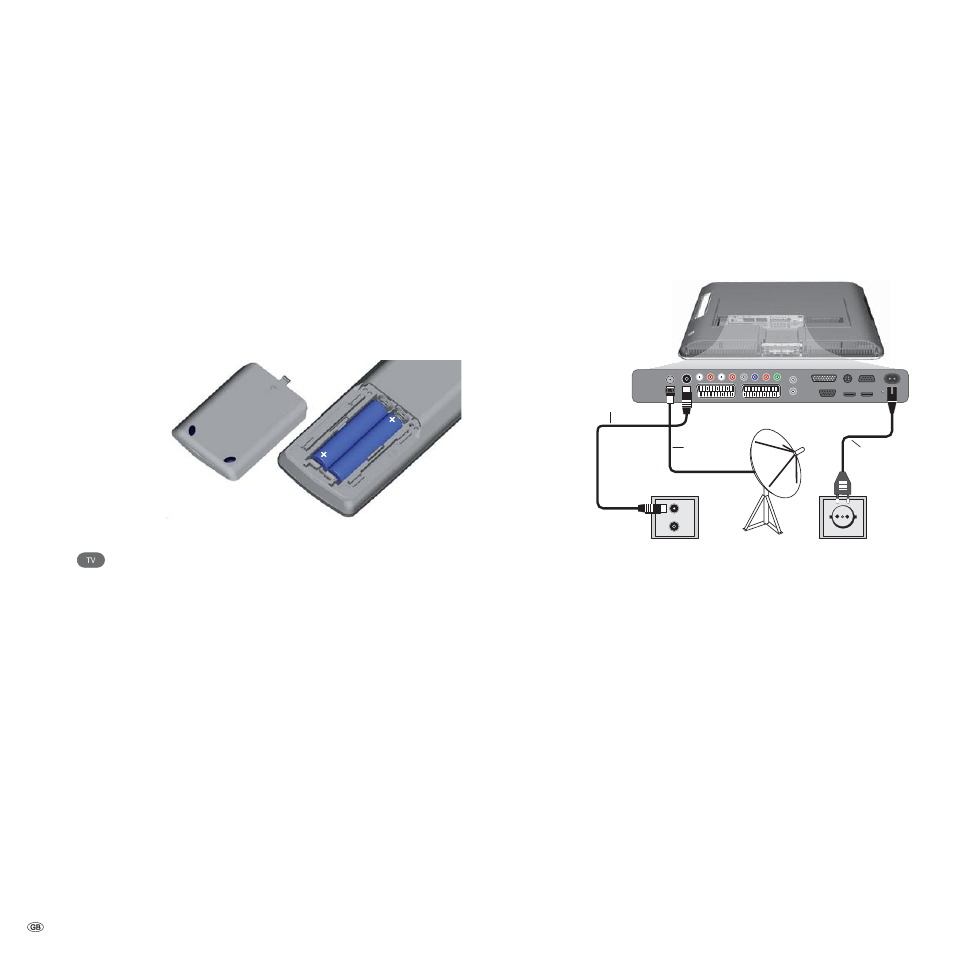

Inserting or replacing batteries
Press the embossed arrow and push down the
battery compartment cover.
Insert two alkaline manganese LR 03 (AAA) batteries;
ensure that the + and – poles are correctly positioned!
Slide the cover up from below.
Adjusting the remote control for operating the TV set
Press the TV button.
See page 60 to find out how to operate other Loewe
equipment.
Connecting the TV set
Connecting to the mains
Remove the cover for the connections.
Connect the TV set to a 220-240V power outlet:
First plug the small plug of the power cable into the
power connection on the rear of the TV, then plug the
large power plug into a mains power outlet.
Initial installation
AAA
LR03
AAA
LR03
Connecting the antenna
Analogue / DVB-C / DVB-T antenna:
Plug the antenna plug of the antenna or cable system
or the room antenna into the ANT-TV socket.
Satellite antenna, if upgraded:
Connect one antenna plug, for example from the antenna
switch or the LNC of the satellite system, to the ANT SAT
socket.
Replace the cover over the connections.
Receiving coded stations
When using a CA module and a Smart-Card to receive
coded stations, please observe the handling of the CA
module (see page 40).
TV
R
ANT
SAT
ANT-TV
220-240V~
50/60Hz
Connections on the back of the set (see also page 5).
