ASSEMBLY INSTRUCTIONS:
1. Find a clean, level place to begin the assembly of your Air Hockey table. The table will be assembled
upside down and then turned over on its legs once the assembly completed. This game table is heavy, and
turning it over will require at least two strong adults.
2. Remove all the parts from the box and verify that you have all of the listed parts as shown on the parts
identifier below. Carefully cut or tear the four corners of the box so that the bottom of the box can be used
as your work surface.
X 2
X 2
X 1
1
2
3
X 12
A2
X 12
A3
A2 A3
2
2
3
3
1
P18
P17
P3
P19
P7
P4
P1

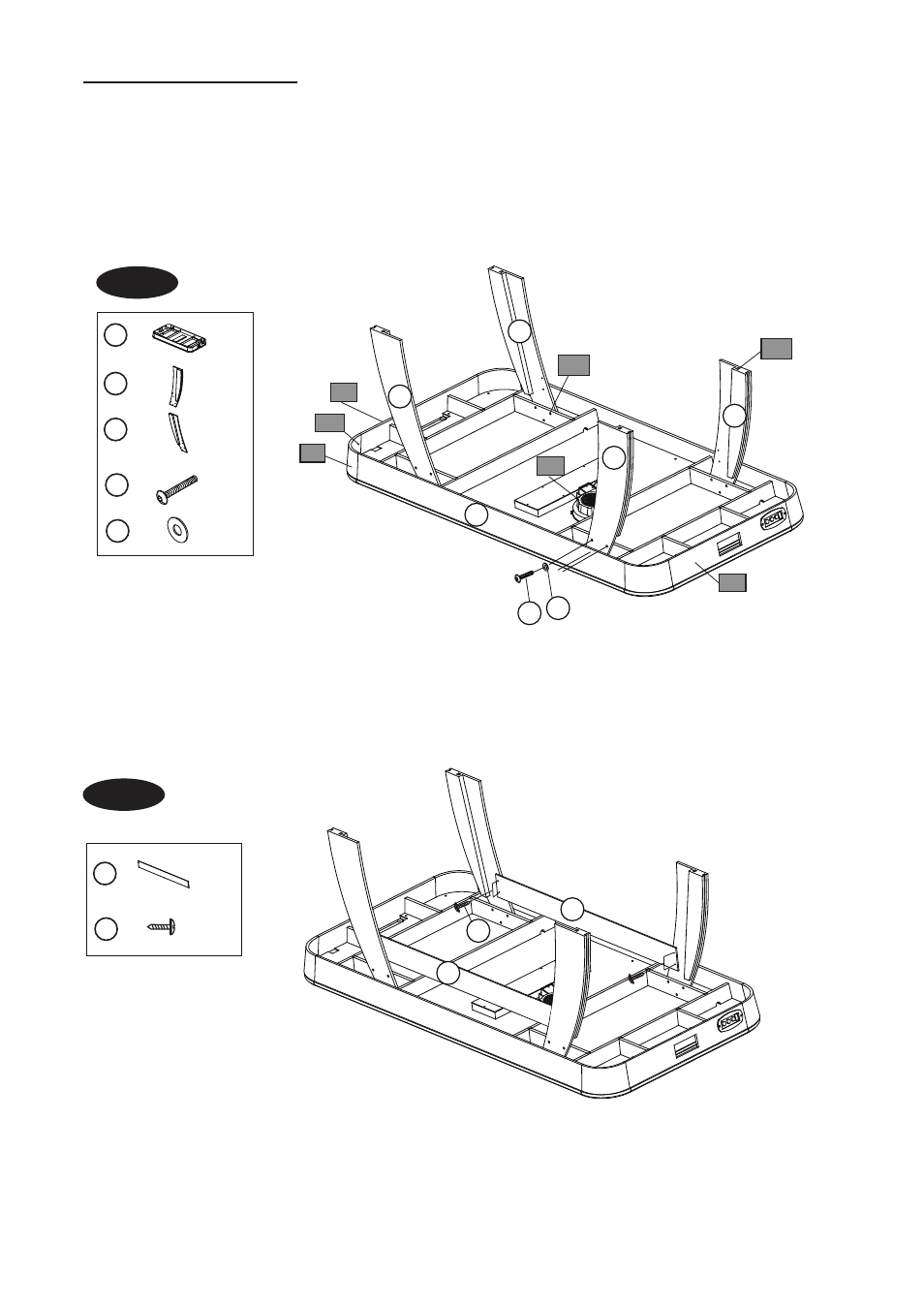

3. Attach the Left Leg (#2) and Right Leg (#3) to the Main Cabinet (#1) using three Bolts (#A2) and
three Washers (#A3) per Leg.
See FIG. 1.
X 2
5
X 8
A4
4. Attach the Side Leg Brace(#5) to the Legs using four Screws (#A4) per Leg Panel.
See FIG. 2.
5
5
A4
