Medal Sports FH1414817 - Manual (Page 8)

www.themdsports.com 1414817
7
(Continued on the next page.)

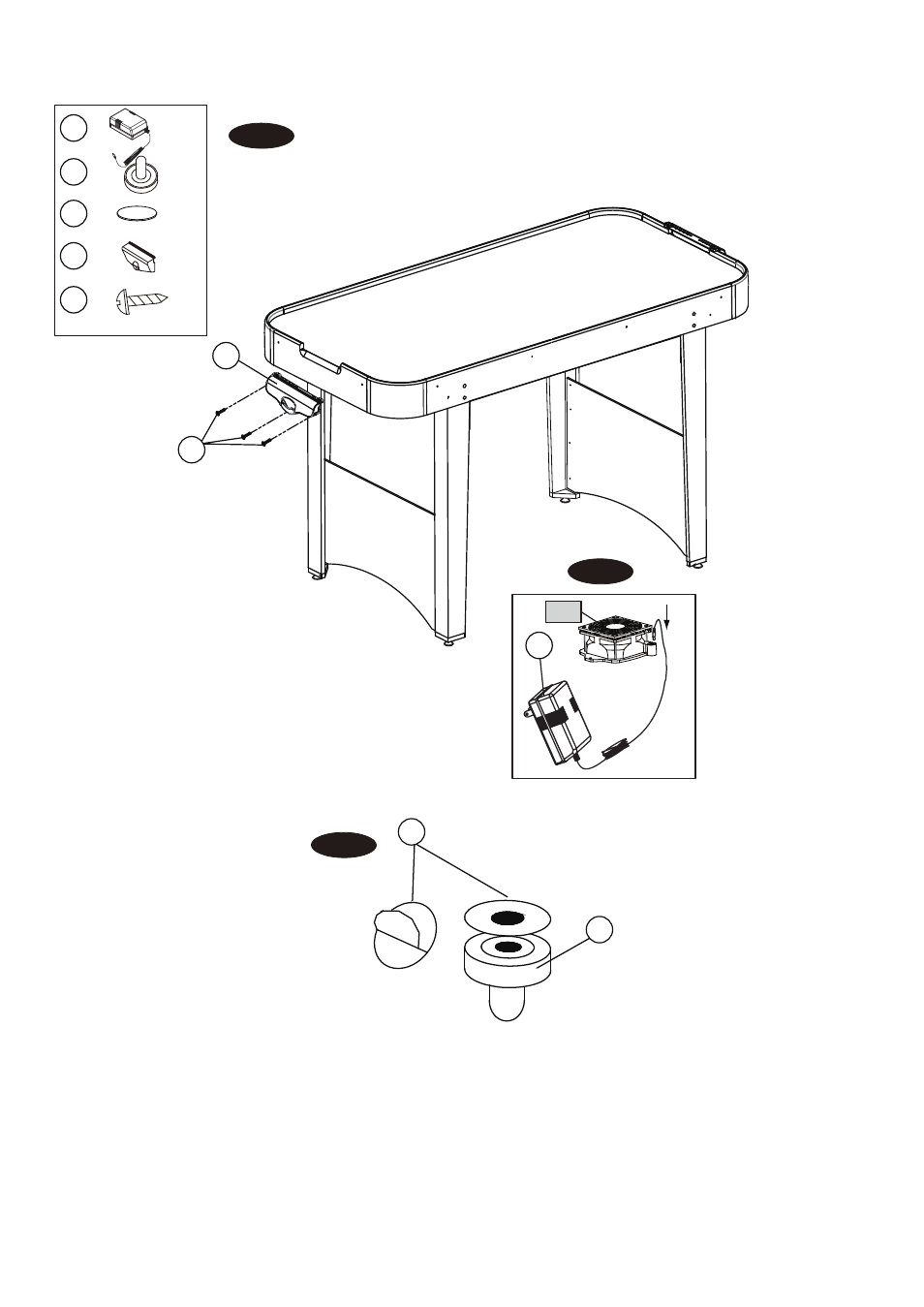

FIG.3
7. Attach the Goal Boxes (#10) to each End Apron using three Screws (#A4). See FIG. 3.
8. Tear off the backside paper of the Felt Pad (#9) and stick them at the bottom of the Pushers (#8). See FIG. 3A.
9. Insert the Adaptor (#6) into the DC Motor (#P1). See FIG. 3B.
8
9
FIG. 3
X 2
X 2
10 X 2
6 X 1
A4 X 6
8
9
FIG. 3A
10
A4
FIG. 3B
P1
6
