6

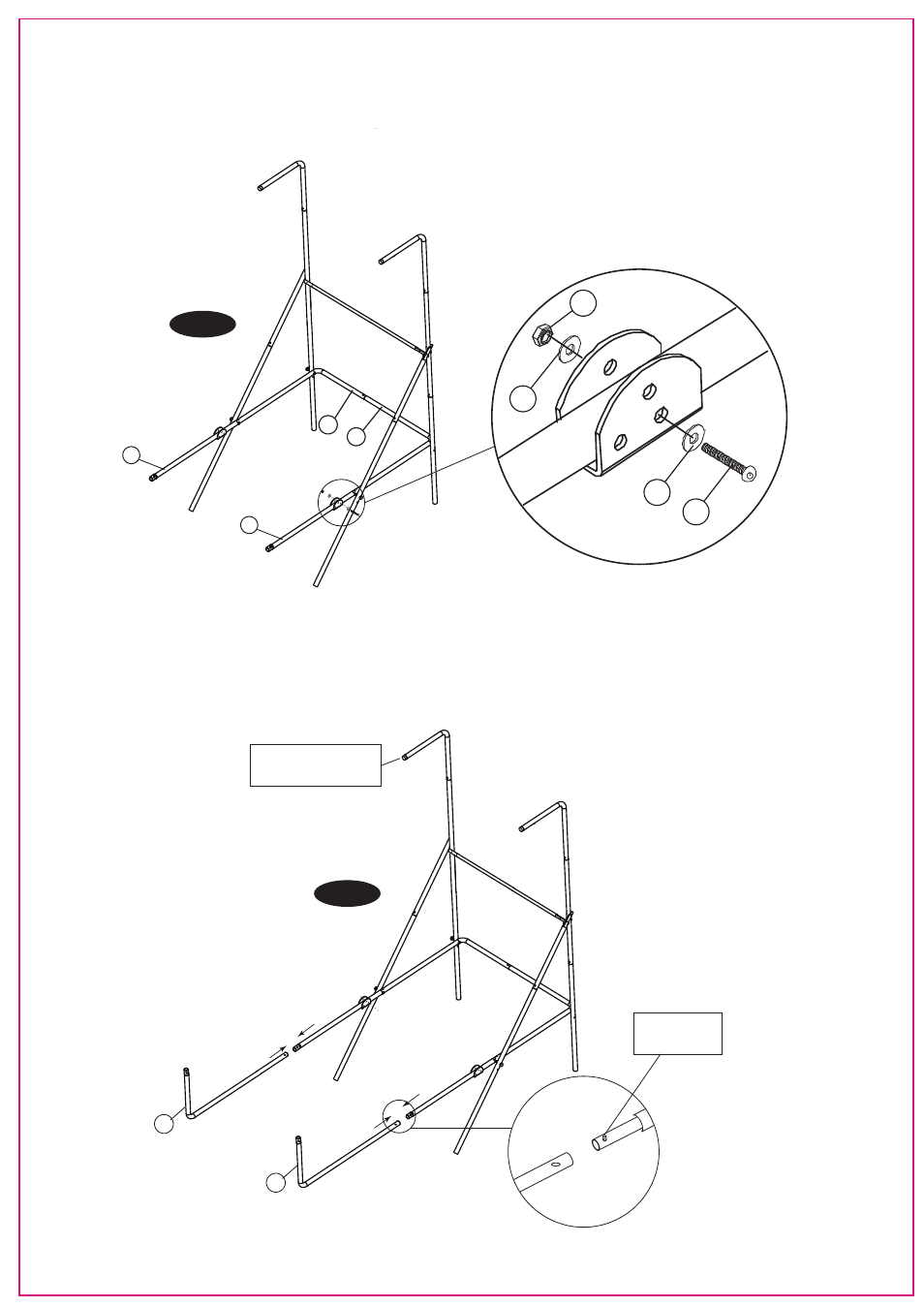

9. Attach the Ramp Tubes(#9) to the Left and Right L Tubes (#5 and #6) using Bolts(#28), Washers(#22)
and Nuts(#27) as shown in FIG 6.
FIG. 6
10. Attach the Ramp L Tubes(#10) to the Ramp Tubes(#9) using spring lock as shown in FIG 7.
FIG. 7
5
6
9
9
FIG. 6
FIG. 7
10
10
#35
Plastic Pole Insert
#34
Spring Lock
22
27
22
28
