Medal Sports FH1454818 - Manual (Page 12)

18
19
19
FIG. 10A
FIG.9

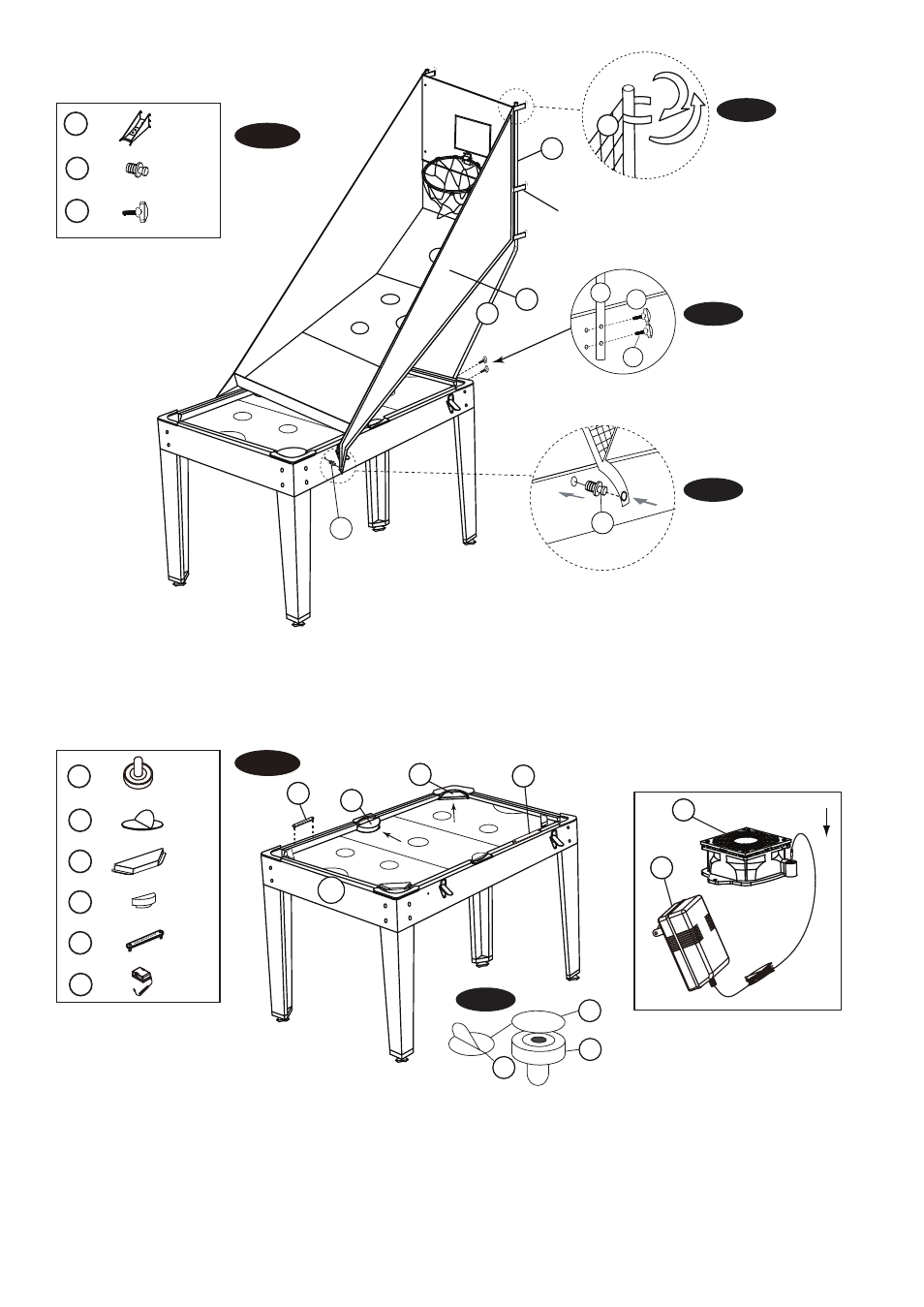

21. Attach the Crooked Pole (#26) to the end of Billiard Table using two Butterfly Bolts (#A11) per Crooked Pole.
See FIG. 9A.
22. Attach the Basketball Return Net (#30) to the Short Pole (#27) using the Velcro strips. See FIG. 9B.
Secure the bottom of it to the Billiard Table using two Rivet Plugs (#38). See FIG. 9C.
www.themdsports.com 1454818
11
(Continued on the next page.)
30
38
27
26
Velcro Strap
5
26
A11
FIG.9B
30
38
FIG.9A
FIG.9C
X 1 30
X 2 38
X 4
A11
FIG.10
23. Place the Side Stop Boards (#49) and End Stop Boards (#48).
24. Attach the Slide Socrer (#50) to the Hockey Mainframe (#5).
25.Tear off the backside paper of the Felt Pad (#19) and stick them at the bottom of the Pushers (#18).
See FIG. 10A. And insert the Adaptor (#53) into the DC Jack on the Motor (#52).
X 2 18
X 2 19
X 4 48
X 2 49
X 1 53
X 2 50
53
52
This power unit is intended to
be correctly orientated in a
vertical or floor mount position.
48
49
50
FIG. 9
FIG. 10
50
5
