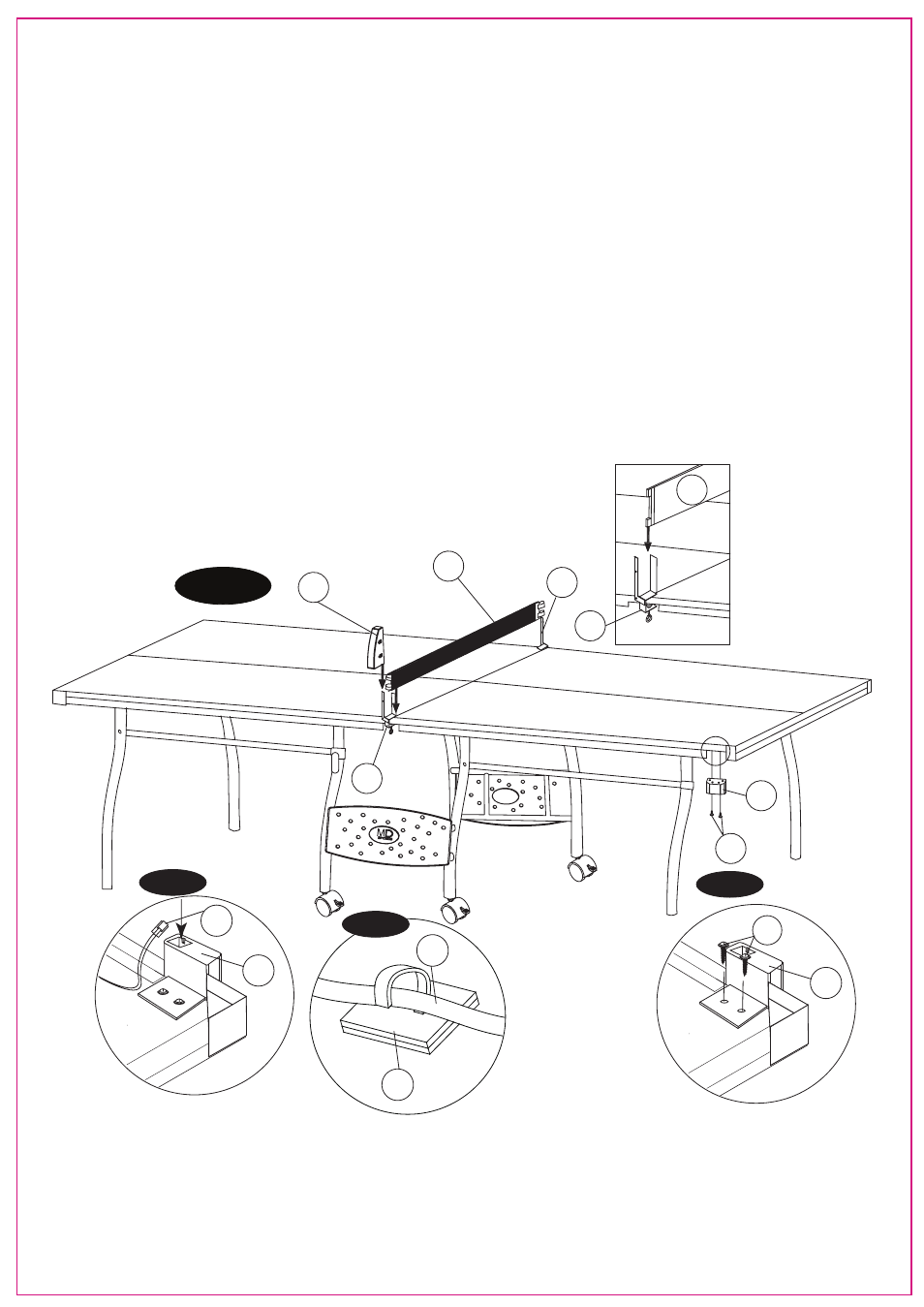

FIG.7
10
26. Attach the Net Post A & B (#16 & #31) at the middle of the table and slide the net over the post. Stretch the Net (#15)
across the center of the table and slip the net over the post on the opposite side. See FIG. 7.
27. Place the Control Box (#37) at a player’s left corner and install it between the Apron Corner and Short Side Apron
(#34) using two Screws (#18). See FIG. 7A.
28. Place the Electronic Scorer (#28) onto the Net Post - B(#31) . See FIG. 7.
29. From underneath the table, insert Connecting Wire (#29) into the Electronic Scorer (#28) and the Control Box (#37).
See FIG. 7B.
30. Peel the wax paper off the Double Side Tape (#32) and attach it to the Connecting Wire (#29) at the underside of the
table. See FIG. 7C
FIG. 7
FIG. 7A
37
18
Underside
table surface
37
29
FIG. 7B
Underside
table surface
32
29
FIG. 7C
31
31
15
15
16 28
37
18
