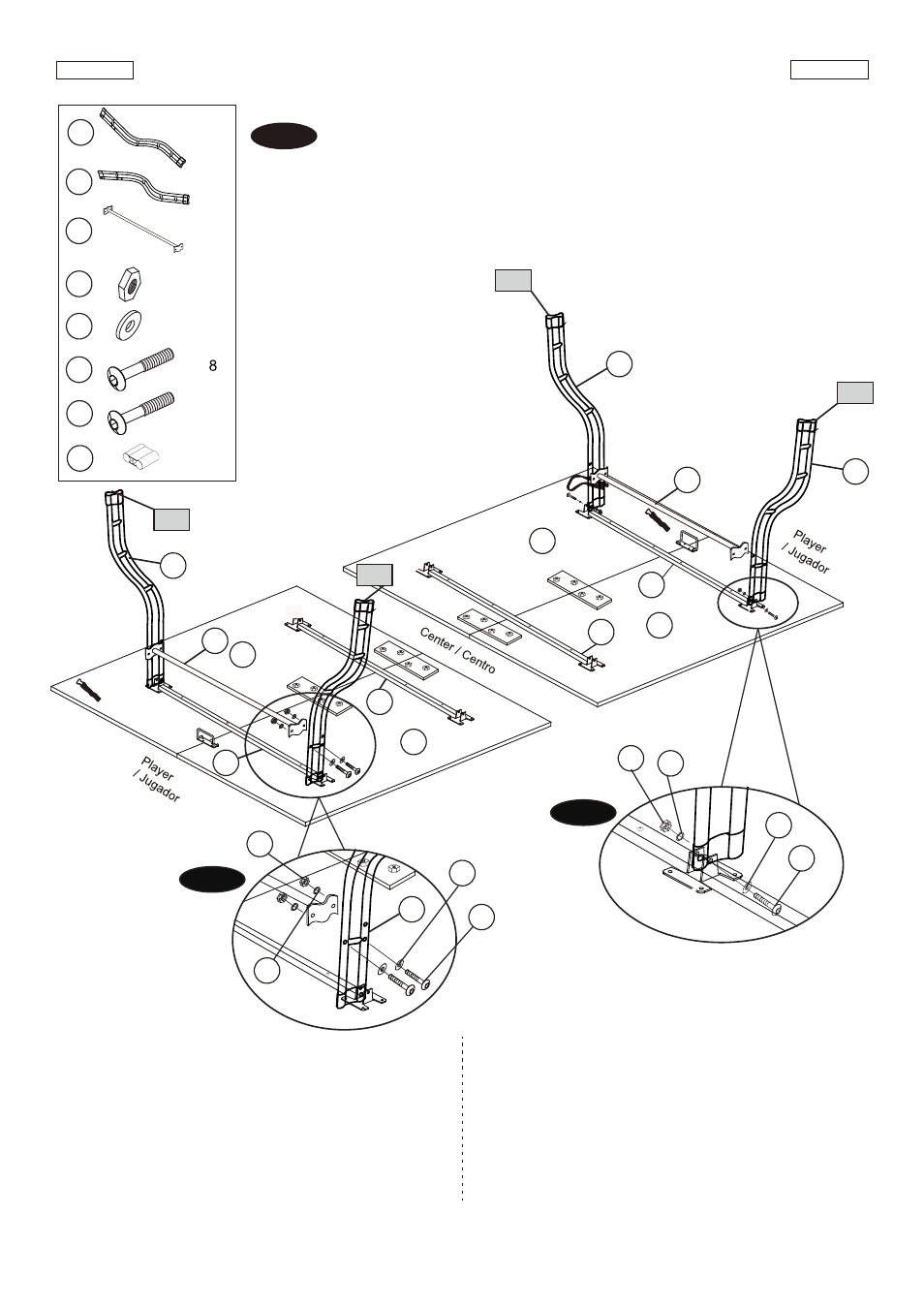

FIG.3
8. Attach Legs (#3 & #4) to Table Surface (#1 and #2)
using one Bolt (#A7), two Washers (#A4) and one
Nut (#A3) per Leg
. See FIG. 3A.
9. Attach a Linkage Tube - A (#10) to the legs (#3 & #4)
using two Bolts (#A6), four Washers (#A4) and two Nuts
(#A3) per Linkage Tube - A.
See FIG. 3B.
FIG.3
8. Adjunte la Pierna Curvada (#3 & #4) a la Superficie de
Mesa (#1 y #2) usando 1 Cerrojo (#A7), 2 Arandelas
(#A4) y 1 Tuerca (#A3) por Pierna.
Vea la FIG. 3A.
9. Adjunte el Tubo de Conexión - A (#10) a la Pierna
(#3 & #4) usando 2 Cerrojos (#A6), 4 Arandelas (#A4) y
2 Tuercas (#A3) por Tubo de Conexión - A.
Vea la FIG. 3B.
FIG. 3
FIG. 3A
FIG. 3B
