Page 56: Overview
RIGOL
8
MSO1000Z/DS1000Z Quick Guide
Front
Panel
Overview

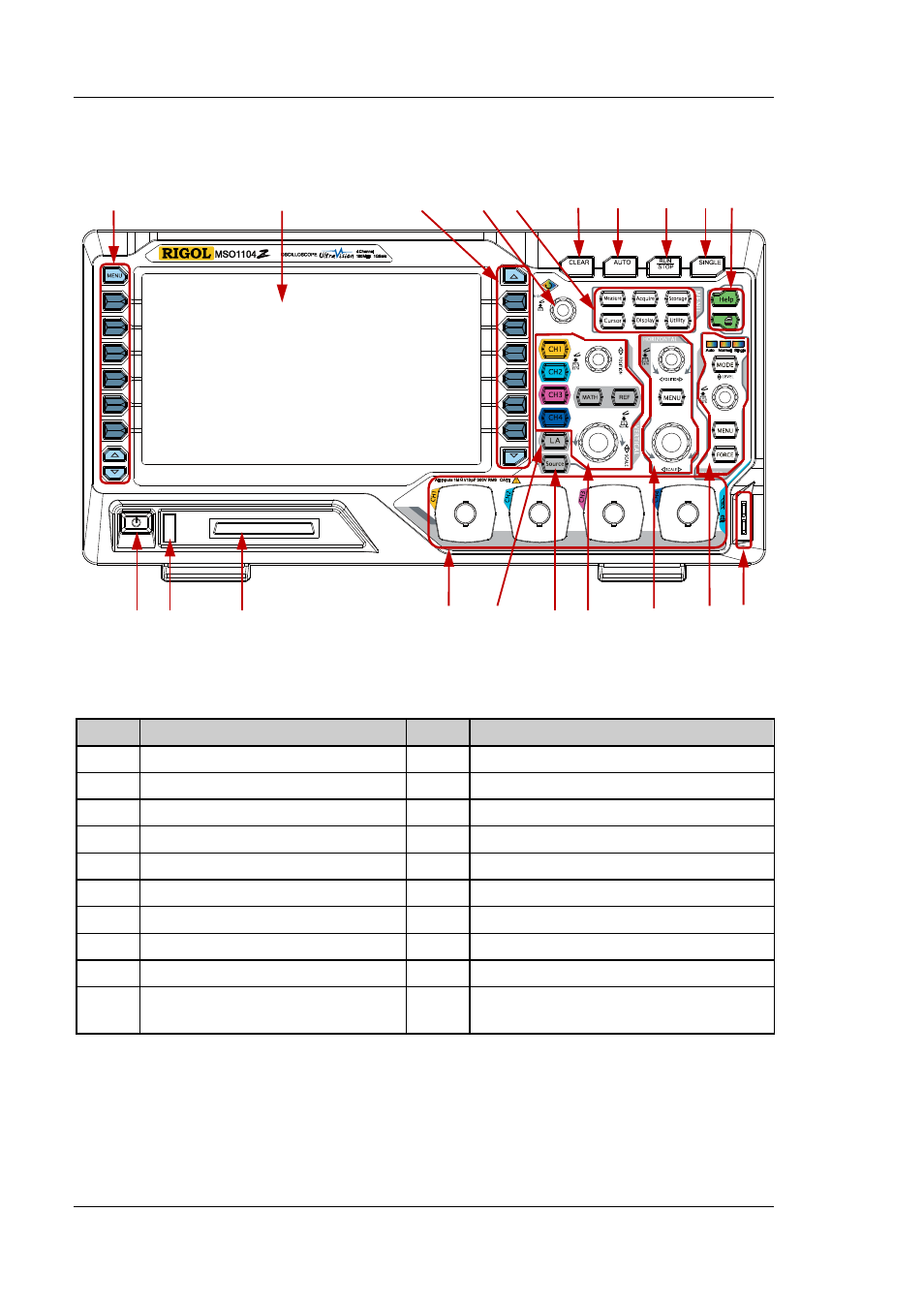

Figure 10 Front Panel Overview
Table 1 Front Panel Description
No.
Description
No.
Description
1
Measurement Menu Softkeys 11
Power Key
2
LCD
12
USB Host Interface
3
Function Menu Softkeys
13
Digital Channel Input Interface
[1]
4
Multifunction Knob
14
Analog Channel Input Interface
5
Common Operation Keys
15
Logic Analysis Control Key
[1]
6
CLEAR
16
Signal Source
[2]
7
AUTO
17
VERTICAL Control
8
RUN/STOP
18
HORIZONTAL Control
9
SINGLE
19
TRIGGER Control
10
Help/Print
20
Probe Compensation Signal
Output Terminal/Ground Terminal
Note
[1]
: Only applicable to MSO1000Z and DS1000Z Plus.
Note
[2]
: Only applicable to digital oscilloscopes with source channels.
3 4 5 6 7 8 9 10
1 2
11 12 13 14 15 16 17 18 19 20
