ROCKINGER RO 810 D User Manual
Page 4
ROCKI NG E R
Member of JOST-World
15
1
1.. F
Fiittttiin
ng
g
R
RO
O
i
i
8
81
10
0 D
D

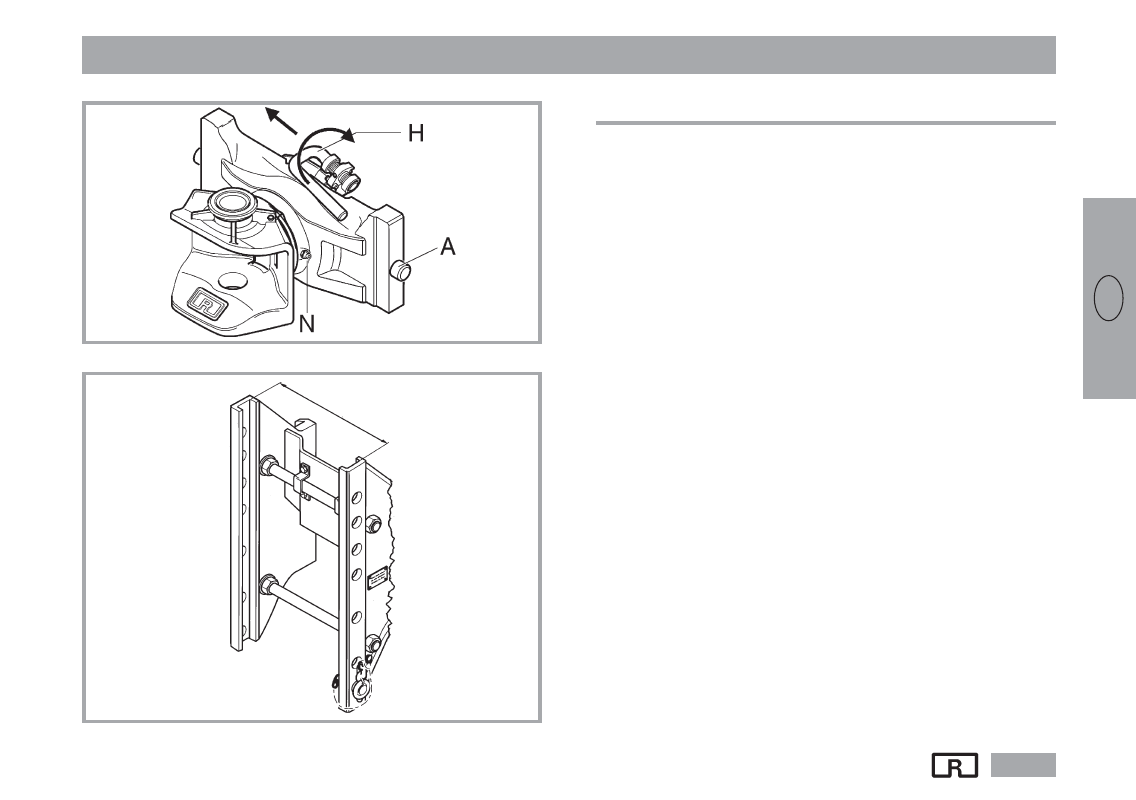

1. Fitting
The coupling is supplied in a ready-to-use condition.
The relevant regulations must be observed for installation
(UVV (German accident protection regulations) 3.2 for agricultural
and forestry vehicles)
x Inspection of the anti-slip device in the trailer block
(D) (s. Abb. 2)
x Insert the coupling from above into the guide rails
x Attention: Keep a good grip on the coupling!
x Turn hand grip (H) of the cam plate upwards and press to the left:
the arresting bolts (A) move inwards (see Fig. 1)
x Place the coupling at the desired height in the trailer block
x Hold the coupling in place and at the same time turn the hand grip (H)
back to the right to allow it to engage
x Release the hand grip in the resting position (see Fig. 1)
Inspection:
In the secured position it should only be possible to move
the hand grip (H) about 4 mm to the left
Attention:
Do not use any aids to operate the height adjustment and
avoid impact on the cam plate: Risk of damage!
Attention: Only use ROCKINGER single hand pins and Fendt pins
according to the general operation permit!
In the case of non-observance, the model permit lapses.
1
S
w
2
GB
