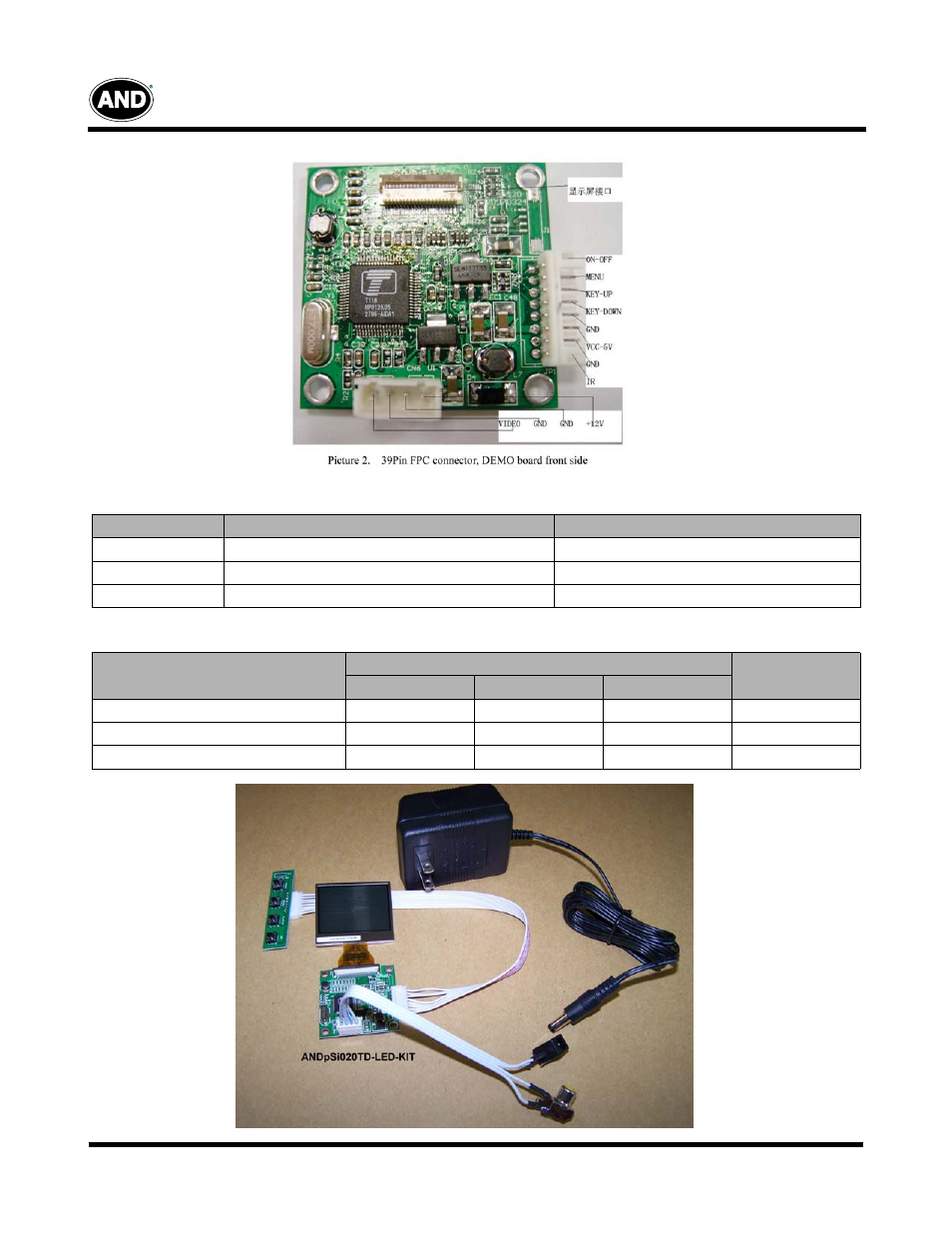

ID Input/Output Remarks
CN6 CVBS signal & Power Input Suggest to use stabilized 12 V DC
JP1 OSD control connector
CN1 TFT panel input connector Molex 51374-4073
Electrical Parameters
Item
Value
Unit
Min. Typ. Max.
VCC 6 12 15 V
I Total 110 110 110 mA
I Display 60 60 60 mA
ANDpSi020TD-LED-KIT
