Magnetic Products MH-400 - Manual (Page 2)

Diagram

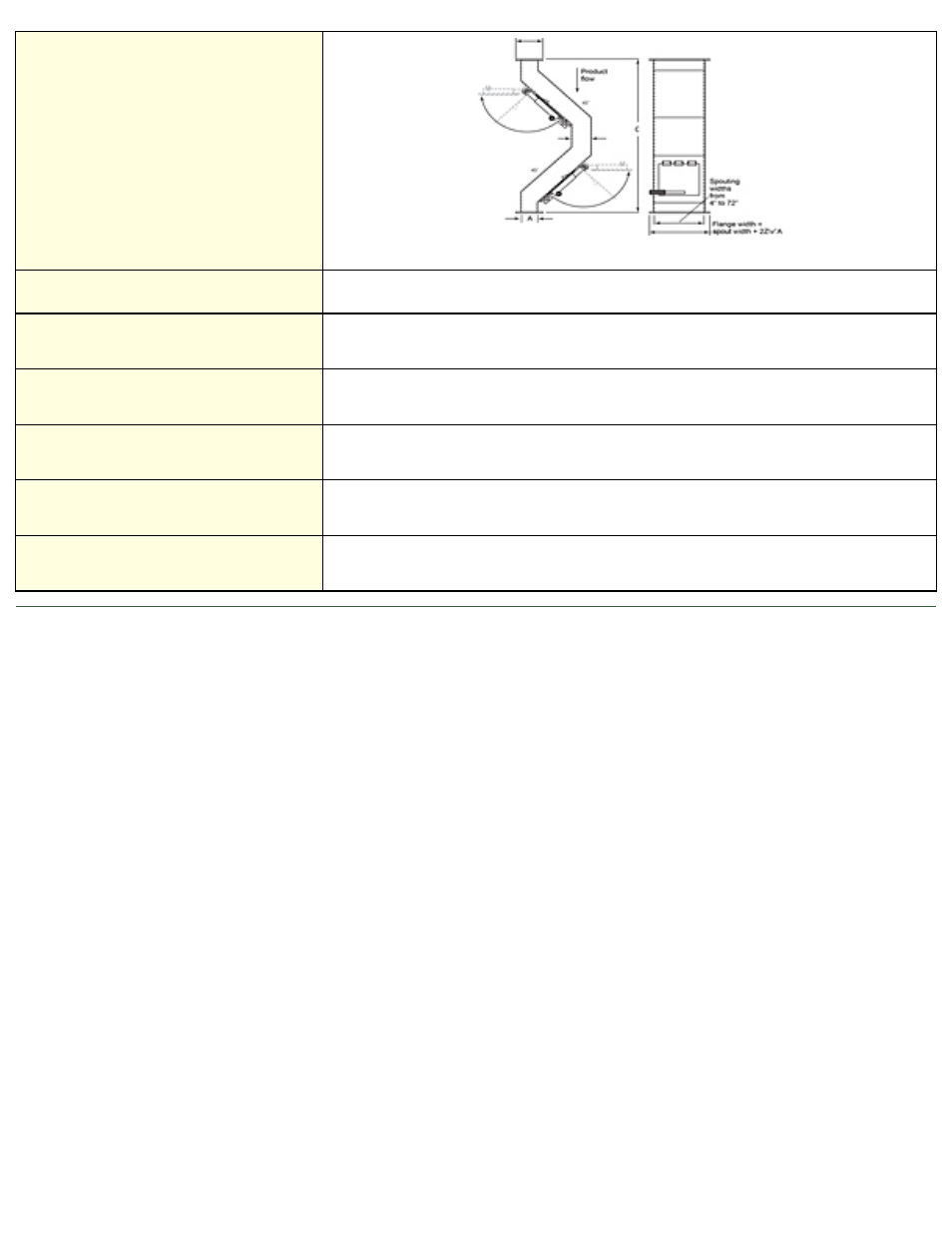

Magnetic Hump Separators (MH Series) Diagram
Plate Magnet Series
400
Spout Size "A"
6 in
152 mm
Flange Length "B"
10.25 in
260 mm
Approx. Overall Height "C"
42 in
1067 mm
Effective Magnetic Field Depth
5 in
127 mm
Weight
276 lb
126 kg
4/20/2014 | Page 2 of 2
