SPECIFICATIONS

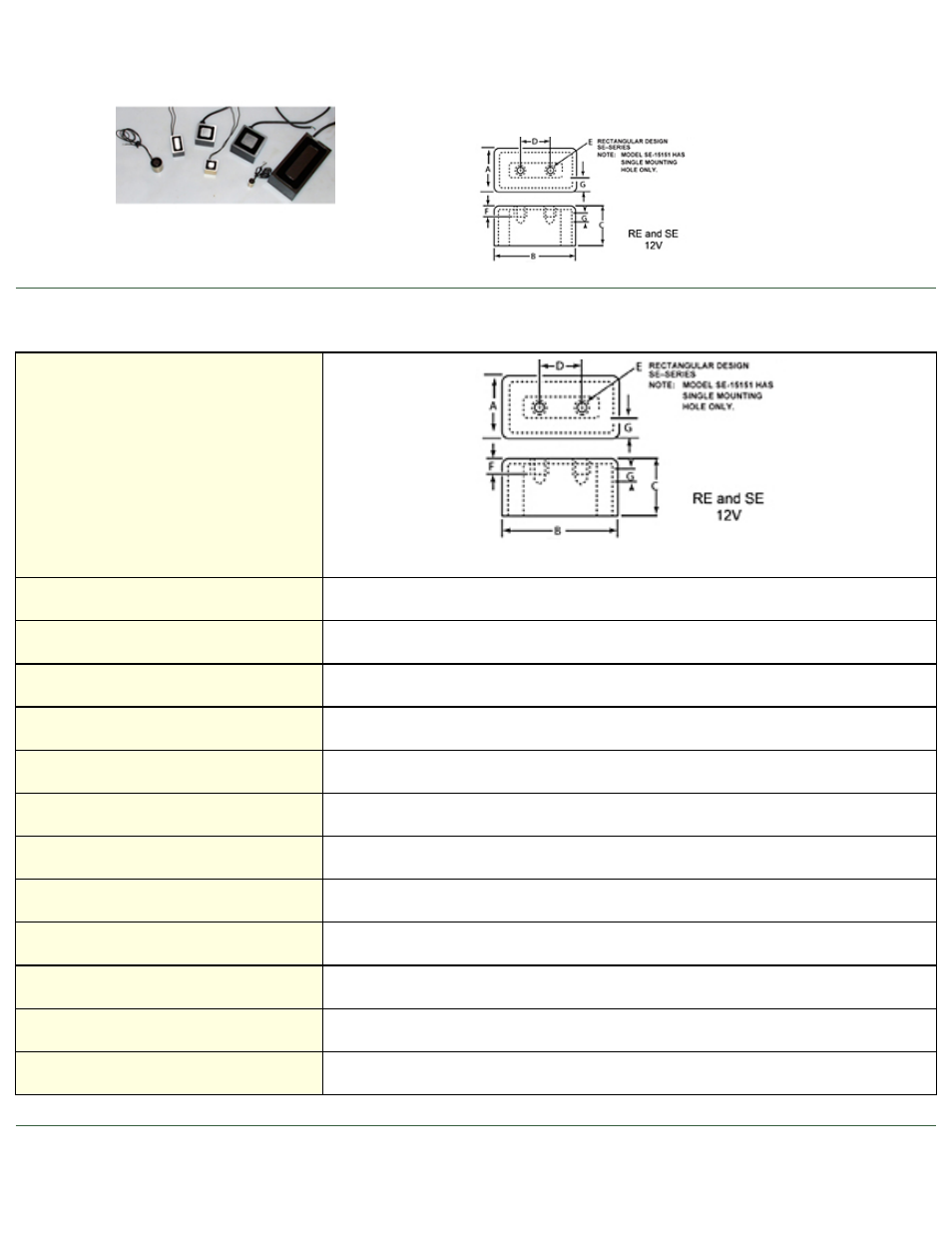

Diagram
12V &24V Rectangular Island Pole Electromagnets (RE &SE Series) Diagram
Width "A"
2.5 in
Length "B"
2.5 in
Height "C"
1.50 in
Thread "E"
0.250-20
Depth "F"
0.500 in
Lead "G"
0.500 in
Amps
0.583
Wattage
14
Voltage
24 V
Ohms
41.1
Max. Pull 1
300 lb
Weight
2 lb
1 Pull test is based on 2" thick flat mild steel. For safe RE and SE application use, pull values should be de-rated by 50%.
