Chapter 2. Installing Your 3ware RAID Controller

24

3ware 9650SE Serial ATA RAID Controller Installation Guide

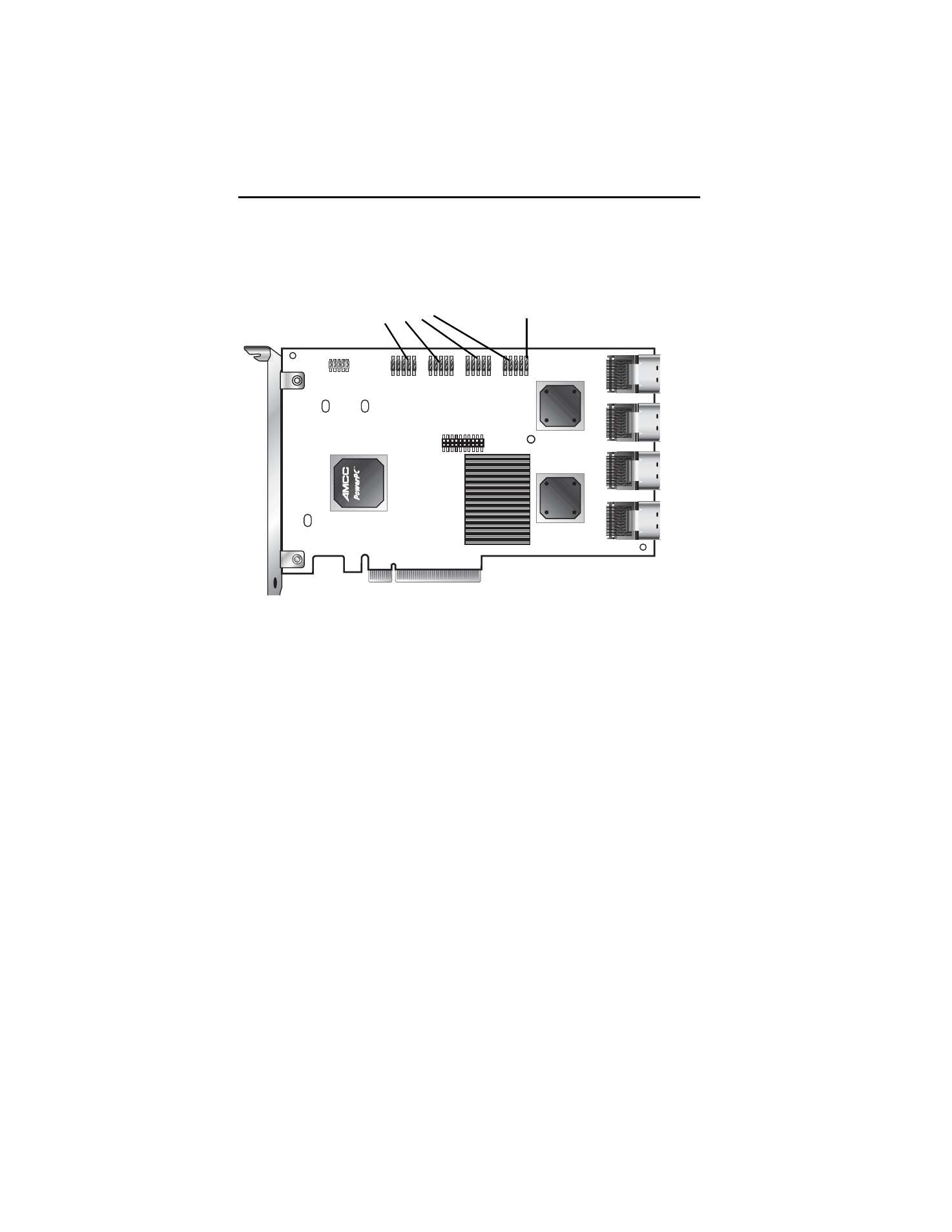

Figure 19. 16-Port 3ware 9650SE-16ML Serial ATA RAID Controller

Overall LED drive status indicator is the

right-most LED header pin pair on each

LED connector (J7, J8, J9, J1). The

anode is the lower of the two pins and

the cathode is the upper.

LED indicators for individual drives

J7 is for drives 0, 1, 2, 3 (left to right)

J8 is for drives 4, 5, 6, 7 (left to right)

J9 is for drives 8, 9, 10, 11 (left to right)

J1 is for drives 12, 13, 14, 15 (left to right)
