Gaming Monitor User Guide
Installing a Wall-Mount Bracket (Optional)
Use only the 100 x 100 mm wall mount kit recommended by the
manufacturer.

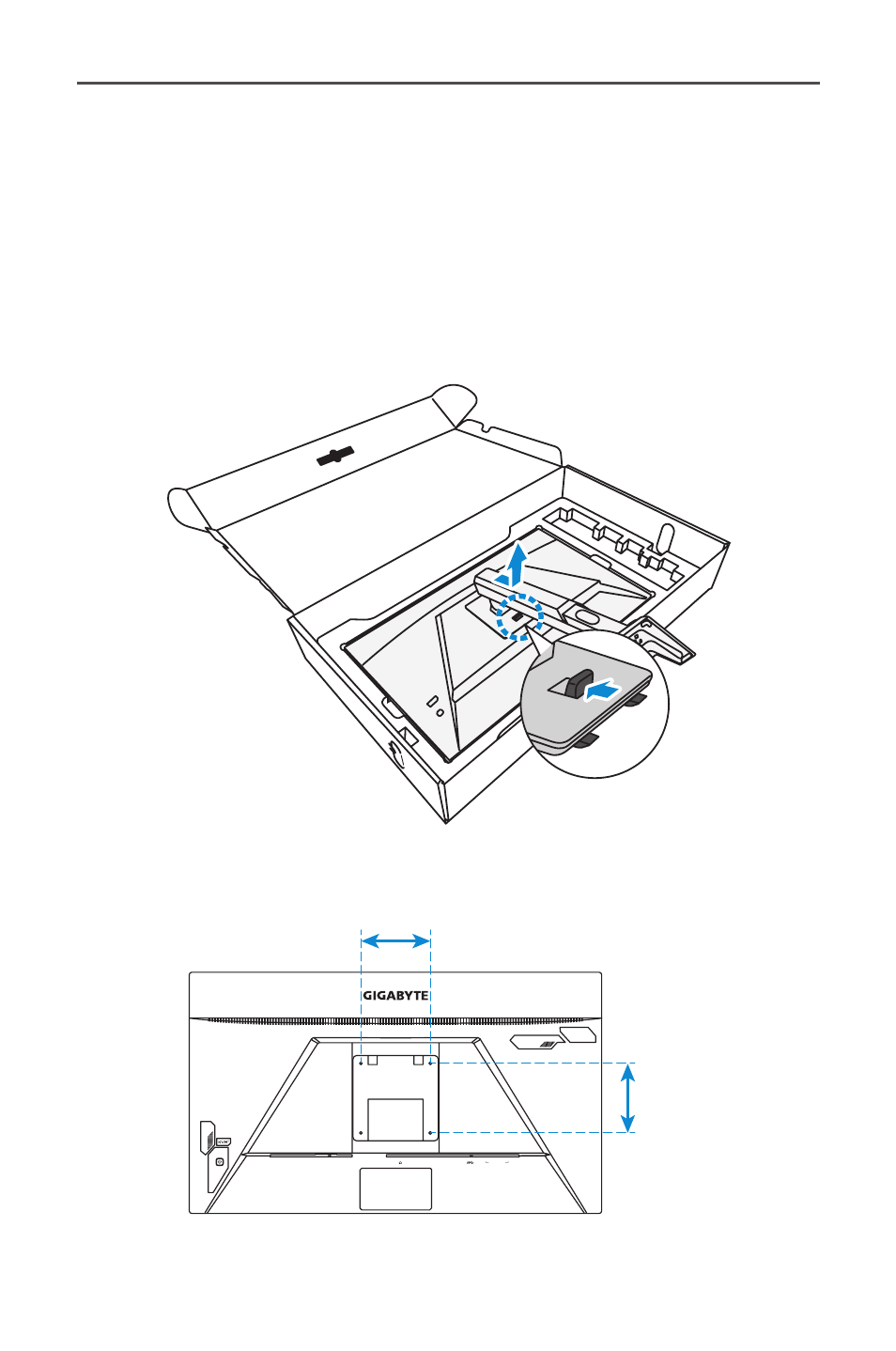

1. Place the monitor on the lower EPS foam, with the screen facing
down.
2. While pushing the locking latch forward, slide the stand backward to
release the upper hooks from the mounting slots on the rear of the
monitor. Then remove the stand.
3. Attach the mounting bracket to the mounting holes at the rear of
the monitor. Then use the screws to secure the bracket in place.
DP HDMI-2 TYPE-C USB 3.0 HDMI-1
100 mm
100 mm
Note: To mount the monitor on the wall, refer to the installation guide that is
included in the wall-mount bracket kit.
