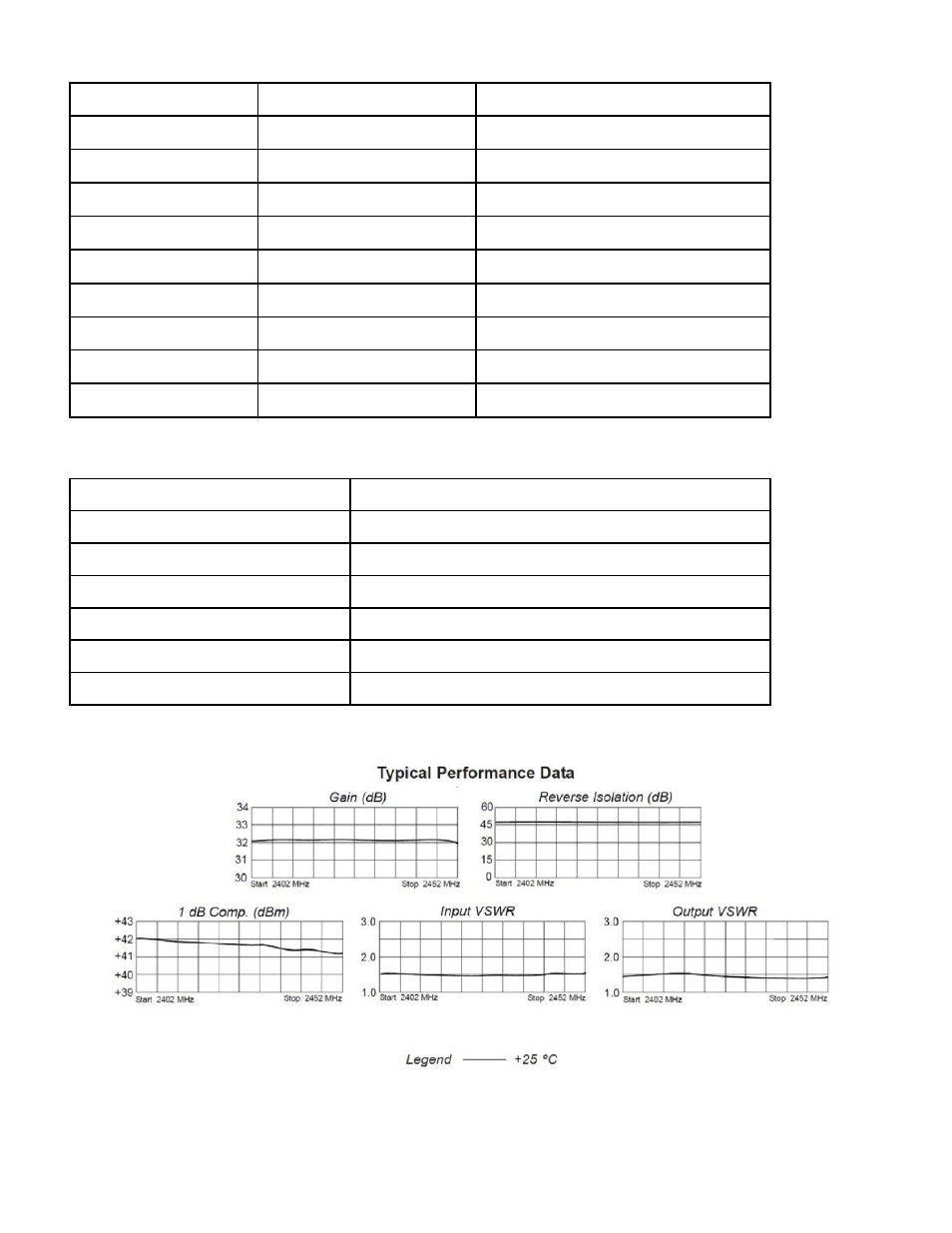

Specifications
CHARACTERISTIC TYPICAL MIN/MAX
Ta= 25 ºC Ta = -55 ºC to +85 ºC
Frequency 2402- 2452 MHz 2302- 2452 MHz
Gain (dB) 32 33 Min.
Power @ 1 dB
+42 +40 Min.
Comp. (dBm)
Reverse
45 40 Min.
Isolation (dB)
VSWR In 1.5:1 2.0:1 Max.
Out 1.5:1 2.0:1 Max.
Power Vdc +28 +28
m A 1700 1800 Max.
Maximum Ratings
Ambient Operating Temperature -55ºC to +125 ºC
Storage Temperature .-62ºC to +150 ºC
Case Temperature +125 ºC
DC Voltage +30 Volts
Continuous RF Input Power +13 dBm max
Short Term RF Input Power 50 Milliwatts (1 Minute Max.)
Maximum Peak Power 0.5 Watt (3

sec Max.)
