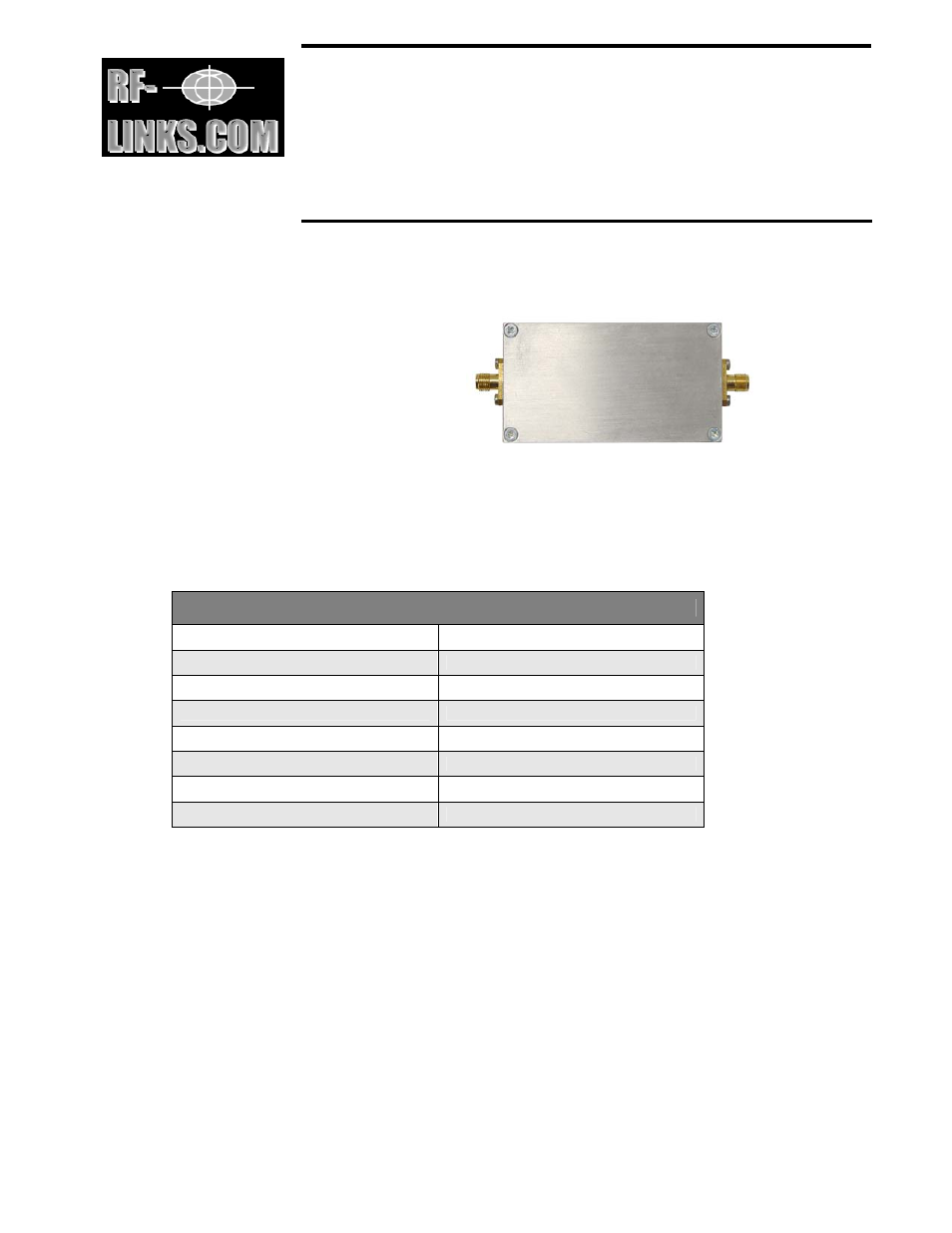

AMP-015G
LOW NOISE WIDEBAND
AMPLIFIER 100 MHz- 12 GHz
This is an excellent small amplifier for any receiver
(not for transmitters). It will increase a gain of any
signal from 100 MHz- 12 GHz range. This PC board
amplifier will give you an extra 12-15 dB gain. The
output connector is a male SMA type. DC power is 12
V/ 50 mA. This small amplifier has an extremely low
noise (<0.35dB / 12 GHz)
Dimensions:
2.8" X1.5 " X 0.75 "
Technical Specifications
FREQUENCY RANGE:
100 MHz – 12 GHz
IMPEDANCE:
50 ohm IN/OUT
MAX ALLOWED POWER INPUT
1 mW
GAIN
16 dB /200 MHz, 12 dB/12 GHz
DC POWER:
12 V /0.05 A
NOSE FACTOR:
<0.35 dB / 12 GHz
BOARD SIZE
2.8" X1.5 " X 0.75 "
CURRENT CONSUMPTION:
0.05 A max.
