65BDL3510Q_75BDL3510Q_86BDL3510Q
12

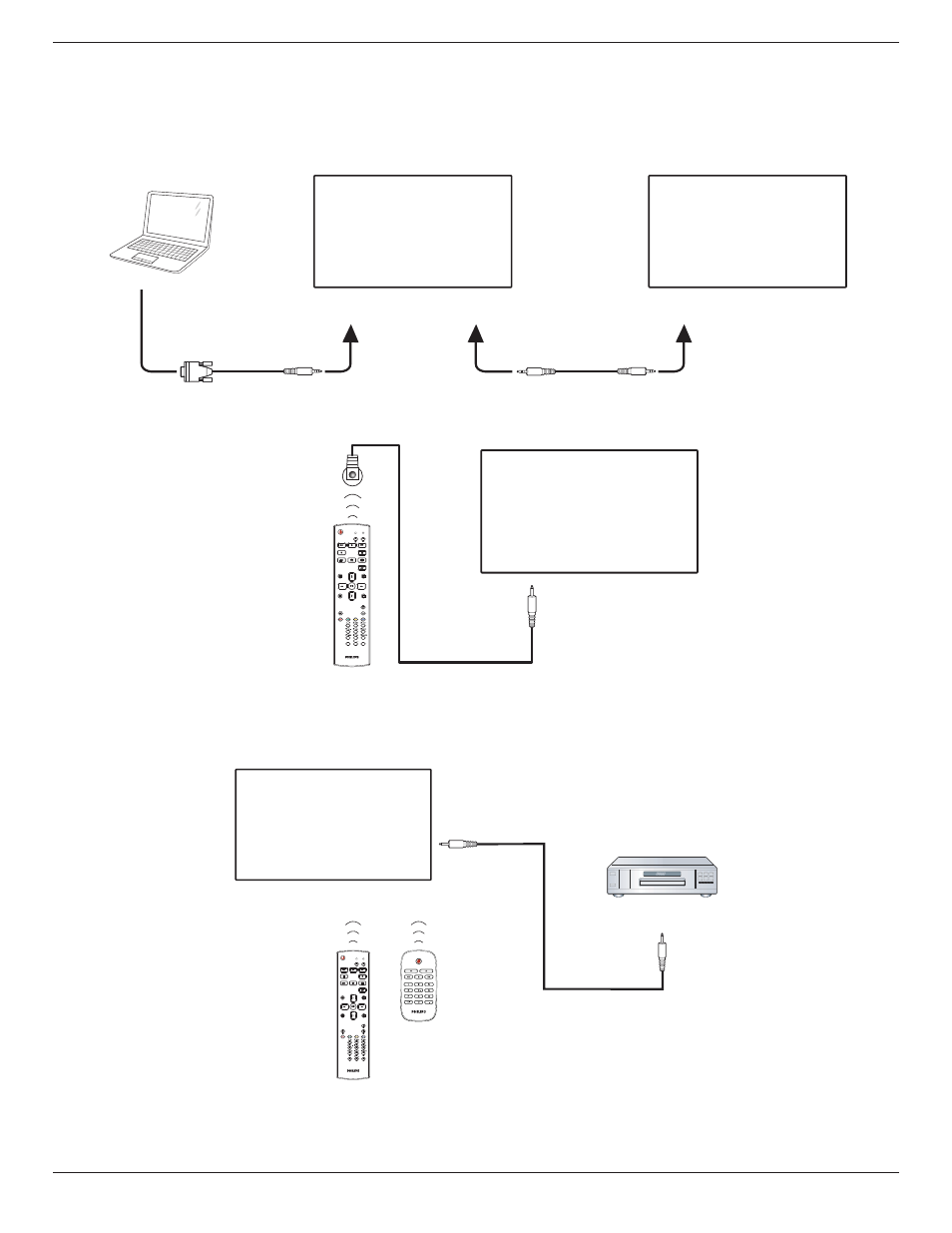

3.3. Connecting Multiple Displays in a Daisy-chain Configuration
You can interconnect multiple displays to create a daisy-chain configuration for applications such as a menu board.
3.3.1. Display control connection
Connect the [RS232 OUT] connector of DISPLAY 1 to the [RS232 IN] connector of DISPLAY 2.
DISPLAY 1
DISPLAY 2
PC
[RS-232C IN]
[RS-232C]
[RS-232C OUT]
[RS-232C IN]
3.4. IR connection
FORMAT
SOURCE
INFO
LIST
OPTIONS
ADJUST
VOL
NORMAL
ID
ID SET
ENTER
DISPLAY 1
[IR IN]
External
IR Receiver
NOTE:
This display’s remote control sensor will stop working if the [
IR IN
] is connected.
3.5. IR Pass-through Connection
DVD / VCR / VCD
(DVD / VCR / VCD)
Remote Control
FORMAT
SOURCE
INFO
LIST
OPTIONS
ADJUST
VOL
NORMAL
ID
ID SET
ENTER
[IR OUT]
[IR IN]
